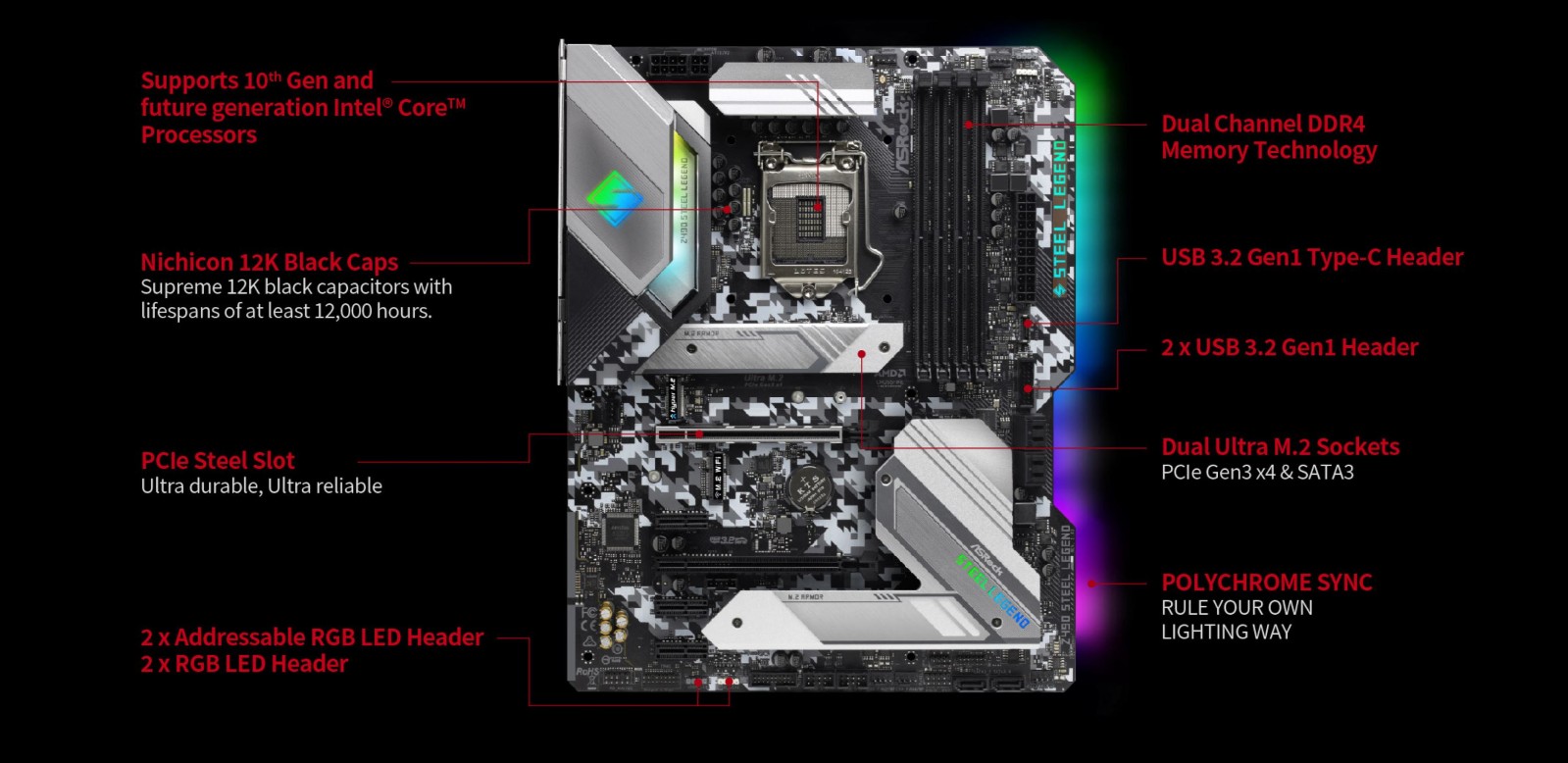

ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

ASRock Z490 Steel Legend LGA 1200 ATX Motherboard
  • ASRock Z490 Steel Legend LGA 1200 ATX Motherboard
  • ASRock Z490 Steel Legend LGA 1200 ATX Motherboard
  • ASRock Z490 Steel Legend LGA 1200 ATX Motherboard
$269.0
RRP:$369.0    Save $100.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-3 Days excluding Weekends

  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Click & Collect.

Specifications

  • Product Name:
    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard
  • Model Number:
    Z490 Steel Legend
  • Brand:
  • Manufacturer Warranty:
    2 Year
  • Description

     ASRock Z490 Steel Legend LGA 1200 ATX Motherboard


    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    ASRock Z490 Steel Legend LGA 1200 ATX Motherboard

    SPECIFICATIONS:

    Unique Feature

    ASRock USB 3.2 Gen2

    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

    ASRock Super Alloy

    - XXL Aluminum Alloy Heatsink

    - Premium 60A Power Choke

    - 50A Dr.MOS

    - Nichicon 12K Black Caps (100% Japan made high quality conductive   polymer capacitors)

    - I/O Armor

    - Shaped PCB Design

    - Matte Black PCB

    - High Density Glass Fabric PCB

    - 2oz Copper PCB 2.5G LAN

    ASRock Steel Slot

    ASRock Full Coverage M.2 Heatsink

    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

    ASRock Ultra USB Power

    ASRock POST Status Checker (PSC)

    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

    ASRock Live Update & APP Shop

    Chipset



    - Intel® Z490

    Memory

    - Dual Channel DDR4 Memory Technology

    - 4 x DDR4 DIMM Slots

    - Supports DDR4 4266+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) /   3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133   non-ECC, un-buffered memory

    - Supports ECC UDIMM memory modules (operate in non-ECC mode)

    - Max. capacity of system memory: 128GB**

    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    - 15μ Gold Contact in DIMM Slots

    BIOS

    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support

    - ACPI 6.0 Compliant wake up events

    - SMBIOS 2.7 Support

    - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCIO, VCCST, VCCSA   Voltage Multi-adjustment

    Graphics

    - Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265   10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**

    - Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5,   Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable   Graphics, OpenCL 2.1

    - Display & Content Security: Rec. 2020 (Wide Color Gamut),   Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc

    - Dual graphics output: support HDMI and DisplayPort 1.4 ports by   independent display controllers

    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @   30Hz

    - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304)   @ 60Hz

    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit   Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

    - Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports

    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort   1.4 Ports

    Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio   Codec)

    - Premium Blu-ray Audio support

    - Supports Surge Protection

    - 110dB SNR DAC with Differential Amplifier

    - PCB Isolate Shielding

    - Individual PCB Layers for R/L Audio Channel

    - Gold Audio Jacks

    - Nahimic Audio

    LAN



    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

    - Dragon RTL8125BG

    - Supports Dragon 2.5G LAN Software

    - Smart Auto Adjust Bandwidth Control

    - Visual User Friendly UI

    - Visual Network Usage Statistics

    - Optimized Default Setting for Game, Browser, and Streaming Modes

    - User Customized Priority Control

    - Supports Wake-On-LAN

    - Supports Lightning/ESD Protection

    - Supports Energy Efficient Ethernet 802.3az

    - Supports PXE

    Slots

    - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1);   dual at x16 (PCIE1) / x4 (PCIE3)*

    - 3 x PCI Express 3.0 x1 Slots

    - Supports AMD Quad CrossFireX™ and CrossFireX™

    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and   Intel® CNVi (Integrated WiFi/BT)



    Storage

    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID   5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*

    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2   SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110   M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32   Gb/s)**

    Connector

    - 1 x SPI TPM Header

    - 1 x Power LED and Speaker Header

    - 2 x RGB LED Headers*

    - 2 x Addressable LED Headers**

    - 1 x CPU Fan Connector (4-pin)***

    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed   Control)****

    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed   Control)*****

    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

    - 1 x Front Panel Audio Connector

    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock   Thunderbolt™ 3 AIC R2.0 Card only)

    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z490)   (Supports ESD Protection)

    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia   ASM1074 hub) (Supports ESD Protection)

    - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z490) (Supports   ESD Protection)

    Rear Panel I/O

    - 2 x Antenna Ports

    - 1 x PS/2 Mouse/Keyboard Port

    - 1 x HDMI Port

    - 1 x DisplayPort 1.4

    - 1 x Optical SPDIF Out Port

    - 2 x USB 2.0 Ports (Supports ESD Protection)

    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD   Protection)

    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD   Protection)

    - 2 x USB 3.2 Gen1 Ports (Intel® Z490) (Supports ESD Protection)*

    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front   Speaker / Microphone (Gold Audio Jacks)

    Software and UEFI

    Software

    - ASRock Motherboard Utility (A-Tuning)

    - ASRock Dragon 2.5G LAN Software

    - ASRock Polychrome SYNC*

    UEFI

    - ASRock EZ Mode

    - ASRock Full HD UEFI

    - ASRock My Favorites in UEFI

    - ASRock Instant Flash

    - ASRock Internet Flash

    - ASRock Easy RAID Installer

    Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), Google   Chrome Browser and Toolbar

    Accessories

    - Quick Installation Guide, Support CD

    - 2 x SATA Data Cables

    - 4 x Screws for M.2 Sockets

    - 2 x Standoffs for M.2 Sockets

    Hardware monitor

    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,   CPU/Water Pump, Chassis/Water Pump Fans

    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump   Fans

    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH   1.05V, VCCSA, VCCST, VCCIO

    Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

    - 2oz Copper PCB

    OS

    - Microsoft® Windows® 10 64-bit
