Asrock X470 Master SLI Motherboard

Asrock X470 Master SLI Motherboard
  • Asrock X470 Master SLI Motherboard
  • Asrock X470 Master SLI Motherboard
  • Asrock X470 Master SLI Motherboard
  • Asrock X470 Master SLI Motherboard
$220.0
RRP:$230.0    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1 business day



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Products name:
    Asrock X470 Master SLI Motherboard
  • Model #:
    X470-MASTER-SLI
  • Brand:
  • Warranty:
    24 Months
  • Description

    Asrock X470 Master SLI Motherboard

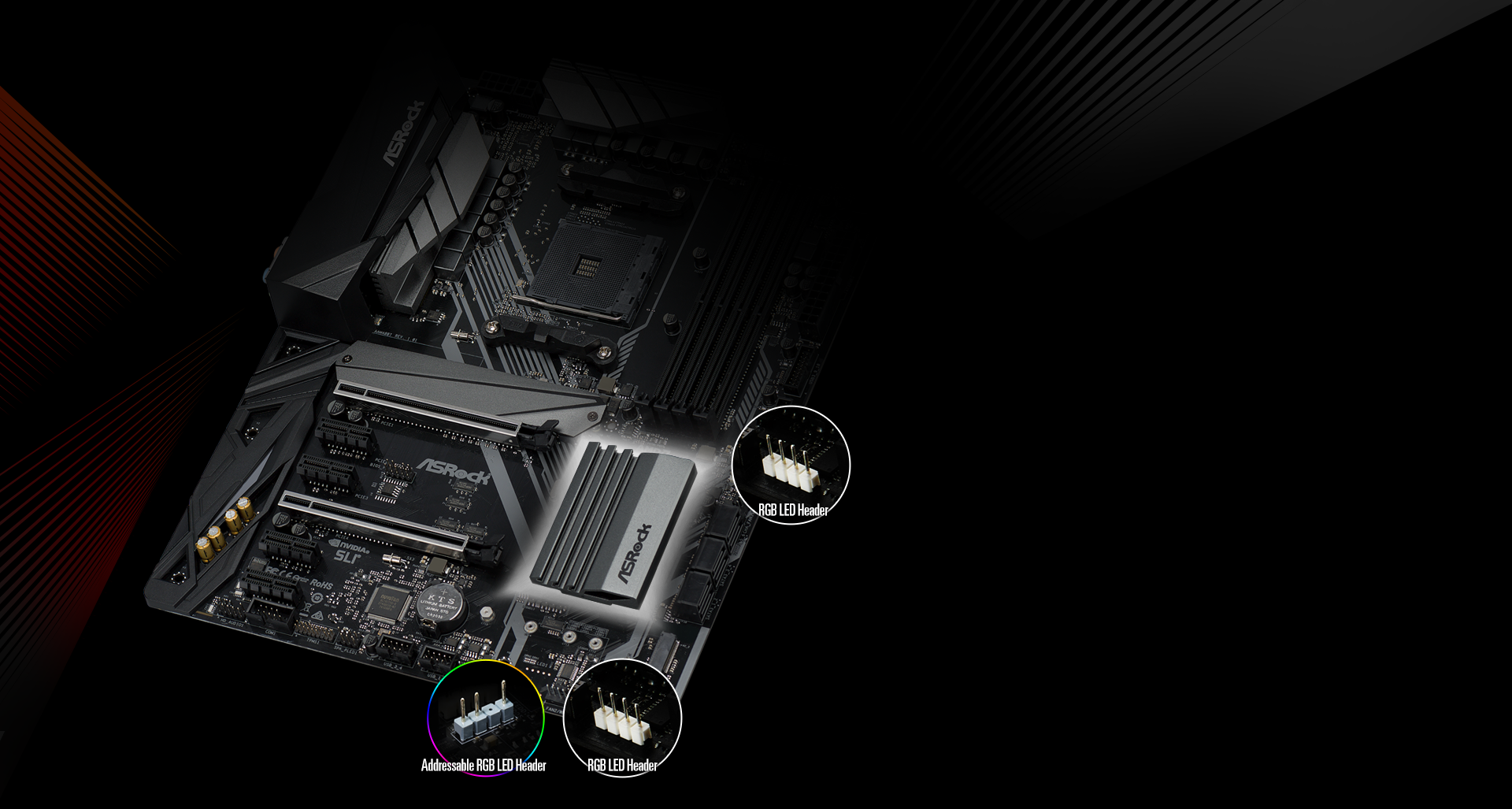

    RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB



    In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.



    Full Coverage M.2 Heatsink



    A massive full coverage M.2 heatsink can support up to Type 22110 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

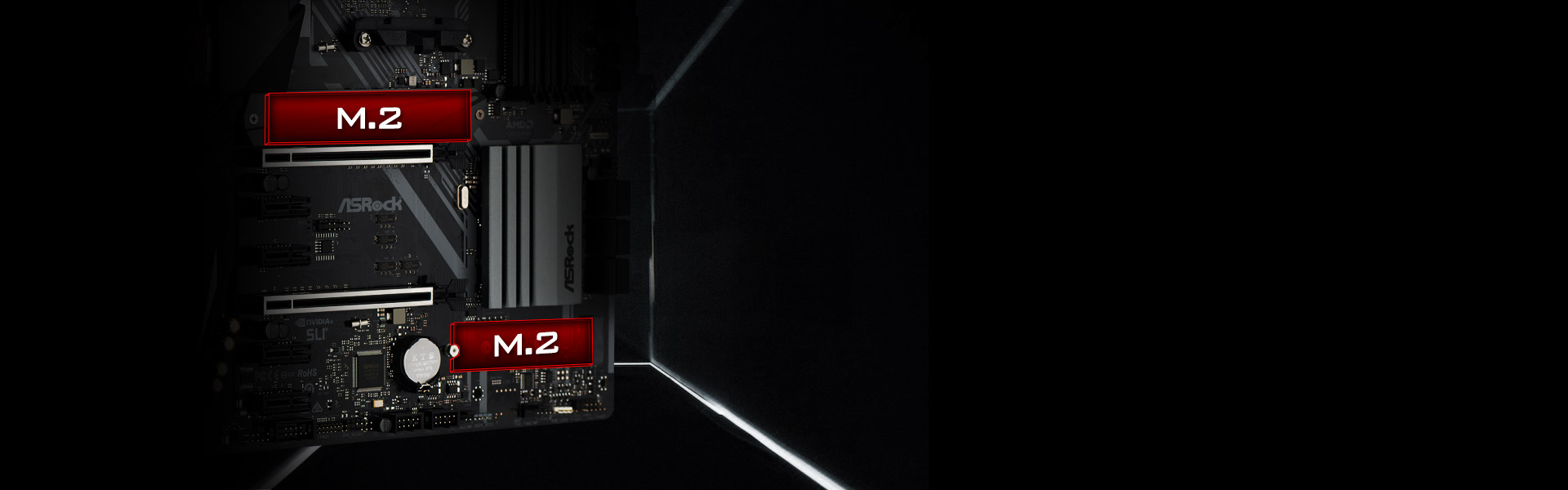

    Dual M.2 For SSD



    Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.



    PCI-E STEEL SLOTS

    The advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

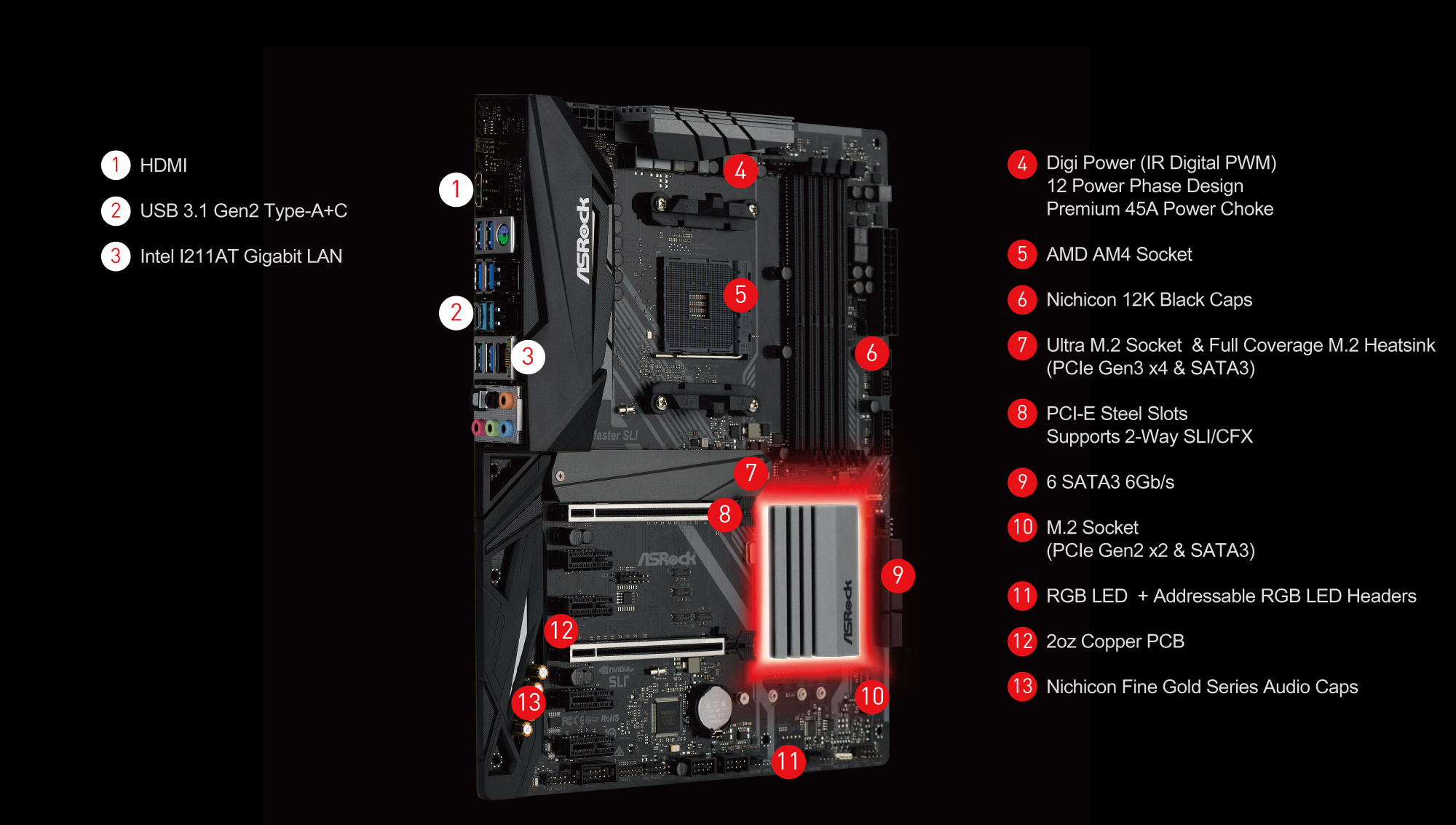

    FULL SPECIFICATIONS:



    • Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)

    • Supports DDR4 3466+ (OC)

    • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1

    • NVIDIA® Quad SLI™, AMD Quad CrossFireX™

    • Graphics Output: HDMI

    • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps

    • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 & SATA3)

    • 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear)

    • Intel® Gigabit LAN



    Unique Feature

    ASRock USB 3.1 Gen2
               - ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
               - ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
               ASRock Super Alloy
               - XXL Aluminum Alloy Heatsink
               - Premium 45A Power Choke
               - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
               - I/O Armor
               - Sapphire Black PCB
               - High Density Glass Fabric PCB
               - 2oz Copper PCB
               ASRock Steel Slots
               ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
               ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
               ASRock Live Update & APP Shop

    CPU

    - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
               - Digi Power design
               - 12 Power Phase design
               - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)

    Chipset- AMD Promontory X470
    Memory

    - Dual Channel DDR4 Memory Technology
               - 4 x DDR4 DIMM Slots
               - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
               - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
               - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
               - Max. capacity of system memory: 64GB**
               - 15μ Gold Contact in DIMM Slots

    *For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.

    Please refer to below table for DDR4 UDIMM maximum frequency support.


    Ryzen Series CPUs (Pinnacle Ridge):


    UDIMM Memory SlotFrequency(MHZ)
    A1A2B1B2
    -SR--2933
    -DR--2400
    -SR-SR2933
    -DR-DR2400
    SRSRSRSR2133
    SR/DRDRSR/DRDR1866

    Ryzen Series CPUs (Summit Ridge):


    UDIMM Memory SlotFrequency(MHZ)
    A1A2B1B2
    -SR--2667
    -DR--2667
    -SR-SR2667
    -DR-DR2400-2667
    SRSRSRSR2133-2400
    SR/DRDRSR/DRDR1866-2133

    Ryzen Series CPUs (Raven Ridge):


    UDIMM Memory SlotFrequency(MHZ)
    A1A2B1B2
    -SR--2933
    -DR--2667
    -SR-SR2667
    -DR-DR2400
    SRSRSRSR2133
    SR/DRDRSR/DRDR1866

     SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label

     DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

     **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    Audio

    - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
               - Premium Blu-ray Audio support
               - Supports Surge Protection
               - Nichicon Fine Gold Series Audio Caps

    Motherboard Keynotch


               - Gigabit LAN 10/100/1000 Mb/s
               - GigaLAN Intel® I211AT
               - Supports Wake-On-LAN
               - Supports Lightning/ESD Protection
               - Supports Energy Efficient Ethernet 802.3az
               - Supports PXE


    Slots

    AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
               - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4))*
               AMD Ryzen series CPUs (Raven Ridge)
               - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))*

               - 4 x PCI Express 2.0 x1 Slots
               - Supports AMD Quad CrossFireX™ and CrossFireX™**
               - Supports NVIDIA® Quad SLI™ and SLI™**
               - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


    *Supports NVMe SSD as boot disks

                 **This feature is only supported with Ryzen Series CPUs (Summit Ridge and Pinnacle Ridge).


    Connector

    - 1 x COM Port Header
               - 1 x TPM Header
               - 1 x Power LED and Speaker Header
               - 1 x AMD Fan LED Header*
               - 1 x RGB LED Header**
               - 1 x Addressable LED Header***
               - 1 x CPU Fan Connector (4-pin)****
               - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
               - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
               - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
               - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
               - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
               - 1 x Front Panel Audio Connector
               - 1 x AMD LED Fan USB Header
               - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
               - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)


    *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.

                 **Supports in total up to 12V/3A, 36W LED Strip

                 ***Supports in total up to 5V/3A, 15W LED Strip

                 ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

                 *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

                 ******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
                 CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.


    Rear Panel I/O

    - 1 x PS/2 Mouse/Keyboard Port
               - 1 x HDMI Port
               - 1 x Optical SPDIF Out Port
               - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
               - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
               - 6 x USB 3.1 Gen1 Ports (Supports ESD Protection)
               - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
               - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone


    Software and UEFI

    Software
               - ASRock A-Tuning
               - ASRock Polychrome RGB
               - ASRock XFast LAN
               UEFI
               - ASRock Full HD UEFI
               - ASRock Instant Flash
               - ASRock Easy RAID Installer


    *These utilities can be downloaded from ASRock Live Update & APP Shop.


    Support CD


               - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Accessories


               - Quick Installation Guide, Support CD, I/O Shield
               - 2 x SATA Data Cables
               - 1 x ASRock SLI_HB_Bridge_2S Card
               - 2 x Screws for M.2 Sockets

    Hardware Monitor


               - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
               - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
               - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
               - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
               - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP


    Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
               - 2oz Copper PCB

    OS


               - Microsoft® Windows® 10 64-bit

    Certifications


               - FCC, CE
               - ErP/EuP ready (ErP/EuP ready power supply is required)


    The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

    The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
