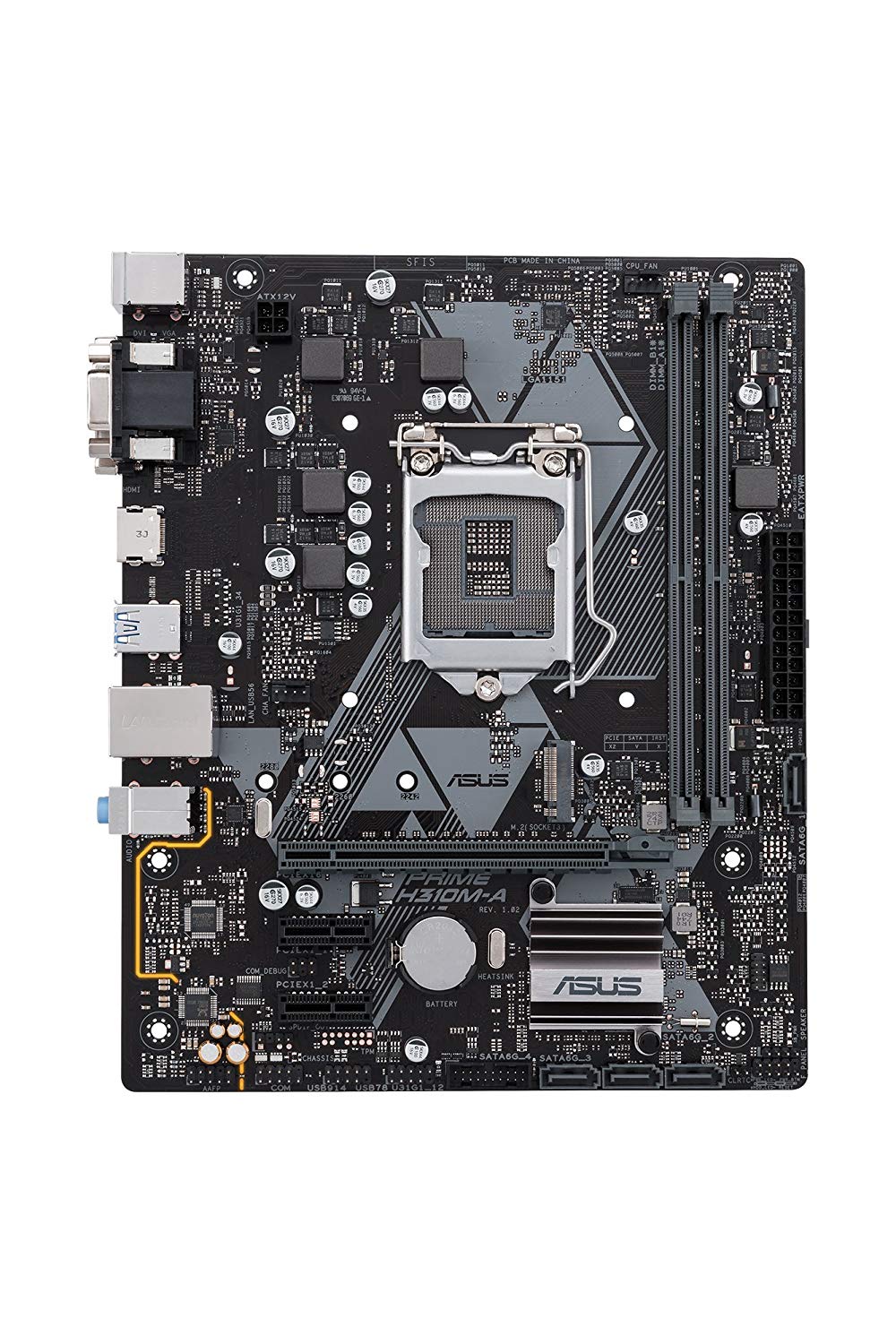

Asus Prime H310M-A/CSM LGA 1151 mATX Motherboard

Asus Prime H310M-A/CSM LGA 1151 mATX Motherboard
  • Asus Prime H310M-A/CSM LGA 1151 mATX Motherboard
$115.0
RRP:$129.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-2 Days excluding Weekends



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Asus Prime H310M-A/CSM LGA 1151 mATX Motherboard
  • Model Number:
    ECS043387
  • Brand:
  • Manufacturer Warranty:
    36 Months
  • Description

    Asus Prime H310M-A/CSM LGA 1151 mATX Motherboard


    Intel LGA-1151 mATX motherboard with LED lighting, DDR4 2666MHz, M.2 support, HDMI, SATA 6Gbps and USB 3.1 Gen1

    • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.

    • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.

    • 5X Protection III: Multiple hardware safeguards for all-round protection.

    • Ultrafast connectivity: Native M.2 support for Lightning-fast storage speeds

    • Add to comparison list


    ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.


    Improved DDR4 stability

    ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications


    ASUS OptiMem benefits:


    • Improved memory stability and compatibility

    • Allows lower memory latencies at equivalent voltages

    • Improved memory frequency margin

    • Tested by using Synopsys HSPICE simulation software


    Cooler by design

    Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.



    Multiple temperature sources

    Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.


    4-pin PWM/DC fan

    Each onboard CHA FAN header supports PWM and DC mode.


    Media-acclaimed UEFI BIOS

    The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.


    Q-Fan Control

    Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75°C.


    Search Function

    When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard — with a built-in Search function to find the setting you need in the blink of an eye.



    USB 3.1 Gen 1 front-panel connector

    Future-proof connectivity


    USB 3.1 Gen 1 is right where you need it, with two super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.


    * Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.


    M.2

    Speed up with onboard M.2

    With x2 PCI Express® 2.0 bandwidth, M.2 supports up to 10Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, providing fast access to data.


    * Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.


    SPECIFICATIONS:

    • CPU
      Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
      Supports Intel® 14 nm CPU
      Supports Intel® Turbo Boost Technology 2.0
      * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
      * Refer to www.asus.com for CPU support list
    • Chipset
      Intel® H310
    • Memory
      2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
      Dual Channel Memory Architecture
      Supports Intel® Extreme Memory Profile (XMP)
      * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
      * The maximum memory frequency supported varies by processor
      ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
    • Graphic
      Integrated Graphics Processor- Intel® HD Graphics support
      Multi-VGA output support : HDMI/DVI-D/D-Sub ports
      - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
      - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
      - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
      Maximum shared memory of 1024 MB (for iGPU exclusively)
      Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    • Expansion Slots
      1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
      2 x PCIe 2.0 x1
    • Storage
      Intel® H310 Chipset :
      1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
      4 x SATA 6Gb/s port(s), gray,
    • LAN
      Realtek® RTL8111H, 1 x Gigabit LAN
    • Audio
      Realtek® ALC887 8-Channel High Definition Audio CODEC
      - Supports : Jack-detection, Front Panel Jack-retasking
      Audio Feature :
      - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
      - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
      - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
      * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
    • USB Ports
      Intel® H310 Chipset :
      4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
      Intel® H310 Chipset :
      6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
    • Special Features
      ASUS 5X Protection III :
      - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
      - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
      - ASUS Overvoltage Protection: World-class circuit-protecting power design
      - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
      - ASUS DIGI+ VRM: 4 Phase digital power design
      ASUS OptiMem:
      - Optimem (Improved DDR4 stability)
      ASUS EPU :
      - EPU
      ASUS Exclusive Features :
      - AI Suite 3
      - Ai Charger
      - PC Cleaner
      - File Transfer
      ASUS Quiet Thermal Solution :
      - Stylish Fanless Design Heat-sink solution
      - ASUS Fan Xpert
      ASUS EZ DIY :
      - ASUS CrashFree BIOS 3
      - ASUS EZ Flash 3
      - ASUS UEFI BIOS EZ Mode
      ASUS Q-Design :
      - ASUS Q-DIMM
      M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
    • Back I/O Ports
      1 x PS/2 keyboard (purple)
      1 x PS/2 mouse (green)
      1 x DVI-D
      1 x D-Sub
      1 x HDMI
      1 x LAN (RJ45) port(s)
      2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
      2 x USB 2.0
      3 x Audio jack(s)
    • Internal I/O Ports
      1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
      2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
      1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
      1 x COM port(s) connector(s)
      4 x SATA 6Gb/s connector(s)
      1 x CPU Fan connector(s) (1 x 4 -pin)
      1 x Chassis Fan connector(s) (1 x 4 -pin)
      1 x S/PDIF out header(s)
      1 x 24-pin EATX Power connector(s)
      1 x 4-pin ATX 12V Power connector(s)
      1 x Front panel audio connector(s) (AAFP)
      1 x Clear CMOS jumper(s)
      1 x System panel connector
      1 x Speaker connector
    • Accessories
      User's manual
      I/O Shield
      2 x SATA 6Gb/s cable(s)
      1 x M.2 Anchor
      1 x Supporting DVD
    • BIOS
      128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
    • Manageability
      WOL by PME, PXE
    • Operating System
      Windows® 10 64-bit
    • Form Factor
      mATX Form Factor
      8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
    • Note
      *1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
      Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set
      to PCIe 2.0.
