Asus Prime TRX40-Pro ATX Motherboard

Asus Prime TRX40-Pro ATX Motherboard
  • Asus Prime TRX40-Pro ATX Motherboard
  • Asus Prime TRX40-Pro ATX Motherboard
  • Asus Prime TRX40-Pro ATX Motherboard
  • Asus Prime TRX40-Pro ATX Motherboard
$849.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-2 Days excluding Weekends



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Asus Prime TRX40-Pro ATX Motherboard
  • Model Number:
    PRIME TRX40-PRO
  • Brand:
  • Manufacturer Warranty:
    36 Months
  • Description

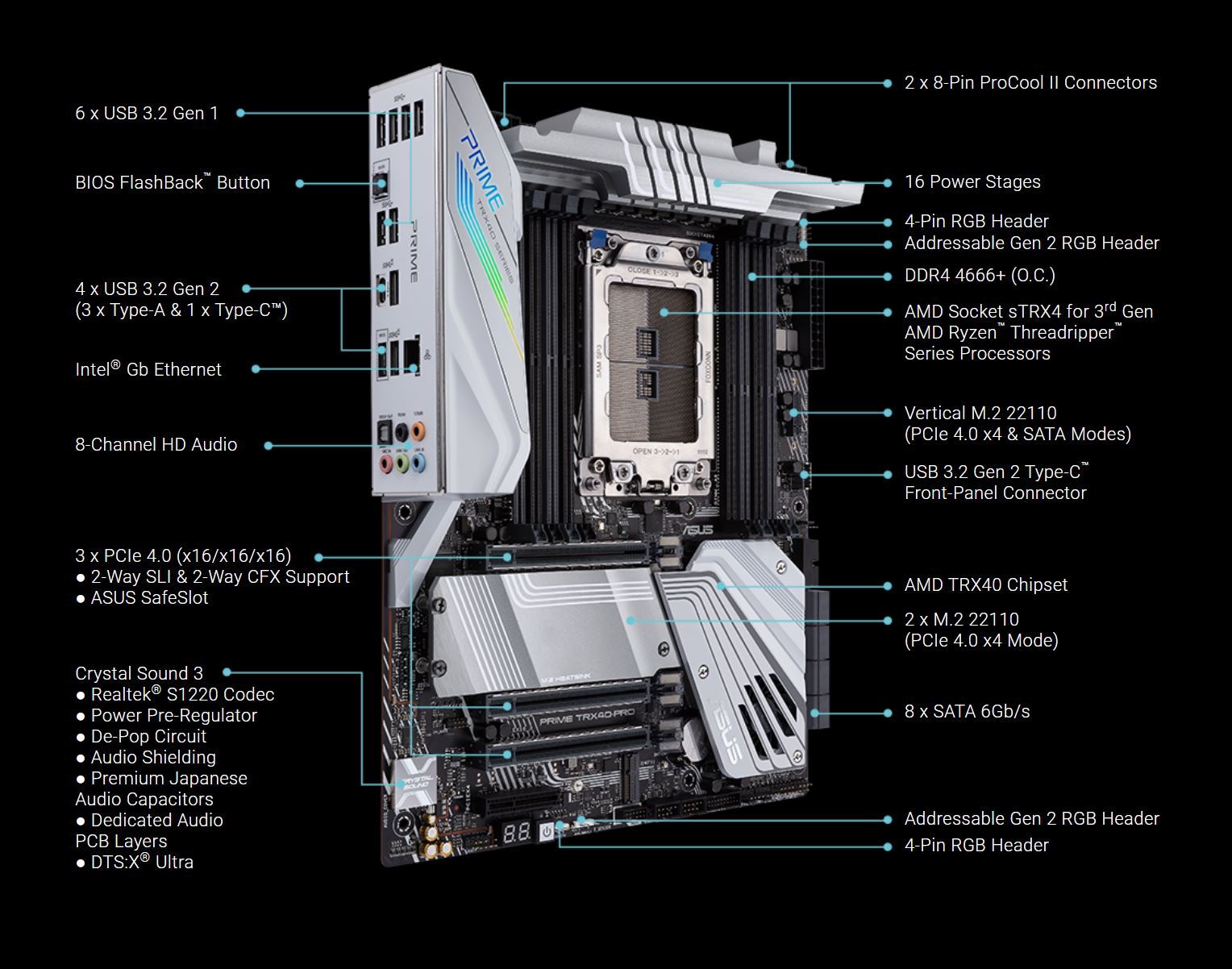

    AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors with 16 TDA21462 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting

    AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors

    Robust power design: 16 Infineon TDA21462 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery

    Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers

    Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet

    Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels


    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard

    Asus Prime TRX40-Pro ATX Motherboard


    SPECIFICATIONS:

    CPU

    AMD Socket sTRX4 for 3rd Gen AMD   Ryzen™ Threadripper™ Series Desktop Processors

    * Refer to www.asus.com for CPU   support list

    Chipset

    Build in AMD TRX40

    Memory

    3rd Gen AMD Ryzen™ Threadripper™   Series Desktop processors

    8 x DIMM, Max. 256GB, DDR4   4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/

    4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/

    2400/2133 MHz ECC and non-ECC,   Un-buffered Memory

    Multi-GPU   Support

    Supports NVIDIA® Quad-GPU SLI®   Technology

    Supports NVIDIA® 2-Way SLI®   Technology

    Supports AMD Quad-GPU CrossFireX™   Technology

    Supports AMD 2-Way CrossFireX   Technology

    Expansion   Slots

    3rd Gen AMD Ryzen™ Threadripper™   Series Desktop processors

    3 x PCIe 4.0 x16 (x16/x16/x16) *

    AMD TRX40 chipset

    1 x PCIe 4.0 (x4 mode)

    Storage

    3rd Gen AMD Ryzen™ Threadripper™   Series Desktop processors :

    2 x M.2 Socket 3, with M key, type   2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

    AMD TRX40 chipset :

    1 x M.2 Socket 3, with vertical M   key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4   mode)

    8 x SATA 6Gb/s port(s),

    Support Raid 0, 1, 10

    LAN

    Intel® I211-AT

    ASUS Turbo LAN Utility

    ASUS LAN Guard

    Audio

    Realtek® ALC S1220 8-Channel High   Definition Audio CODEC featuring Crystal Sound 3

    - Impedance sense for front and   rear headphone outputs

    - Internal audio Amplifier to   enhance the highest quality sound for headphone and speakers

    - Supports : Jack-detection,   Multi-streaming, Front Panel Jack-retasking

    - High quality 120 dB (Line-out at   rear) and 108 dB SNR recording input (Line-in)

    Audio Feature :

    - DTS X®:Ultra

    - Optical S/PDIF out port(s) at   back panel

    - Audio Shielding: Ensures precision   analog/digital separation and greatly reduced multi-lateral interference

    - Dedicated audio PCB layers:   Separate layers for left and right channels to guard the quality of the   sensitive audio signals

    - Premium Japanese-made audio   capacitors: Provide warm, natural and immersive sound with exceptional   clarity and fidelity

    - Unique de-pop circuit: Reduces   start-up popping noise to audio outputs

    USB Ports

    AMD Ryzen™ Threadripper™ Processors   :

    4 x USB 3.2 Gen 2 port(s) (4 at   back panel, , 3 x Type-A+1 x Type-C)

    AMD TRX40 chipset :

    1 x USB 3.2 Gen 2 front panel   connector port(s) (1 at mid-board)

    AMD TRX40 chipset :

    6 x USB 3.2 Gen 1 port(s) (2 at   back panel, , Type-A, 4 at mid-board)

    AMD TRX40 chipset :

    2 x USB 2.0 port(s) (2 at   mid-board)

    ASMedia® USB 3.2 Gen 1 controller :

    4 x USB 3.2 Gen 1 port(s) (4 at   back panel, , Type-A)

    GL852G USB Hub :

    2 x USB 2.0 port(s) (2 at   mid-board)

    Special   Features

    ASUS Dual Intelligent Processors   5-Way Optimization by Dual Intelligent Processors 5 :

    - 5-Way Optimization tuning key   perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

    ASUS SafeSlot - Protect your   graphics card Investment

    AURA :

    - Aura RGB Strip Headers

    - Aura Lighting Effects   Synchronization with compatible ASUS ROG devices

    - Addressable Gen 2 Header

    ASUS Exclusive Features :

    - AI Suite 3

    - Ai Charger

    - Onboard Button : Power

    - ASUS UEFI BIOS EZ Mode featuring   friendly graphics user interface

    - Turbo LAN

    - Crystal Sound 3

    - Armoury Crate

    - Pre-mounted I/O Shield

    ASUS Quiet Thermal Solution :

    - Stylish Design Heat-pipe solution

    - Stylish Fanless Design with M.2   Heat-sink solution

    - ASUS Fan Xpert 4

    ASUS EZ DIY :

    - ASUS EZ Flash 3

    - ASUS USB BIOS FlashBack™

    - ASUS UEFI BIOS EZ Mode

    - Multi-language BIOS

    ASUS Q-Design :

    - ASUS Q-Code

    - ASUS Q-LED (CPU, DRAM, VGA, Boot   Device LED)

    - ASUS Q-Slot

    - ASUS Q-DIMM

    - ASUS Q-Connector

    Back I/O   Ports

    1 x LAN (RJ45) port(s)

    4 x USB 3.2 Gen 2 (teal blue) (3 x   Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)

    6 x USB 3.2 Gen 1 (blue)

    1 x Optical S/PDIF out

    5 x Audio jack(s)

    1 x USB BIOS FlashBack™ Button(s)

    Internal I/O   Ports

    1 x Q_Code

    2 x Aura RGB Strip Header(s)

    2 x Addressable Gen 2 header(s)

    2 x USB 3.2 Gen 1(up to 5Gbps)   connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

    2 x USB 2.0 connector(s) support(s)   additional 4 USB 2.0 port(s)

    2 x M.2 Socket 3 with M key, type   2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

    1 x M.2 Socket 3 with vertical M   key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4   mode)

    1 x M.2 with E key for Wi-Fi module

    8 x SATA 6Gb/s connector(s)

    1 x CPU Fan connector(s) (1 x 4   -pin)

    1 x CPU OPT Fan connector(s) (1 x 4   -pin)

    3 x Chassis Fan connector(s) (3 x 4   -pin)

    1 x AIO_PUMP connector (1 x 4 -pin)

    1 x W_PUMP+ connector (1 x 4 -pin)

    1 x 24-pin EATX Power connector(s)

    2 x 8-pin ATX 12V Power   connector(s)

    1 x Front panel audio connector(s)   (AAFP)

    1 x System panel(s) (Q-Connector) x   With flexkey function

    1 x Thermal sensor connector(s)

    1 x Power-on button(s)

    1 x Clear CMOS jumper(s)

    1 x Node Connector(s)

    1 x USB 3.2 Gen 2 front panel   connector

    Accessories

    User's manual

    1 x Vertical M.2 bracket set

    4 x SATA 6Gb/s cable(s)

    2 x M.2 Screw Package

    1 x Supporting DVD

    1 x Q-Connector

    1 x Extension Cable for RGB strips   (40 cm)

    1 x Extension cable for Addressable   LED

    1 x CPU Fan Holder

    BIOS

    1 x 128 Mb Flash ROM, UEFI AMI   BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

    Manageability

    WfM 2.0, WOL by PME, PXE

    Operating System

    Windows® 10 64-bit

    Form Factor

    ATX Form Factor

    12 inch x 9.6 inch ( 30.5 cm x 24.4   cm )

    Note



    Recommend you to install add-on   cards on (PCIex16_1 and PCIx16_2) or (PCIex16_1 and PCIx16_3) to enjoy 2 way   SLI™ or CrossFireX™.
