Asus Prime X299 Deluxe II LGA 2066 Motherboard

Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Asus Prime X299 Deluxe II LGA 2066 Motherboard
$892.0
RRP:$933.9
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-3 Days excluding Weekends

  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Click & Collect.

Specifications

  • Product Name:
    Asus Prime X299 Deluxe II LGA 2066 Motherboard
  • Model Number:
    PRIME X299-DELUXE II
  • Brand:
  • Manufacturer Warranty:
    3 Year
  • Description

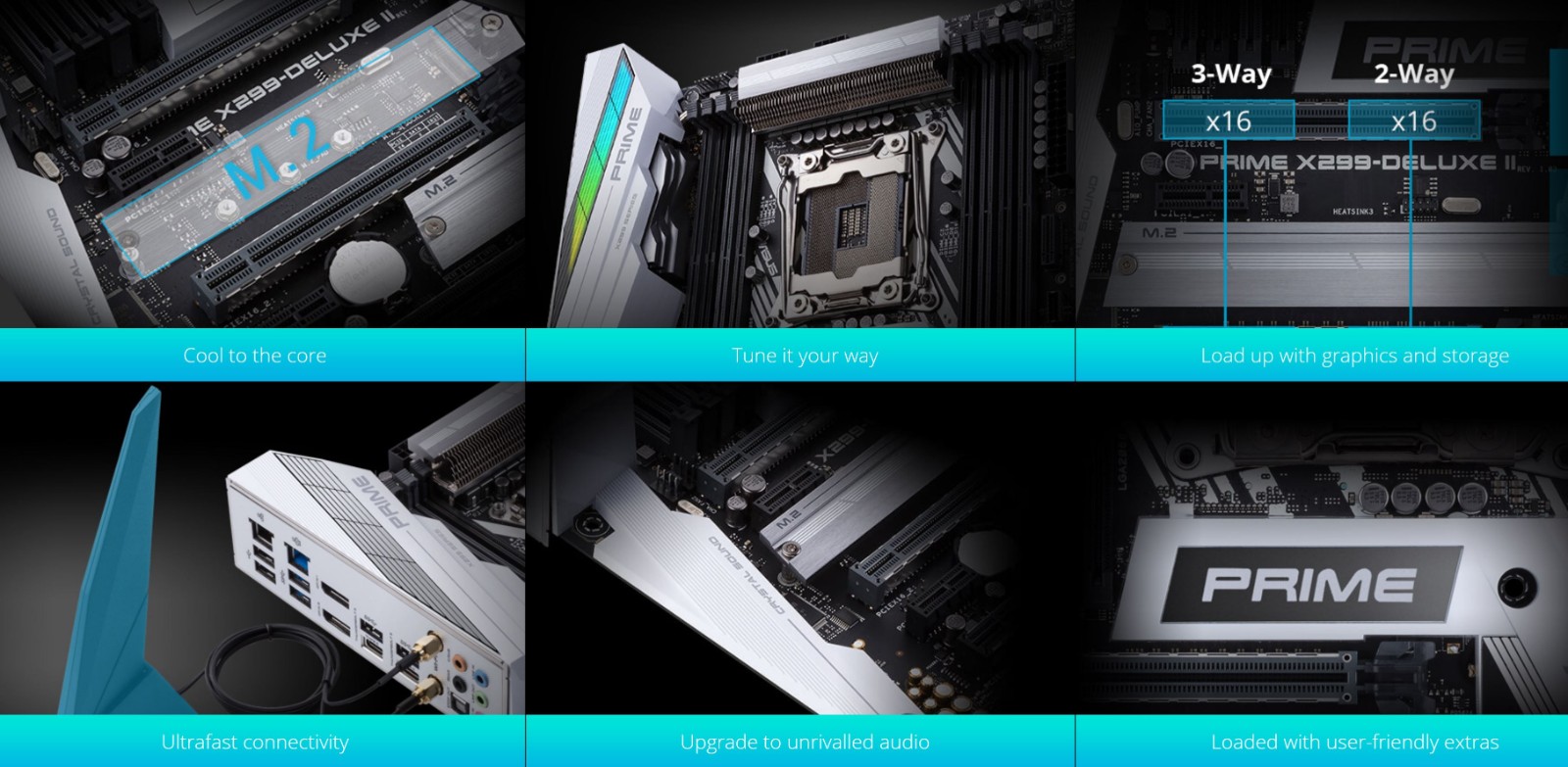

    Intel LGA 2066 ATX motherboard with enhanced VRM and M.2 heatsink design, DDR4 4266 (O.C.)MHz, 802.11ac Wi-Fi, triple M.2, Type-C Thunderbolt 3 ports, Intel VROC support:

    5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocking and intelligent cooling for CPU or GPU-intensive tasks

    Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI

    Optimized thermal design: Enhanced fin-design VRM heatsink & M.2 heatsink for efficient cooling and optimal performance

    Next-gen connectivity: Aquantia 5Gbps LAN, Intel Wireless-AC 9260, two Thunderbolt 3 (Type-C) with DisplayPort 1.4, three M.2 and front USB 3.1 Gen 2 connector

    LiveDash: A 2-inch customizable onboard display that shows system temperature, CPU frequency, fan speeds or custom graphics and animations

    Pre-mounted I/O shield: Capable of withstanding electrostatic discharge and pre-fitted for easier system installation


    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard

    Asus Prime X299 Deluxe II LGA 2066 Motherboard


    SPECIFICATIONS:

    CPU

    Intel® Socket 2066 Core™ X-Series Processors

    Chipset

    Intel® X299

    Memory

    17.3-inch Full HD (1920x1080)



    GRAPHICS

    NVIDIA® GeForce GTX™ 1650 with 4GB GDDR5 VRAM

    MEMORY

    Intel® Core™ X-series Processors (6-core above)

    8 x DIMM, Max. 128GB, DDR4   4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz   Non-ECC, Un-buffered Memory

    Supports Intel® Extreme Memory Profile (XMP)

    * Hyper DIMM support is subject to the physical   characteristics of individual CPUs.

    Thunderbolt

    2 x Intel® Thunderbolt™ 3 ports(TypeC™) support   DisplayPort and Thunderbolt™ video outputs

    Supports DisplayPort 1.4/ with max. resolution 7680/ x   3840/@ 60 Hz*

    * VGA resolution support depends on VGA cards'   resolution.

    Data transfer rate up to 40 Gbps

    Daisy-chain up to 12 Thunderbolt devices

    Up to 5V/3A, 15W charging support

    Multi-GPU Support

    Supports NVIDIA® Quad-GPU SLI™ Technology

    Supports NVIDIA® 3-Way SLI™ Technology

    Supports NVIDIA® 2-Way SLI™ Technology

    Supports AMD Quad-GPU CrossFireX™ Technology

    Supports AMD 3-Way CrossFireX™ Technology

    Expansion Slots

    44-Lane CPU-

    3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)

    2 x PCIe 3.0/2.0 x1 *1

    28-Lane CPU-

    2 x PCIe 3.0/2.0 x16 (x16, x16/x8)

    1 x PCIe 3.0/2.0 x16 (x2 mode) *2

    2 x PCIe 3.0/2.0 x1 *1

    Storage

    Intel® X299 Chipset :

    1 x M.2 x4 Socket 3, with M Key, type   2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

    1 x M.2 x4 Socket 3, with M key, type   2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

    8 x SATA 6Gb/s port(s)*1

    Support Raid 0, 1, 5, 10

    Intel® Rapid Storage Technology supports

    Intel® Core™ X-series Processors (6-core above) :

    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110   storage devices support (PCIE 3.0 x 4 mode)

    Support Raid 0, 1, 5, 10

    Intel® Rapid Storage Technology Enterprise supports

    Intel® Optane™ Memory Ready

    LAN

    Aquantia AQC111C 5G LAN

    Intel® I219V, 1 x Gigabit LAN

    ASUS Turbo LAN Utility

    ASUS LAN Guard

    Wireless Data Network

    Intel® Wireless-AC 9260

    Wi-Fi 802.11 a/b/g/n/ac

    Supports dual band frequency 2.4/5 GHz

    Supports MU-MIMO

    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to   1.73Gbps transfer speed

    Bluetooth

    Bluetooth® 5.0

    AUDIO

    Realtek® S1220A 8-Channel High Definition Audio CODEC

    - Power pre-regulator reduces power input noise to   ensure consistent performance

    - Impedance sense for front and rear headphone outputs

    - Internal audio Amplifier to enhance the highest   quality sound for headphone and speakers

    - Supports : Jack-detection, Multi-streaming, Front   Panel Jack-retasking

    Audio Feature :

    - DTS Headphone:X

    - Optical S/PDIF out port(s) at back panel

    - Audio Shielding: Ensures precision analog/digital   separation and greatly reduced multi-lateral interference

    - Dedicated audio PCB layers: Separate layers for left   and right channels to guard the quality of the sensitive audio signals

    - Premium Japanese-made audio capacitors: Provide warm,   natural and immersive sound with exceptional clarity and fidelity

    - Unique de-pop circuit: Reduces start-up popping noise   to audio outputs

    USB Ports

    Intel® Thunderbolt™ 3 Controller :

    2 x USB 3.1 Gen 2 port(s) (USB Type-CTM)

    ASMedia® USB 3.1 Gen 2 controller : *1

    1 x USB 3.1 Gen 2 front panel connector port(s)

    Intel® X299 Chipset :

    5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at   mid-board)

    Intel® X299 Chipset :

    4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)

    ASMedia® USB 3.1 Gen 1 Hub :

    3 x USB 3.1 Gen 1 port(s) (3 at back panel, )

    Special Features

    OC Design - ASUS PRO Clock II Technology

    5-Way Optimization by Dual Intelligent Processors 5

    - 5-Way Optimization tuning key perfectly consolidates   TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App

    ASUS 5X Protection III :

    - ASUS SafeSlot Core: Fortified PCIe Slot prevents   damage

    - ASUS LANGuard: Protects against LAN surges, lightning   strikes and static-electricity discharges!

    - ASUS Overvoltage Protection: World-class   circuit-protecting power design

    - ASUS Stainless-Steel Back I/O: 3X   corrosion-resistance for greater durability!

    - ASUS Enhanced DRAM Overcurrent Protection - Short   circuit damage prevention

    - ASUS ESD Guards - Enhanced ESD protection

    2 ” LiveDash

    AURA :

    - Aura RGB Strip Headers

    - Aura Lighting Effects Synchronization with compatible   ASUS ROG devices

    - Aura Addressable Strip Header(s)

    ASUS Exclusive Features :

    - USB BIOS FlashbackTM

    - MemOK! II

    - AI Suite 3

    - Ai Charger

    - Onboard Button : Power/Reset

    - ASUS UEFI BIOS EZ Mode featuring friendly graphics   user interface

    - Turbo LAN

    - Pre- mounted I/O shield

    - ASUS NODE : hardware control interface

    ASUS Quiet Thermal Solution :

    - Stylish Design Heat-pipe solution

    - Stylish Fanless Design with M.2 Heat-sink solution

    ASUS Q-Design :

    - ASUS Q-Code

    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)

    - ASUS Q-Slot

    - ASUS Q-DIMM

    - ASUS Q-Connector

    DIY Friendly Design

    - Procool

    - SafeSlot

    Q-Installer

    - Auto download driver and software. Friendly for first   PC builder.

    Back I/O Ports

    2 x Thunderbolt 3 ports TypeC™

    2 x DisplayPort IN ports for Thunderbolt™ 3

    1 x LAN (RJ45) port(s)

    4 x USB 3.1 Gen 1

    2 x USB 2.0 (one port can be switched to USB BIOS   FlashbackTM)

    1 x Optical S/PDIF out

    5 x Audio jack(s)

    1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and   Bluetooth v5.0

    1 x AQC-111C 5G LAN port

    Internal I/O Ports

    1 x Aura Addressable Strip Header(s)

    1 x AAFP connector

    2 x Aura RGB Strip Header

    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s)   additional 4 USB 3.1 Gen 1 port(s)

    1 x USB 2.0 connector(s) support(s) additional 2 USB   2.0 port(s)

    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110   storage devices support (SATA & PCIE 3.0 x 4 mode)

    2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110   storage devices support (PCIE 3.0 x 4 mode)

    8 x SATA 6Gb/s connector(s)

    1 x M.2_FAN connector

    1 x VROC_HW_Key

    1 x CPU Fan connector(s)

    1 x CPU OPT Fan connector(s)

    2 x Chassis Fan connector(s)

    1 x W_PUMP+ connector

    1 x AIO_PUMP connector

    1 x 24-pin EATX Power connector(s)

    2 x 8-pin EATX 12V Power connectors

    1 x System panel(s) (Q-Connector) (Chassis intrusion   header is inbuilt)

    1 x MemOK! II switch(es)

    1 x Thermal sensor connector(s)

    1 x CPU OV

    1 x Power-on button(s)

    1 x Reset button(s)

    1 x Clear CMOS button(s)

    1 x Node Connector(s)

    1 x USB BIOS FlashbackTM button(s)

    1 x USB 3.1 Gen 2 front panel connector

    1 x Q-Code

    Accessories

    User's manual

    1 x Vertical M.2 bracket set

    6 x SATA 6Gb/s cable(s)

    1 x M.2 Screw Package

    1 x Supporting DVD

    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi   802.11a/b/g/n/ac compliant)

    1 x Fan Extension Card II (6 x 4-pin Chassis Fan   connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)

    1 x Fan Extension Card II power cable

    1 x Fan Extension Card II NODE connector cable

    1 x Fan Extension Card II screw package

    1 x DisplayPort cable

    1 x SLI HB BRIDGE(2-WAY-M)

    1 x Q-Connector

    1 x Extension cable for Addressable LED

    3 x Thermistor cable(s)

    1 x CPU Fan Holder

    BIOS

    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI   6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning   Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12   PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory   information

    Manageability

    WfM 2.0, DMI 3.0, WOL by PME, PXE

    Support Disc

    Drivers

    ASUS Utilities

    EZ Update

    Anti-virus software (OEM version)

    Operating System

    Windows® 10 64-bit

    Form Factor

    ATX Form Factor

    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

    Note

    * 1. PCIEX1_1 shares bandwidth with USB 3.1 Gen 2 front   panel connector(U31G2_E1). It is disabled by default.

    PCIEX1_2 shares bandwidth with SATA6G_7.

    * 2. SATA6G_5 & SATA6G_6 shares bandwidth with   PCIEX16_3 when using 28-lane CPU.
