Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard

Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
  • Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
  • Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
  • Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
  • Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
$679.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard
  • Model Number:
    ROG MAXIMUS XI APEX
  • Brand:
  • Manufacturer Warranty:
    36 Months
  • Description

    Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard


    Intel Z390 ATX overclocking motherboard with extreme performance, DDR4 4800MHz, ROG DIMM.2 (dual M.2) with M.2 heatsink, double-capacity DIMM support, Aura Sync RGB LED, SATA 6Gbps and USB 3.1 Gen 2


    • LGA1151 socket: Ready for 9th/8th Generation Intel® Core™ desktop processors

    • Engineered for performance: Enhanced Extreme Engine Digi+, dual ProCool 8-pin power connectors and optimized 2-DIMM memory-trace layout for DDR4 4800MHz+ overclocking support

    • Overclocker’s Toolkit: hardware-level controls and onboard condensation detection circuits to aid with subzero overclocking.

    • Double-capacity DIMM: Optimized memory-trace layout for dual 32GB DIMM support

    • ROG DIMM.2: Vertically-installed dual-M.2 expansion card with heatsink for maximum cooling and performance

    • 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles tailor-made for your rig

    • Cutting-edge connectivity: Intel Gigabit Ethernet, two M.2, USB 3.1 Gen 2, Wi-Fi (802.11ac) with MU-MIMO for lightning-fast data transfers

    • Immersive audio: High-fidelity sonics that draw you deeper into the action, with SupremeFX

    • ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips

    • Gaming durability: ASUS SafeSlot, ROG patented pre-mounted I/O shield and premium components for maximum endurance


    Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard

    Asus ROG MAXIMUS XI APEX LGA 1151 E-ATX Motherboard


    Specifications


    CPU

    Build   in Intel® 9th / 8th Gen Intel® Core™, Pentium®   Gold   and   Celeron® Processors

        Supports Intel® 14 nm CPU

        Supports Intel® Turbo Boost Technology 2.0

        * Refer to www.asus.com for CPU   support list

    CHIPSET

    Build     in Intel® Z390

    MEMORY



    Socket   1151 for 9th / 8th Gen Intel® Core™,     Pentium® Gold and Celeron® processors

    2xDIMM,Max.64GB,DDR4         4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2133     MHz Memory *

    Dual   Channel Memory Architecture

    Supports   Intel® Extreme Memory Profile   (XMP)

        * Double Capcity DRAM support depends on   the DRAM models



    MULTI-GPU SUPPORT

    Supports   NVIDIA® 2-Way SLI™ Technology

         Supports AMD   3-Way CrossFireX™ Technology



    EXPANSION SLOTS

    Socket   1151 for 9th / 8th Gen Intel® Core™,     Pentium® Gold and Celeron® processors

        2 x PCIe 3.0 x16 (Single at x16, dual at   x8/x8)

        Intel® Z390 Chipset

        1 x PCIe 3.0 x4

        1 x PCIe 3.0 x1



    STORAGE

    Intel®   Z390 Chipset :

        1 x ROG DIMM.2 Module support(PCH_DIMM.2),   with M key,   type   2242/2260/2280/22110   storage devices support (SATA   & PCIE 3.0 x 4 mode)*

        1 x ROG DIMM.2 Module support(PCH_DIMM.2),   with M key,   type   2242/2260/2280/22110   storage devices support (PCIE   3.0 x 4 mode)

        6 x SATA 6Gb/s port(s)*

        Support Raid 0, 1, 5

        Intel® Optane™ Memory Ready



    LAN

    Intel®

     I219V,   1 x Gigabit LAN Controller(s)



    WIRELESS DATA NETWORK

    Intel®   Wireless-AC 9560

        Wi-Fi 802.11 a/b/g/n/ac

        Supports channel bandwidth:   HT20/HT40/HT80/HT160. Up to 1.73Gbps   transfer   speed



    BLUETOOTH

    Bluetooth®     5.0

    AUDIO

    ROG Supreme   FX 7.1-Channel High Definition Audio CODEC

        - Impedance sense for front and rear   headphone outputs

        - High quality 120 dB SNR stereo playback   output and 113 dB SNR   recording   input

        - Supports up to 32-Bit/192kHz playback

        Audio Feature :

        - SupremeFX Shielding™ Technology

        - Optical S/PDIF out port(s) at back panel

        Premium Japan-made audio capacitors   provides warm, natural, and   immersive     sound with exceptional clarity and fidelity



    USB PORTS

    Intel®   Z390 Chipset :

        1 x USB 3.1 Gen 2 front panel connector   port(s)

        Intel® Z390 Chipset :

        4 x USB 3.1 Gen 2 port(s) (4 at back panel,   , Type-A + USB Type-CTM)

        Intel® Z390 Chipset :

        4 x USB 3.1 Gen 1 port(s) (6 at back panel,   blue)

        Intel® Z390 Chipset :

        2 x USB 2.0 port(s)

        ASMedia® USB 3.1 Gen 1 controller :

        6 x USB 3.1 Gen 1 port(s)

        GL852G USB Hub :

        2 x USB port(s)





    ROG EXCLUSIVE FEATURES

    Condensation   detection

        Clear CMOS button

        ROG CPU-Z

        ROG CloneDrive

        Slow Mode

        Overwolf

        ReTry Button

        Safe Boot Button

        Start Button

        Reset Button

        LN2 Mode

        Extreme Engine Digi+ :

        - IR3555 PoweIRstage®

        - MicroFine Alloy Chokes

        - 10K Black Metallic Capacitors

        Mem TweakIt

        Double Power :

        - Dual 8 -pin CPU

        ProbeIt

        UEFI BIOS features :

        - O.C. Profile

        - GPU.DIMM Post

        - Tweakers' Paradise

        - ROG SSD Secure Erase

        - Graphic Card Information Preview

        Extreme Tweaker

        ROG Patented Pre-mounted I/O Shield

        ROG Exclusive Software

        - RAMCache III



    SPECIAL FEATURES

    ASUS   Dual Intelligent Processors 3 - SMART     DIGI+ Power Control :

        - 5-Way Optimization tuning key perfectly   consolidates TPU, EPU, DIGI+   VRM,   Fan   Expert 4, and Turbo App

        AI Overclocking

        Fan Xpert4



        ASUS 5X Protection III :

        - ASUS SafeSlot Core: Fortified PCIe Slot   prevents damage

        - ASUS LANGuard: Protects against LAN   surges, lightning strikes   and     static-electricity discharges!

        - ASUS Overvoltage Protection: World-class   circuit-protecting power   design

        SafeDIMM slot

        AURA :

        - Aura Lighting Control

        - Aura RGB Strip Headers

        - Aura Lighting Effects Synchronization   with compatible ASUS ROG   devices

        - Aura Addressable Strip Header(s)

        ASUS Exclusive Features :

        - USB BIOS Flashback®

        - MemOK! II

        - AI Suite 3

      -     Anti-Surge

        - ASUS CrashFree BIOS 3

        - ASUS NODE : hardware control interface

        - BIOS Flashback® Button

        - Clear CMOS Button

        ASUS Q-Design :

        - ASUS Q-Code

        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device   LED, HDD LED)

        - ASUS Q-Slot

        - ASUS Q-DIMM

        - ASUS Q-Connector

        Gaming Aesthetics :

        - AURA-RGB Lighting

        DIY Friendly Design

        - Procool

        - SafeSlot

        - Digi+ VRM

        - DRAM Overcurrent Protection

        - Highly Durable components

        - ESD Guards

        MemOK! II

        Armoury Crate

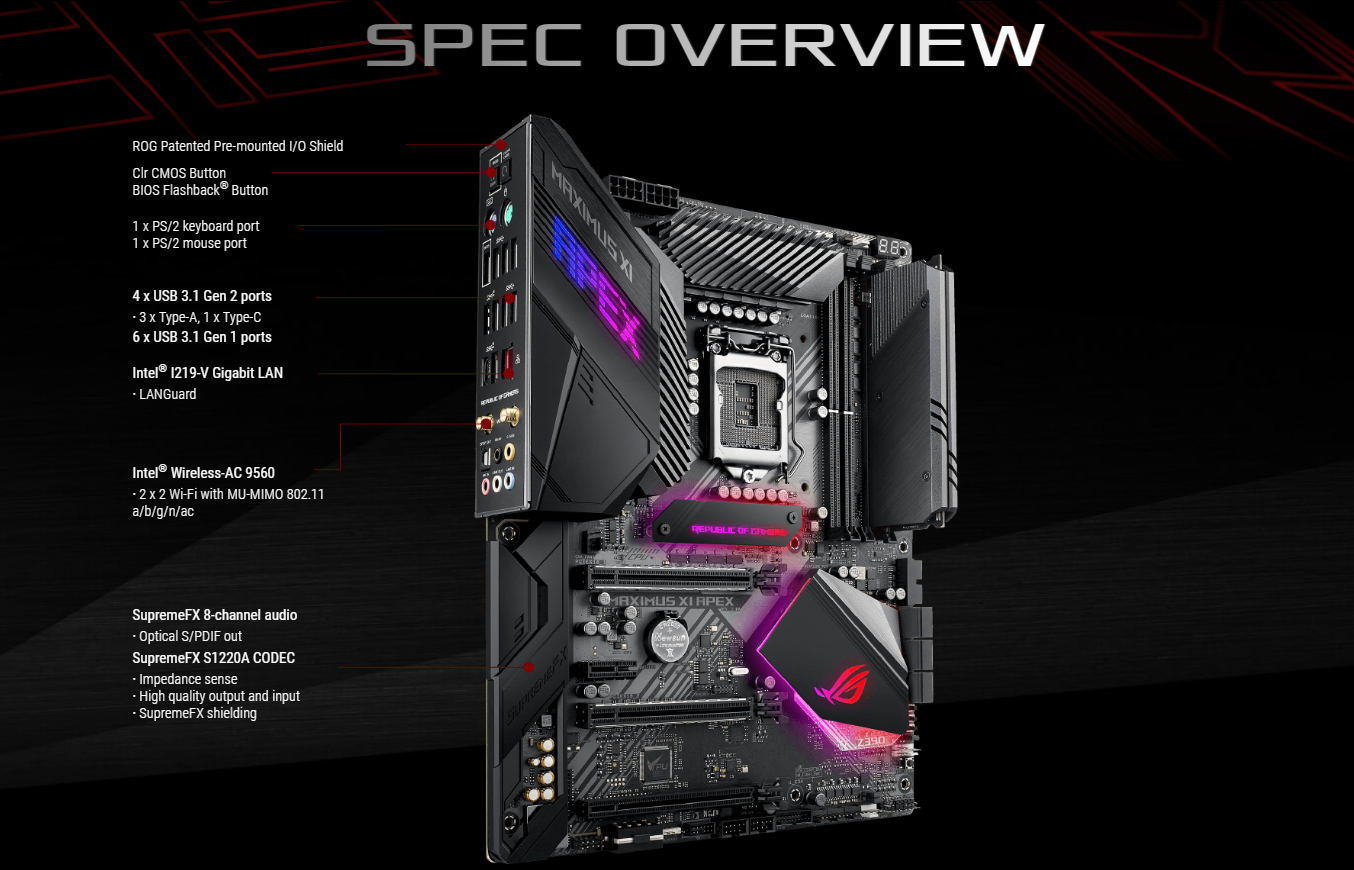

    BACK I/O PORTS

    1   x   PS/2 keyboard (purple)

        1 x PS/2 mouse (green)

        1 x LAN (RJ45) port(s)

        3 x USB 3.1 Gen 2 (red)

        1 x USB 3.1 Gen 2 (black)Type-C,

        6 x USB 3.1 Gen 1 (blue)

        1 x Optical S/PDIF out

        1 x Clear CMOS button(s)

        1 x USB BIOS Flashback® Button(s)

        1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11   a/b/g/n/ac and Bluetooth v5.0

        5 x Gold-plated audio jacks



    INTERNAL I/O PORTS

    1   x   Aura Addressable Strip Header(s)

        1 x ReTry jumper

        1 x S/PDIF out header(s)

        2 x 8-pin EATX 12V Power connectors

        1 x 4-pin EZ_PLUG Power connector(s)

        1 x Front panel audio connector(s) (AAFP)

        1 x MemOK! II switch(es)

        1 x Clear CMOS button(s)

        1 x Node Connector(s)

        1 x LN2 Mode jumper(s)

        1 x Safe Boot button

        1 x ReTry button

        1 x System panel connector

        1 x High AMP Fan Header

        1 x W_Pump+ Header

        1 x AIO PUMP Header

        1 x W_IN header

        1 x W_OUT header

        1 x W_FLOW header

        1 x USB 3.1 Gen 2 front panel connector

        1 x DIMM.2 Slot supports 2 M.2 drives   (2242-22110)

        3 x 4-pin Full Speed Fan connectors

        3 x onboard LED ON/OFF jumper(s)

        2 x USB 3.1 Gen 1 connector(s) support(s)   additional 2 USB 3.1 Gen 1   port(s)

        2 x USB 2.0 connector(s) support(s)   additional 2 USB 2.0 port(s)

        1 x Start button

        1 x Q-Code

        1 x RGB Header



    ACCESSORIES

    1   x   Supporting DVD

        1 x ROG addressable LED strip (750px)

        1 x SLI HB BRIDGE(2-WAY-M)

        1 x ROG big sticker

        1 x Q-Connector

        2 x M.2 screw kit (short screw and mount)

        1 x Wi-Fi Antenna(s)

        1 x Extension Cable for RGB strips (80 cm)

        User manual

        1 x ROG coaster(s)

        1 x Customizable Name Plate Accessory Pack

        1 x ROG Thank you card

        1 x ROG DIMM.2 with heatsink

        1 x M.2 Pad for ROG DIMM.2



    BIOS

    2     x   128 Mb Flash ROM, UEFI AMI BIOS,   PnP, DMI3.0, WfM2.0, SM   BIOS 3.0, ACPI 6.0,     Multi-language BIOS, ASUS EZ Flash 3,   CrashFree BIOS 3, F11 EZ Tuning   Wizard,   F6 Qfan Control,   F3 My   Favorites, Last Modified log, F12 PrintScreen, F3     Shortcut functions and ASUS DRAM SPD   (Serial Presence Detect)   memory     information.

    MANAGEABILITY

    WfM2.0,   DMI3.0, WOL by PME, PXE

    OPERATING SYSTEM

    Windows®   10 64-bit

    FORM FACTOR

    ATX   Form Factor

        12 inch x 9.6 inch ( 24.4 cm x 24.4 cm )



    • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

    • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

    • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

    • PCB color and bundled software versions are subject to change without notice.

    • Brand and product names mentioned are trademarks of their respective companies.

    • Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

    • *Precise specifications and features vary by model . Please refer to the specification page

    • The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

    • The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
