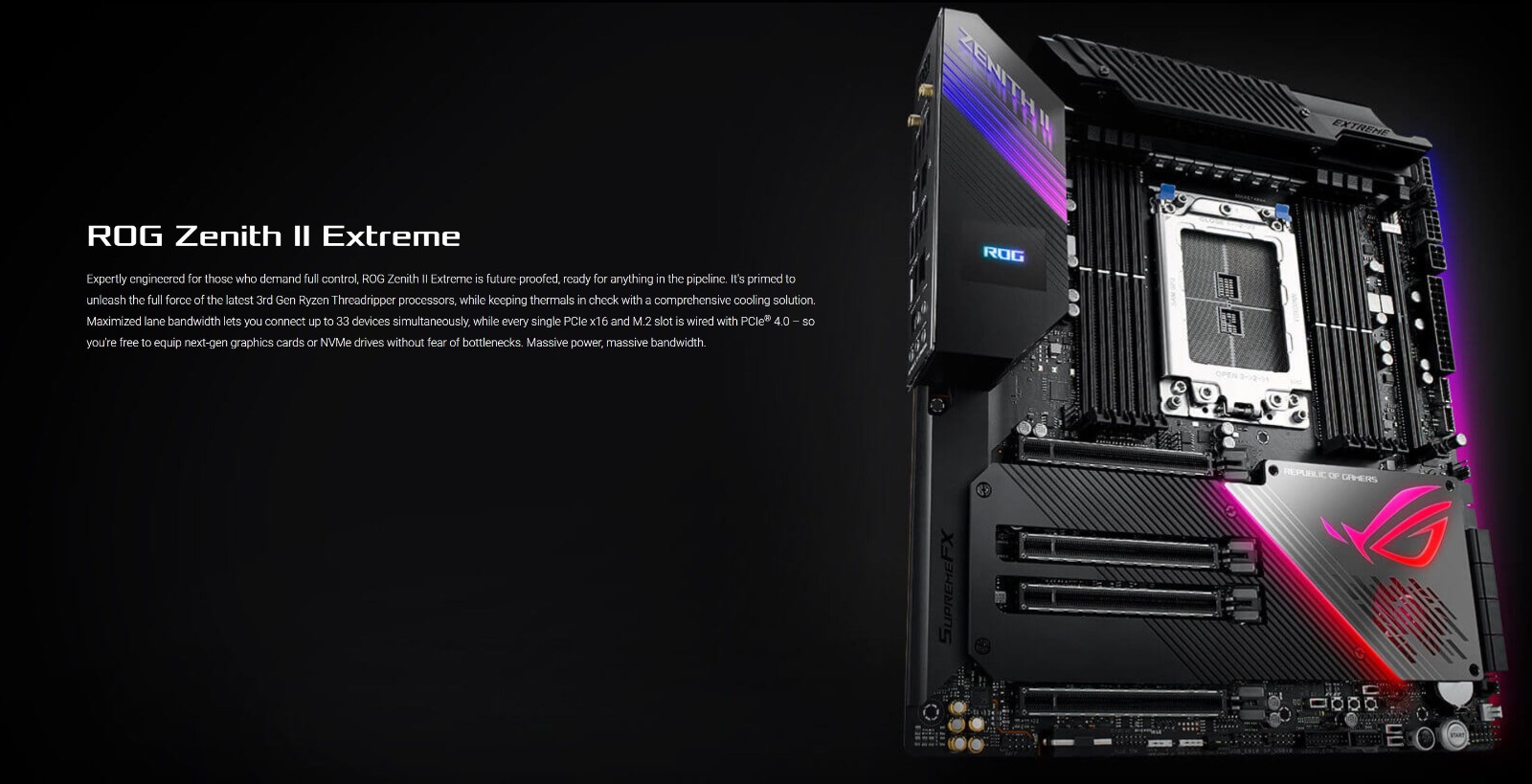

Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
  • Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
  • Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
  • Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
  • Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
$1,469.0
RRP:$1,539.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-2 Days excluding Weekends



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard
  • Model Number:
    ROG ZENITH II EXTREME
  • Brand:
  • Manufacturer Warranty:
    3 Year
  • Description

    AMD TRX40 E-ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper, with 16 power stages, PCIe 4.0, Wi-Fi 6 (802.11ax), 10 Gbps Ethernet, USB3.2 Gen2x2, dual USB 3.2 front panel connector, five M.2, SATA and Aura Sync RGB

    Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI

    Robust power delivery: Optimized power solution with 16 Infineon TDA21472 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors

    Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone

    High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology

    Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers

    Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors

    DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard

    Asus ROG Zenith II Extreme TRX40 E-ATX Motherboard


    SPECIFICATIONS:

    CPU

    Build in AMD Socket sTRX4 for 3rd   Gen AMD Ryzen™ Threadripper™ Series Desktop Processors

    * Refer to www.asus.com for CPU   support list

    Chipset

    AMD TRX40

    Multi-GPU   Support

    Supports NVIDIA® 3-Way SLI®   Technology

    Supports AMD 3-Way CrossFireX™   Technology

    Expansion   Slots

    3rd Gen AMD Ryzen™ Threadripper™ Series   Desktop processors

    4 x PCIe 4.0 (x16, x16/x16,   x16/x8/x16, x16/x8/x16/x8)

    Storage

    3rd Gen AMD Ryzen™ Threadripper™   Series Desktop processors :

    1 x ROG DIMM.2 Module supports 2   M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices   support(SATA & PCIe 4.0 x4 mode)

    2 x M.2 Socket 3, with M Key, type   2242/2260/2280 (PCIe 4.0 x4 mode)*1

    3rd Gen AMD Ryzen™ Threadripper™   Series Desktop processors :

    1 x M.2 Socket 3, with M Key, type   2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2

    Support Raid 0, 1, 10

    AMD TRX40 chipset :

    4 x SATA 6Gb/s port(s),

    ASMedia® SATA 6Gb/s controller :

    4 x SATA 6Gb/s port(s),

    LAN

    Intel® I211-AT, 1 x Gigabit LAN   Controller(s)

    Aquantia AQC-107 10G

    Anti-surge LANGuard

    ROG GameFirst V Technology

    Wireless   Data Network

    Intel® Wi-Fi 6 AX200

    Wi-Fi 802.11 ax, Bluetooth® 5.0

    Supports dual band frequency 2.4/5   GHz

    Supports 2x2 MU-MIMO

    Supports channel bandwidth: HT20/HT40/HT80/HT160.   Up to 1.73Gbps transfer speed

    Bluetooth



    Bluetooth® 5.0

    Audio

    ROG SupremeFX 8-Channel High   Definition Audio CODEC S1220

    - Impedance sense for front and   rear headphone outputs

    - Supports : Jack-detection,   Multi-streaming, Front Panel MIC Jack-retasking

    - High quality 120 dB SNR stereo   playback output 108 dB SNR recording input

    - ESS® ESS9018Q2C

    Audio Feature :

    - SupremeFX Shielding™ Technology

    - Sonic Studio III + Sonic Studio   Virtual Mixer

    - DTS® Sound Unbound

    - LED-illuminated design - Brighten   up your build with the gorgeous illuminated audio trace path.

    - Sonic Radar III

    USB Ports

    3rd Gen AMD Ryzen™ Threadripper™   Processors :

    4 x USB 3.2 Gen 2 port(s) (4 at   back panel, red)

    AMD TRX40 chipset :

    2 x USB 3.2 Gen 2 front panel   connector port(s)

    AMD TRX40 chipset :

    3 x USB 3.2 Gen 2 port(s) (3 at   back panel, red, 2 x Type-A+1 x Type-C)

    AMD TRX40 chipset :

    3 x USB 2.0 port(s)

    ASMedia® USB 3.2 Gen 1 controller :

    8 x USB 3.2 Gen 1 port(s) (4 at   back panel, blue)

    ASMedia® USB 3.2 Gen2x2 controller   :

    1 x USB 3.2 Gen 2x2 (up to 20Gbps)   port(s) (1 at back panel, , Type-C)

    ROG   Exclusive Features

    Clear CMOS button

    ROG CPU-Z

    ROG Aura

    - Aura Lighting Control

    - Aura RGB Strip Headers

    Extreme Engine Digi+ :

    - Infineon TDA21472 Power Stage

    - 10K Black Metallic Capacitors

    ROG Extreme OC kit :

    - OptiMem III

    - ReTry button

    - Safe Boot button

    - Start button

    - Slow Mode

    - LN2 Mode

    - FlexKey Button

    ProbeIt

    UEFI BIOS features :

    - ROG SSD Secure Erase

    - Graphic Card Information Preview

    USB BIOS FlashBack™

    ROG Patented Pre-mounted I/O Shield

    ROG Exclusive Software

    - Mem Tweakit

    - RAMCache III

    - GameFirst V

    - Sonic Radar III

    - Sonic Studio III + Sonic Studio   Virtual Mixer

    ROG DIMM.2 module with heatsink

    ROG Aluminum heatsink cover

    Special   Features

    ASUS Dual Intelligent Processors   5-Way Optimization by Dual Intelligent Processors 5 :

    - 5-Way Optimization tuning key   perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

    Gamer's Guardian:

    - DRAM Overcurrent Protection

    - 10K Black Metallic Capacitors

    - DIGI+ VRM

    - SafeSlot

    - ESD Guards on LAN, Audio,and USB   ports

    LiveDash OLED 1.77 ”

    AURA :

    - Aura Lighting Control

    - Aura RGB Strip Headers

    - Addressable Gen 2 Header

    ASUS Exclusive Features :

    - AI Suite 3

    - Ai Charger+

    - Pre-mounted I/O Shield

    - ASUS EZ Flash 3

    - ASUS C.P.R.(CPU Parameter Recall)

    - BIOS FlashBack™ Button

    - Clear CMOS Button

    ASUS Q-Design :

    - ASUS Q-Code

    - ASUS Q-LED (CPU, DRAM, VGA, Boot   Device LED, HDD LED)

    - ASUS Q-Slot

    - ASUS Q-DIMM

    - ASUS Q-Connector

    Digi+VRM

    MemOK! II

    Armoury Crate

    Back I/O   Ports

    1 x LAN (RJ45) port(s)

    1 x USB 3.2 Gen 2x2 (up to 20Gbps)   ports (Type-C)

    4 x USB 3.2 Gen 1 blue

    5 x USB 3.2 Gen 2 (red) (3 x   Type-A+1 x Type-C)

    1 x Optical S/PDIF out

    1 x Clear CMOS button(s)

    1 x USB BIOS FlashBack™ Button(s)

    5 x LED-illuminated audio jacks

    1 x Aquantia AQC-107 10G LAN port

    Internal I/O   Ports



    2 x Aura RGB Strip Header

    2 x Addressable Gen 2 header(s)

    2 x USB 3.2 Gen 1(up to 5Gbps)   connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

    2 x USB 2.0 connector(s) support(s)   additional 3 USB 2.0 port(s)

    1 x M.2 Socket 3 with M key, type   2242/2260/2280 storage devices(support PCIe 4.0 x4 mode)

    1 x M.2 Socket 3 with M key, type   2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode)

    1 x TPM header

    8 x SATA 6Gb/s connector(s)

    1 x CPU Fan connector(s)

    1 x CPU OPT Fan connector(s)

    2 x Chassis Fan connector(s)

    1 x H_AMP fan connector

    2 x W_PUMP+ connector

    1 x WB_SENSOR

    1 x 6-pin EATX 12 V Power connector

    1 x 24-pin EATX Power connector(s)

    2 x 8-pin EATX 12V Power connectors

    1 x 4-pin EZ_PLUG Power   connector(s)

    1 x Front panel audio connector(s)   (AAFP)

    7 x ProbeIt Measurement Points

    1 x BIOS Switch button(s)

    1 x Node Connector(s)

    1 x LN2 Mode jumper(s)

    1 x Safe Boot button

    1 x ReTry button

    1 x M.2 socket pre-installed with a   Wi-Fi/Bluetooth module

    1 x W_IN header

    1 x W_OUT header

    1 x W_FLOW header

    2 x USB 3.2 Gen 2 front panel   connector

    1 x Speaker connector

    1 x DIMM.2 Slot supports 2 M.2   drives (2242-22110)

    1 x RSVD Switch

    1 x Start button

    1 x FlexKey button

    1 x FS Mode switch

    1 x M.2_3 cold storage Switch

    1 x Chipset Fan Header

    1 x VRM_HS_FAN Header

    BIOS

    2 x 128 Mb Flash ROM, UEFI AMI   BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

    Manageability

    WOL , PXE

    Operating System

    Windows® 10 64-bit

    Form Factor

    Extended ATX Form Factor

    12.2 inch x 10.9 inch ( 31 cm x   27.7 cm )

    Note



    * When the M.2_2 on board is   operating in PCIe mode,PCIE x16_4 will running at x4 mode

    ** When the M.2_3 on board is   operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled

    *** Supports PCIE RAID   configurations via onboard M.2 storages
