Cooler Master Master Case MC500M Tempered Glass RGB Mid Tower Case
REMASTERED. GET MORE, PAY LESS!
UPGRADED MASTERCASE MC500M
WITH FREEFORM™ MODULAR SYSTEM
MC-SERIES WITH FREEFORM™ MODULAR SYSTEM

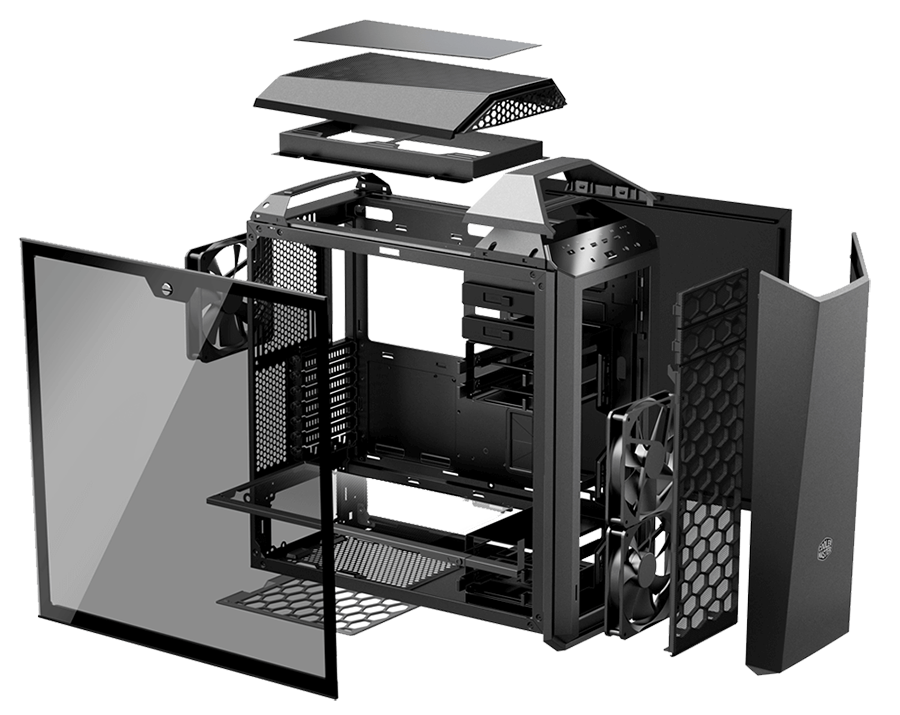

We want you to have absolute control over how your case looks and functions. The FreeForm™ Modular System of the MC-Series lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors. Each choice changes the look and feel of the case, but also the flexibility of the interior layout.
FRAME WITH REMOVABLE PARTITION PLATE
The option to relocate the M.port and remove the partition plate gives you the freedom to adjust the inside of the case.
With the partition plate installed, you isolate the power supply and cables for a clean build.
Comes pre-installed with a RGB LED partition plate and with a fan and RGB lighting control board.
Four USB ports, including one 3.1 Type C, added buttons for LED strip and fan speed control.
Fan Speed Control
1x 3.1 Type C
|Product Name||MasterCase MC500M|
|Available Color||Dark metallic grey exterior with black interior|
|Materials||Steel, Plastic, Tempered Glass|
|Dimensions (LxWxH)||528.6 x 235 x 548mm|
|Motherboard Support||E-ATX (up to 12" x 10.7"), ATX, Micro-ATX, Mini-ITX|
|Combo 2.5" / 3.5"||4|
|Drive Bays Support||5.25"||2|
|Combo 2.5" / 3.5"||8 or 10 (with ODD bay removed)|
|I/O Port||USB 3.0 (type A) x 3, USB 3.1 (type C) x 1, Audio in/out (support HD audio)|
Fan Speed & RGB control buttons
|Pre-installed Fan(s)||Front||140mm x 2 (1200RPM)|
|Rear||140mm x 1 (1200RPM)|
|Fan Support||Front||120 / 140mm x 3|
|Rear||120 / 140mm x 1|
|Top||120 / 140mm x 2|
|Radiator Support||Front||120 / 140 / 240 / 280 / 360mm|
|Rear||120 / 140mm|
|Top||120 / 140 / 240 / 280mm|
|Clearance||VGA||412mm (without 3.5" HDD cage)|
296mm (with 3.5" HDD cage)
|Cable Routing||Behind MB Tray||25mm - 35mm|
|Dust Filters||Top, Front, Bottom|
|Power Supply Support||Bottom mount, ATX|
|Lighting Support||RGB control Board x 1 (Cycle, Static, M/B modes) to pre-built LED partition plate Two additional connections available|
