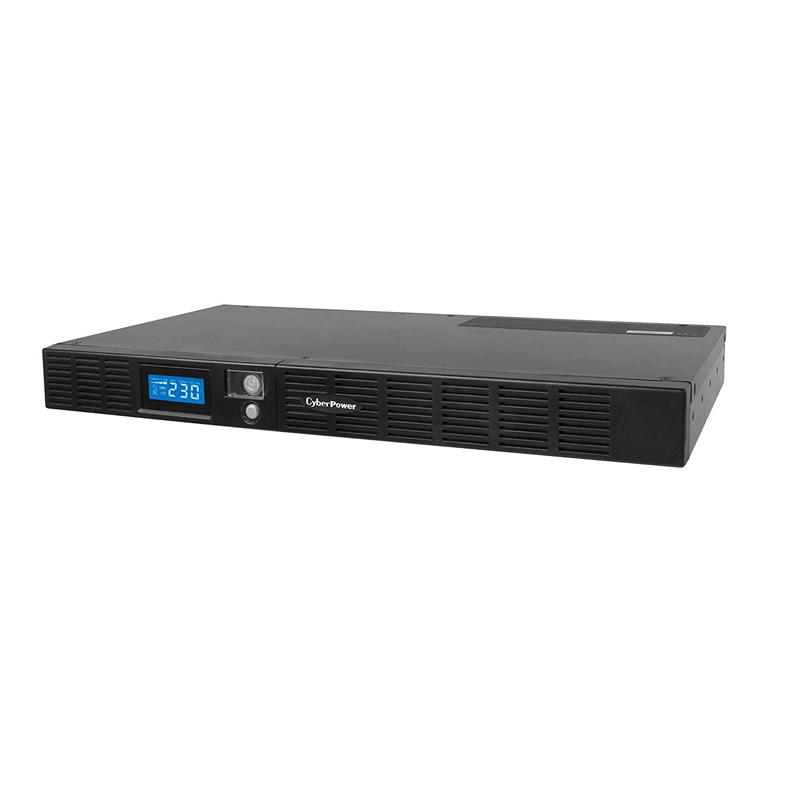

CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line

CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line
  • CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line
  • CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line
$375.0
RRP:$499.0    Save $124.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line
  • Model Number:
    OR600ELCDRM1U
  • Brand:
  • Manufacturer Warranty:
    12 Months
  • Description

    CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line


    CyberPower OR600ELCDRM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.


    The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.


    FEATURES

    • Line-interactive UPS Topology

    • Energy Saving Technology

    • Simulated Sine Wave Output

    • Automatic Voltage Regulation (AVR)

    • Overload Protection

    • Hot-swappable Batteries

    • Surge and Spike Protection

    • EMI and RFI Filtration

    • Phone/Fax/Modem/DSL/Network Protection

    • LCD Status Display

    • USB Connectivity Port

    • Serial Connectivity Port

    • PowerPanel® Management Software

    • SNMP/HTTP Remote Management Capability (Optional)

    • Rack Mount Form Factor


    CyberPower Smart App Office Rackmount Series LCD 600VA / 360W 1U Line

    Specifications


    GENERAL

    Phase
    Single Phase
    UPS Topology
    Line-interactive
    Energy Saving Technology
    GreenPower UPS™ Bypass Technology

    INPUT

    Nominal Input Voltage ( Vac )
    230
    Input Voltage Range ( Vac )
    160 ~ 263
    Input Frequency ( Hz )
    50 ± 3
    60 ± 3
    Input Frequency Detection
    Auto-sensing
    Rated Input Current ( A )
    10
    Input Connector Type
    IEC C14
    Detachable Power Cord Plug Type
    IEC C14
    AU
    Power Cord Length (ft.)
    6
    Power Cord Length (m.)
    1.83

    OUTPUT

    Capacity (VA)
    600
    Capacity (Watts)
    360
    On Battery Waveform
    Simulated Sine Wave
    On Battery Voltage(s) ( Vac )
    230 ± 10%
    On Battery Frequency ( Hz )
    50 ± 1%
    60 ± 1%
    Power Factor
    0.6
    Automatic Voltage Regulation (AVR)
    Single Boost
    Overload Protection
    Internal Current Limiting , Circuit Breaker
    Outlet(s) - Total
    6
    Outlet Type
    IEC C13 6
    Outlet(s) - Battery & Surge Protected
    4
    Outlet(s) - Surge-Only Protected
    2
    Typical Transfer Time ( ms )
    4

    BATTERY

    Runtime at Half Load ( min )
    13
    Runtime at Full Load ( min )
    4
    Typical Recharge Time ( Hours )
    8
    Start On Battery
    Yes
    User-replaceable
    Yes
    Hot-swappable
    Yes
    Battery Type
    Sealed Lead-acid
    Battery Cartridge
    RBP0019
    RBP Quantity ( pcs )
    1

    SURGE PROTECTION & FILTERING

    Surge Suppression ( Joules )
    405
    EMI/RFI Filtration
    Yes
    Phone/Network Protection RJ11/RJ45 (Combo)
    1-in, 1-out

    MANAGEMENT & COMMUNICATIONS

    LCD Panel
    Yes
    LCD Information Display
    Operation Type , Power Status , Battery Status , Load Status , Other Information
    LCD Setting & Control
    Mode Setting , Alarm Setting , Input & Output
    LED Indicators
    Power On
    HID Compliant USB Port(s)
    1
    Serial Port
    Dry Contact
    Audible Alarms
    Battery Mode , Low Battery , Overload
    Management Cable ( pcs )
    Power Cord x5 , USB Cable x1 , Serial Cable x1 , Phone Line x1
    Power Management Software
    PowerPanel® Business
    SNMP/HTTP Remote Monitoring
    Yes - with optional RMCARD205

    PHYSICAL

    Form Factor
    Rack
    Enclosure Construction
    Metal
    Color
    Black
    Rackmount Ears
    Yes

    PHYSICAL SIZE - UPS MODULE

    Dimensions (WxHxD) (in.)
    17.0 x 1.7 x 9.3
    Dimensions (WxHxD) (mm.)
    433 x 44 x 235
    Weight (lbs.)
    17.9
    Weight (kg.)
    8.1
    Installed Rack Height ( U )
    1

    SHIPPING DIMENSIONS

    Dimensions (WxHxD) (in.)
    20.9 x 6.1 x 12.4
    Dimensions (WxHxD) (mm.)
    530 x 155 x 315
    Weight (lbs.)
    23.4
    Weight (kg.)
    10.6

    ENVIRONMENTAL

    Operating Temperature (°F)
    32 ~ 104
    Operating Temperature (°C)
    0 ~ 40
    Operating Relative Humidity (Non-condensing) ( % )
    0 ~ 95
    Operating Elevation ( feet/meters )
    0-10,000 feet (0-3,000 meters)
    Storage Temperature (°F)
    5 ~ 113
    Storage Temperature (°C)
    -15 ~ 45
    Storage Relative Humidity (Non-condensing) ( % )
    0 ~ 95
    Storage Elevation ( feet/meters )
    0-50,000 feet (0-15,000 meters)
    Online Thermal Dissipation ( BTU/hr )
    20

    CERTIFICATIONS

    Certifications
    CE , EAC , RCM
    RoHS
    Yes

    WARRANTY

    Product Warranty Period (Year)
    2
    Battery Warranty Period (Year)
    2
