Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB

Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB
  • Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB
$439.0
RRP:$449.0    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB
  • Model Number:
    DV2762vac
  • Brand:
  • Manufacturer Warranty:
    12 Months
  • Description

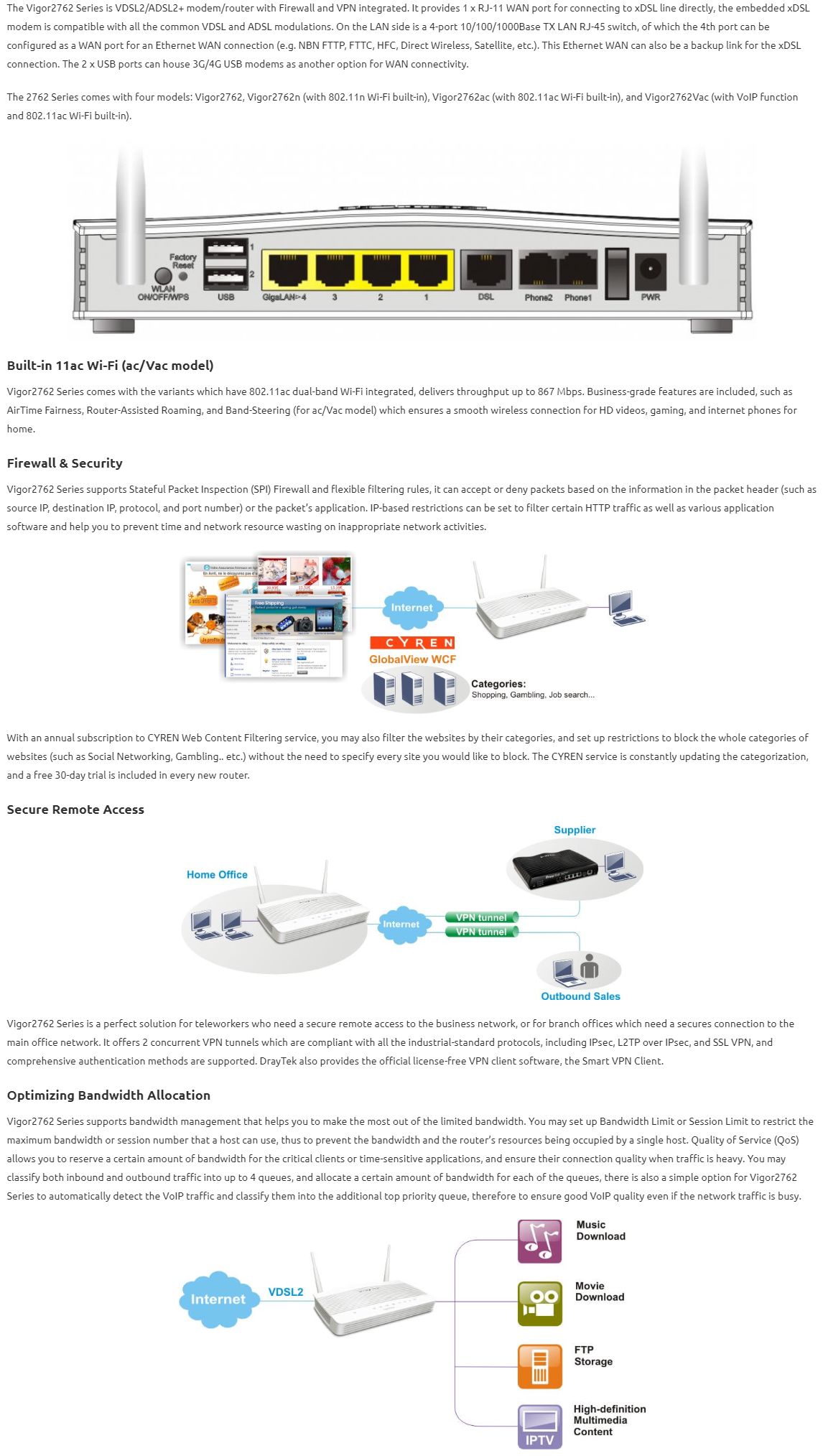

    Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB


    • NBN (National Broadband Network – Australia) Ready

    • UFB (Ultra-Fast Broadband – New Zealand) Ready

    • 1 x VDSL2/ADSL2+ WAN port

    • 1 x selectable Gigabit WAN/LAN port

    • 4 x Gigabit Ethernet LAN ports with 30,000 NAT sessions

    • 2 x USB ports for 3G/4G LTE mobile broadband access, USB printer and storage

    • VDSL2 vectoring

    • IPv6 & IPv4

    • Object-based SPI Firewall, CSM (Content Security Management) and QoS for network security

    • 2 x VPN tunnels (convertible to 2 x SSL-VPN tunnels)


    • Integrated IEEE 802.11ac (AC1200)  wireless Access Point

    • SIP VoIP (2 x FXS ports)

    • Supports VigorACS 2 Central Management System for remote management

    • 2 years back to base warranty


    Draytek Vigor2762VAC VDSL2/ADSL2+ VPN Firewall Router 4xGigabit LAN WAN Port 2xUSB

    Specifications


    Hardware

    • Interface
      • 1 x RJ-11 WAN port
      • 4 x GbE RJ-45 LAN port (Port 4 can be configured as WAN 2)
      • 2 x USB 2.0 port
      • 2 FXS RJ-11 (Vac model)
      • Factory Reset Button
      • Power On/Off Switch
    • Power
      • DC 12V @2A
      • Max. Power Consumption: 24 watts
    • Temperature
      • Operating: 0°C ~ 45°C
      • Storage: -25°C ~ 70°C
    • Humidity
      • Operating: 10% ~ 90% (non-condensing)
    • Dimension (mm)
      • 207 (L) x 131 (W) x 42 (H)
        (8.1″ x 5.2″ x 1.7″)

    WAN

    • VDSL
      • G.993.1 (VDSL)
      • G.993.2 (VDSL2)
      • G997.1
      • DSL Forum: TR-114
      • Band Plan: G.997
      • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
      • OLR, UPBO, DBPO, US0
      • Vetoring
      • Loop diagnostic mode
    • ADSL
      • ANSI T1.413
      • G.992.1 G.dmt
      • G.992.2 G.lite
      • G.992.3 (ADSL2)
      • G.992.3 Annex M/J (ADSL2)
      • G.992.5 (ADSL2+)
      • G.992.5 Annex M/J (ADSL2+)
    • Network Access
      • PPPoE
      • PPPoA
      • MPoA
      • 802.1Q VLAN Tagging
      • Multi-PVC for Triple-Play
      • PPPoE Pass-Through
      • MPoA Bridge
    • IPv4
      • PPP Client
      • DHCP Client
      • Static IP
      • PPTP/L2TP
    • IPv6
      • PPP
      • DHCPv6 Client
      • Static IPv6
      • TSPC
      • AICCU (AYIYA/Heartbeat)
      • 6rd
      • 6in4 Static Tunnel
    • Failover
      • WAN 2 Backup
      • 3G/4G Backup
    • Connectivity Detection
      • ARP
      • Ping Probe

    LAN Managment

    • VLAN
      • Up to 8 VLAN
      • 802.1Q Tag-based VLAN
      • Port-based VLAN
    • DHCP Server
      • Up to 2 IP Subnet
      • Bind-IP-to-MAC
      • Custom DHCP Option
    • DNS Control
      • Local Name Server
      • Conditional DNS Forwarding
    • Hotspot Portal
      • Authentication by Click-Through, Social Login, and SMS PIN
      • Custom Portal Page
      • URL Redirection
      • Walled-Garden

    Routing

    • Static Route
      • 20 IPv4 Static Routing Rules
      • 40 IPv6 Static Routing Rules
      • Inter-VLAN Routing
    • Dynamic Routing
      • RIP v1/v2
    • Policy-Based Routing
      • 50 Route Policy
      • Criteria: Protocol, Source IP, Destination IP, Destination Port
      • Failover options

    VPN

      • 2 x VPN tunnels (convertible to 2 x SSL-VPN tunnels)
    • Protocols
      • PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2
      • LAN-to-LAN VPN
      • Teleworker-to-LAN VPN
    • Encryption
      • MPPE 40/128 bit
      • Hardware-based AES/DES/3DES
    • Authentication
      • PAP, CHAP, MS-CHAP, MS-CHAPv2
      • MD5, SHA-1
      • Pre-Shared Key, Digital Signature (X.509)
      • mOTP
    • Advanced
      • Hub-and-Spoke Topology support
      • NAT-Traversal (NAT-T)
      • Dead Peer Detection (DPD)

    Firewall

    • NAT
      • One-to-One Port Redirection
      • Range-to-Range Port Redirection
      • Open Ports
      • Port Triggering
      • DMZ Host
      • ALG: SIP, RTSP, FTP, TFTP, H.323
      • VPN Pass-Through: PPTP, L2TP, IPsec
      • UPnP
    • Firewall Filter
      • IP-based Firewall Policy
      • User-based Firewall Policy
      • Object-based Configuration
      • Schedule Enable/Disable
    • Content Filtering
      • URL Keyword Filtering
      • Category Filtering (subscription required)
      • DNS Keyword Filtering
      • Web Features Filtering
    • Attack Protection
      • DoS Defense

    Network Features

    • Network Features
      • Dynamic DNS
      • Bonjour
      • IGMP Proxy
      • IGMP Snooping
      • SMB File Sharing
    • User Authentication
      • Local User Database
      • RADIUS Server

    Wireless LAN (n/ac/Vac)

    • Standards
      • 802.11b/g/n (2.4G)
      • 802.11 a/n/ac (5G)
    • SSID
      • Up to 4 SSID per radio
      • SSID-based 802.1Q VLAN
    • Radio Management
      • Auto Channel Selection
      • Auto Channel Width (2.4G)
      • Wi-Fi Scheduling
    • Security
      • WEP, WEP-802.1x, WPA-PSK, WPA-802.1x, WPA2-PSK, WPA2-802.1x
      • Hidden SSID
      • Client Isolation
      • Access Control per SSID
      • WPS
    • Advanced
      • AirTime Fairness
      • Band Steering (ac/Vac model)
      • WMM
    • WDS
      • Bridge
      • Repeater/li>

    VoIP (Vac model)

    • General
      • Protocol: SIP, RTP/RTCP
      • 12 SIP Registrars
      • G.168 line echo-cancellation
    • Call Services
      • Call Hold/Retrieve
      • Call Waiting
      • Call Transfer
      • Call Forwarding (Always, Busy, No Answer, Busy or No Answer)
      • CLIR (Calling Line Identification Restriction)
      • Call Barring (Incoming / Outgoing)
      • DND (Do Not Disturb)
      • MWI (Message Waiting Indicator) (RFC-3842)
      • Hotline
      • Intercom (dial 10 or 20 for Phone 1 or Phone 2)
    • Dial Plan
      • Press for more than 5 seconds then release the button to do the factory reset.
      • Digit Map
      • Call Barring
      • Regional
    • Voice Codec
      • G.711 a/u law
      • G.726 32kbps
      • G.729 A/B
    • DTMF Tone
      • In band
      • Out band (RFC-2833)
      • SIP Info

    Management

    • Configuration
      • Web Interface: HTTP, HTTPS
      • Command-Line Interface: Telnet, SSH
      • TR-069 via VigorACS
      • Config File Export & Import
      • Compliant with the config file exported from Vigor2760
    • F/W Upgrade
      • TFTP, HTTP, TR-069
    • Admin Access Control
      • 2-level Administration Privilege
      • Access from the Internet
      • Access List
    • Monitoring
      • Dashboard
      • Syslog
      • SMS/E-mail Alert
      • TR-069 via VigorACS
      • SNMP v2, v2c, v3
    • Central Management
      • Wireless Controller for up to 2 VigorAP
