Fractal Design 140mm Dynamic GP Fan - White

Fractal Design 140mm Dynamic GP Fan - White
  • Fractal Design 140mm Dynamic GP Fan - White
  • Fractal Design 140mm Dynamic GP Fan - White
$14.0
RRP:$19.0    Save $5.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Fractal Design 140mm Dynamic GP Fan - White
  • Model Number:
    FD-FAN-DYN-GP14-WT
  • Brand:
  • Manufacturer Warranty:
    24 Months
  • Description

    Fractal Design 140mm Dynamic GP Fan - White


    Fractal Design Dynamic GP-12 and GP-14 are true all-purpose fans, with good airflow in any usage scenario. Their customized design lends to a beautifully aesthetic fan to help keep your system cool, yet quiet.


    Designed with leading technology techniques in mind, the Dynamic Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements, resulting in a fantastic price-performance ratio.


    The Dynamic Series fans come in two color combinations: all-black and the classic Fractal Design signature color scheme with white blades and black frame.

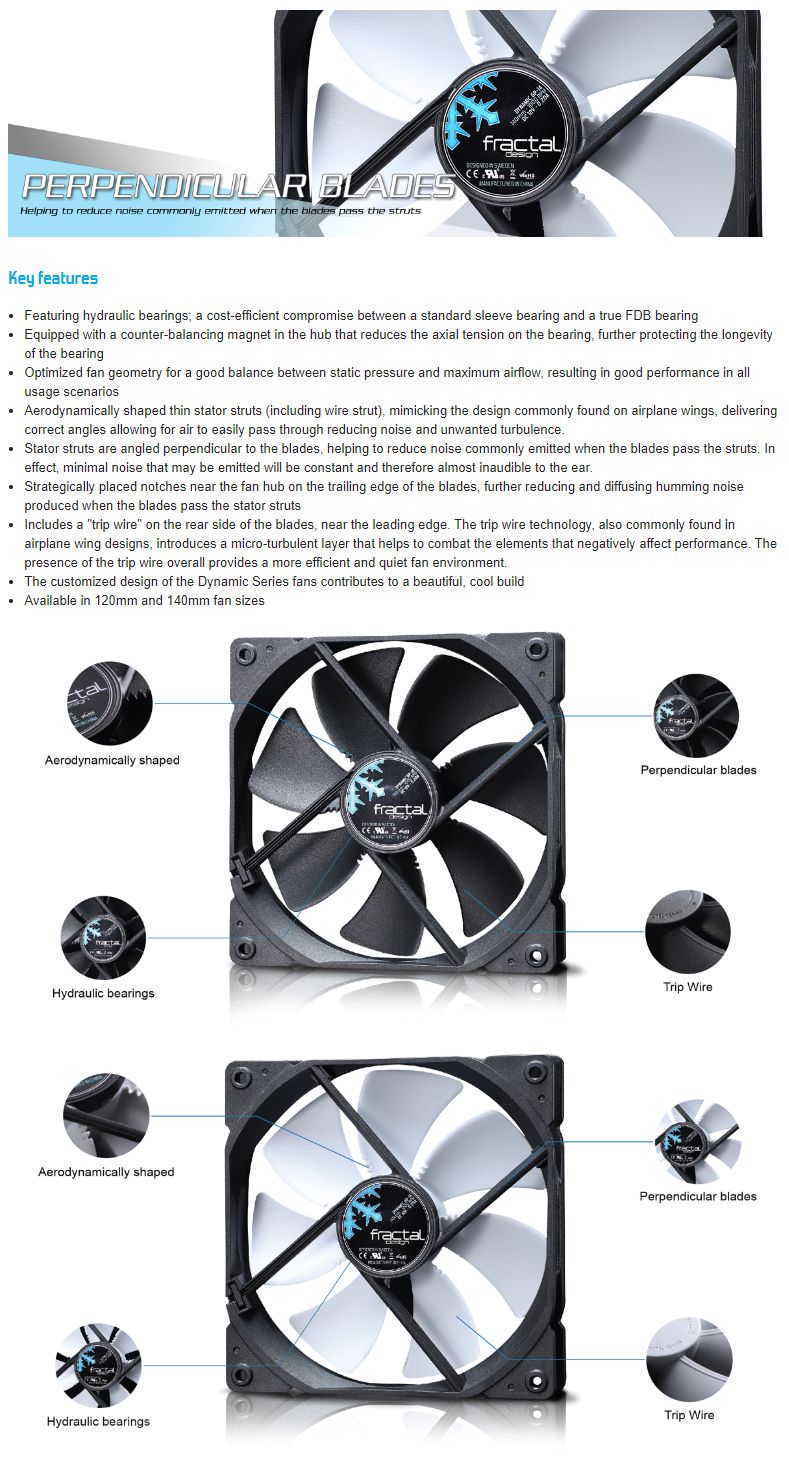

    Key Features:


    • Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve bearing and a true FDB bearing

    • Equipped with a counter-balancing magnet in the hub that reduces the axial tension on the bearing, further protecting the longevity of the bearing

    • Optimized fan geometry for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios

    • Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence.

    • Stator struts are angled perpendicular to the blades, helping to reduce noise commonly emitted when the blades pass the struts. In effect, minimal noise that may be emitted will be constant and therefore almost inaudible to the ear.

    • Strategically placed notches near the fan hub on the trailing edge of the blades, further reducing and diffusing humming noise produced when the blades pass the stator struts

    • Includes a "trip wire" on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient and quiet fan environment.

    • The customized design of the Dynamic Series fans contributes to a beautiful, cool build

    • Available in 120mm and 140mm fan sizes


    Fractal Design 140mm Dynamic GP Fan - White


    Specifications



    Fan

    GP-12

    GP-14

    Size [mm]

    120*120*25mm

    140*140*25mm

    Colors available

    White blades, black frame

    Black blades, black frame

    White blades, black frame

    Black blades, black frame

    Screw hole pattern

    105*105mm

    125*125mm

    Connector

    3-pin fan header

    3-pin fan header

    Bearing

    Hydraulic

    Hydraulic

    Number of blades

    7

    7

    Rotational speed [RPM]

    1200

    1000

    Acoustical noise [dB (A)]

    19.4

    18.9

    Maximum air flow [CFM]

    52.3

    68.4

    Maximum pressure [mm H2O]

    0.88

    0.71

    Actual input power [W]

    1.44

    1.7

    Maximum rated input current [A]

    0.18

    0.20

    Nominal input voltage [V]

    12

    12

    Minimum startup voltage [V]

    4

    4

    MTBF [hours]

    40,000

    40,000

    Unit weight [g]

    119

    142

    Package weight [g]

    160

    190

    Cable length [mm]

    500

    500

    Cable type

    Black ribbon cable

    Black ribbon cable

    Packaging dimensions [mm]

    ( Including hanging tab)

    180*122*26

    200*142*26

    Packaging dimensions [mm]

    (Excluding hanging tab )

    147*122*26

    167*142*26


    Package contents:


    • Dynamic Series fan

    • Screw pack with 4 metal fan screws
