Gigabyte Brix Mini PC Kit i5- 8250U DDR4(0/2) 1xSATA-2.5" M.2 WL-AC USB3.1 3YR

Gigabyte Brix Mini PC Kit i5- 8250U DDR4(0/2) 1xSATA-2.5" M.2 WL-AC USB3.1 3YR
  • Gigabyte Brix Mini PC Kit i5- 8250U DDR4(0/2) 1xSATA-2.5" M.2 WL-AC USB3.1 3YR
$599.0
RRP:$617.0    Save $18.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1 business day



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Products name:
    Gigabyte Brix Mini PC Kit i5- 8250U DDR4(0/2) 1xSATA-2.5" M.2 WL-AC USB3.1 3YR
  • Model #:
    GB-BRI5H-8250
  • Brand:
  • Warranty:
    36 Months
  • Description


    Gigabyte Brix Mini PC Kit i5- 8250U DDR4(0/2) 1xSATA-2.5" M.2 WL-AC USB3.1 3YR


    • Features Intel® Core™ Quad core i5-8250U

    • Ultra compact PC design at only 0.63L (46.8 x 112.6 x 119.4mm)

    • Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)

    • 1 x M.2 SSD (2280) slot

    • 2 x SO-DIMM DDR4 slots

    • Intel® IEEE 802.11ac, Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card

    • HDMI plus Mini DisplayPort Outputs (Supports dual displays)

    • 2 x USB 3.1 (1 x USB Type-C™)

    • 2 x USB 3.0

    • Intel Gigabit LAN

    • Dual Array Microphone

    • Headphone Jack

    • VESA Mounting Bracket (75 x 75mm + 100 x 100mm)


    * Wireless module inclusion may vary based on local distribution.



    The Perfect Fit for Any Space

    Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.


    • The Perfect Compact Home PC

    • Vertical Markets

    • An Ultimate Graphics Powerhouse

    • Powerful Commercial Applications

    • At the Office

    • Simpler and Smarter Digital Life


    Intel® 8th Generation Core™ Processors

    GIGABYTE BRIX supports 8th Generation Intel® Quad-core processors which feature power-efficient 15W Intel® Core i5 and i7 models. From a simple internet access point to a high end multimedia station, the GIGABYTE BRIX provides a broad range of usage scenarios and the ultimate space flexibility . Energy efficient Quad-core delivers up to 40% faster performance compared to 7th gen processors!



    Intel Turbo Boost Technology

    GIGABYTE BRIX offers more computing power than ever with Intel's new 14nm processors, which comes with Intel® Turbo Boost Technology 2.0. It accelerates processor and graphics performance for peak loads, automatically allowing processor cores to run faster than the rated operating frequency if they're operating below power, current, and temperature specification limits, gives users an extra burst of performance when needed. In addition, the integrated memory controller provides a direct connection between the DDR4 2400MHz memory and the processor for fast data processing.


    Processor NumberCores/
    Threads
    Base Freq (GHz)Max Single Core Turbo (GHz)Max Dual Core Turbo (GHz)Max Quad Core Turbo (GHz)GraphicsGraphics Base/Max Freq (MHz)DDR4 Memory Speed (MHz)L3 Cache
    i7-8550U4/81.84.04.03.7Intel UHD Graphics 620300/115024008MB
    i5-8250U4/81.63.43.43.4Intel UHD Graphics 620300/115024006MB


    Connecting the Future - USB Type-C™: The World's Next Universal Connector


    • Reversible USB Type-C™ with USB 3.1

      The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed.

    • USB 3.1 and Network Connectivity

      GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.

    • Fast USB 3.1 Solution

      The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.



    SuperSpeed 4K HD Entertainment

    • Supporting the Newest Standards in Multimedia

      GIGABYTE ensures users won’t be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2* users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.

      * HDMI port support HDMI 2.0 and HDCP 2.2.

    • Multi-display productivity with HDMI 2.0 & DisplayPort++

      BRIX supports up to three independent displays through HDMI 2.0 and a DisplayPort ++ without the need for an additional graphics card. Support for three display is only possible with daisy-chain connections through Display Port++.


    Graphics that Captivate

    Intel® HD Graphics deliver 10% more performance than its predecessor. With the new media engine users are able to, watch, create, edit, share and game all with captivating visuals. This media engine offers HEVC 10-bit hardware acceleration which improves upon the 4K viewing and content creation performance significantly versus previous generation processors. The BRIX now has the ability to drive premium content up to 4K UHD, so users can enjoy amazing and vibrant multimedia experiences on compatible displays.


    2.5" Hard Drive Support

    Utilizing SATA III 6 Gb/s high speed data transfer technology, the GIGABYTE BRIXs supports the installation of one 2.5” SATA 6Gbps HDD or Solid State Drive (SSD) and one M.2 2280 SSD module. This allows for optimized storage configurations which combine fast M.2 performance with larger capacity 2.5” hard drive.

    *Feature may vary by model.


    Join The Optane Revolution

    GIGABYTE BRIX supports Intel’s latest Optane™ technology, which provides advantages including high throughput, low latency, high quality of service, and high endurance. This solution comes in a module format and uses Intel Optane technology, based on 3D XPoint™ Memory Media along with the Intel RST driver. Optane™ memory accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This non-volatile memory transforms the everyday PC to a performance driven system.


    * Product features may vary by model.



    With Intel® Ready Mode Technology You Can…


    • Access Your Digital Files - From Anywhere, Anytime

      Get remote access to your PC through applications on your phone and tablet to download photos, video, large files and more, no matter where you are.

    • Get Help From Your Digital Assistant Just by Asking

      An always available PC complements Microsoft Windows® 10 enabled experiences Cortana*. When you need Cortana*, all you have to do is say "Hey Cortana," and your digital assistant is instantly at your service.

    • Keep Everything Up-to-Date With Automatic Syncing

      Set your Intel® Ready Mode Technology - equipped PC to sync and store photos and files across devices automatically when you arrive at home or the office. And application updates? They're automatic too, which means you'll always work with the latest versions of your favorite tools.


    Support Cortana

    GIGABYTE BRIX with built-in dual array microphone can support Windows10 Cortana. Cortana is your digital agent, she'll help you get things done. The more you use Cortana, the more personalized your experience will be. To get started, type a question in the search box, or select the microphone and talk to Cortana. If you’re not sure what to say, you’ll see suggestions both on your lock screen and in Cortana home when you select the search box on the taskbar.



    VESA Support

    Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.


    ____

    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.


    SPECIFICATIONS



    • Dimension
      46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7")
    • Motherboard Size
      105 x 110 mm
    • CPU
      Intel® Core™ Quad Core i5-8250U
      3.4GHz
    • Memory
      2 x SO-DIMM DDR4 slots
      2400MHz
      Max. 64GB
    • LAN
      Gigabit LAN (Intel i219V)
    • Wifi Card
      Intel® Dual Band Wireless-AC 3168
    • Graphics
      Intel® UHD Graphics 620
    • Audio
      Realtek ALC255
    • HDMI Resolution (Max.)
      HDMI2.0a ws HDCP 2.2
      4096 x 2304 @ 60Hz
    • Mini DP Resolution (Max.)
      DP1.2a ws HDCP 2.2
      4096 x 2304 @ 60Hz
    • Expansion Slots
      1 x M.2 slot (2280_storage) PCIe X4 /SATA Support Optane memory
      1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

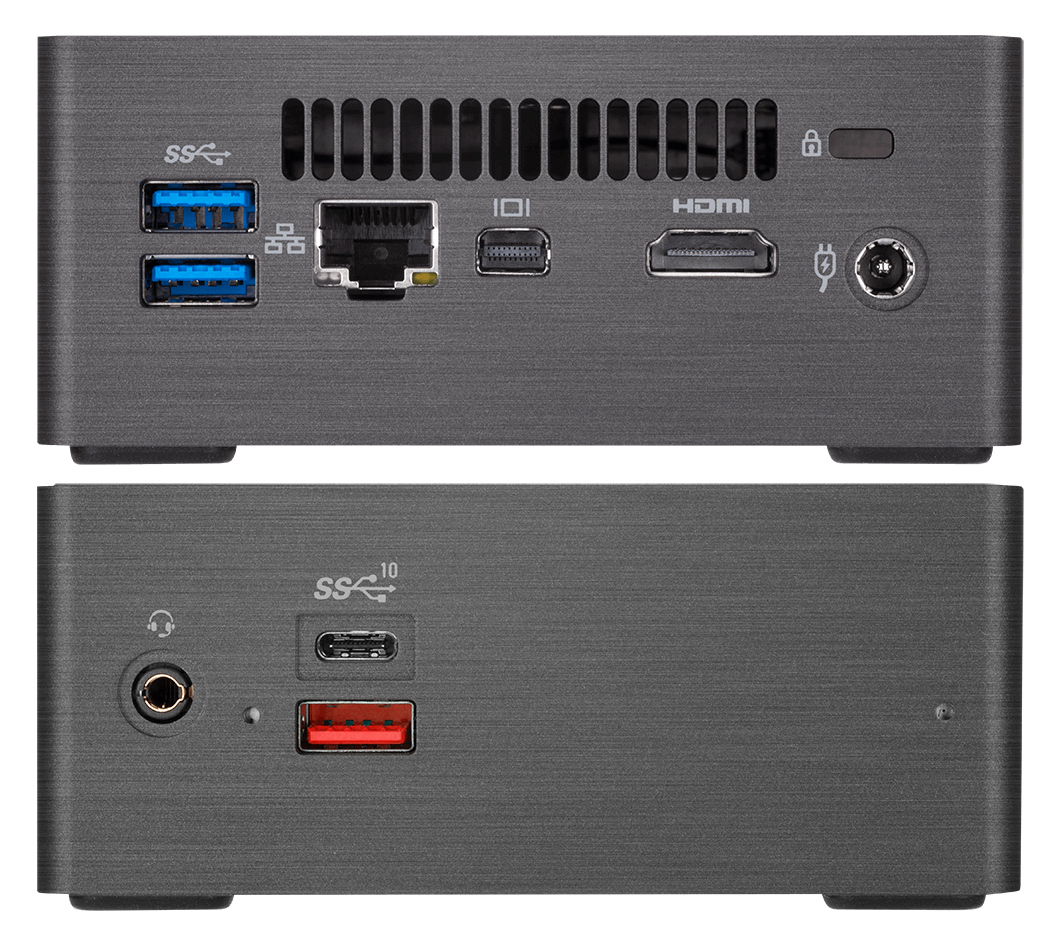

    • Front I/O
      1 x USB 3.1 type C
      1 x USB3.1
      1 x head phone jack with MIC
      1 x Dual array Microphone
    • Rear I/O
      1 x HDMI(2.0a)
      1 x Mini DisplayPort (1.2)
      2 x USB 3.0
      1 x RJ45
      1 x DC-In
      1 x Kensington lock slot
    • Storage
      Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
    • USB3.1
      Asmedia 3142
    • Power Supply
      Input: AC 100-240V
      Output: DC 19V
      3.42A
    • VESA
      Bracket included
      Supports 75 x 75 and 100 x 100 mm
    • Support OS
      WIN10 64bit
    • Environment
      System Environment Operating Temperature: 0°C to +35°C
      System Storage Temperature: -20°C to +60°C


    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
