Specifications

  • Product Name:
    Gigabyte Z390-D LGA 1151 ATX Motherboard
  • Model Number:
    Z390-D
  • Brand:
  • Manufacturer Warranty:
    36 Months
  • Description

    Intel Z390 D Motherboard with Advanced Thermal Design, ALC887, 2-Way CrossFire™X Multi-Graphics, GIGABYTE GAMING LAN, Smart Fan 5, NVME PCIe Gen3 x4 22110 M.2, CEC 2019


    Supports 9th and 8th Gen Intel® Core™ Processors

    Dual Channel Non-ECC Unbuffered DDR4

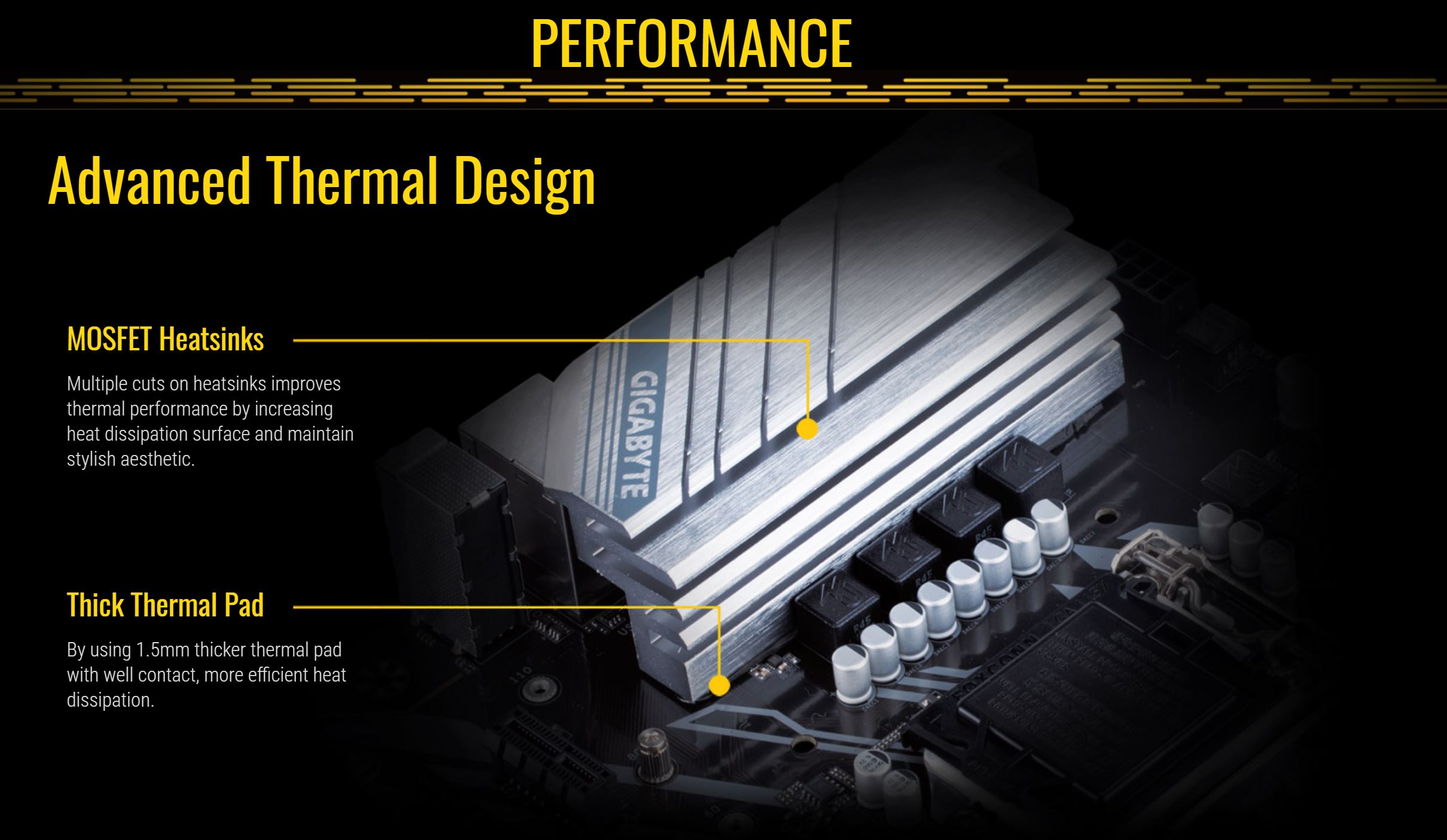

    Advanced Thermal Design

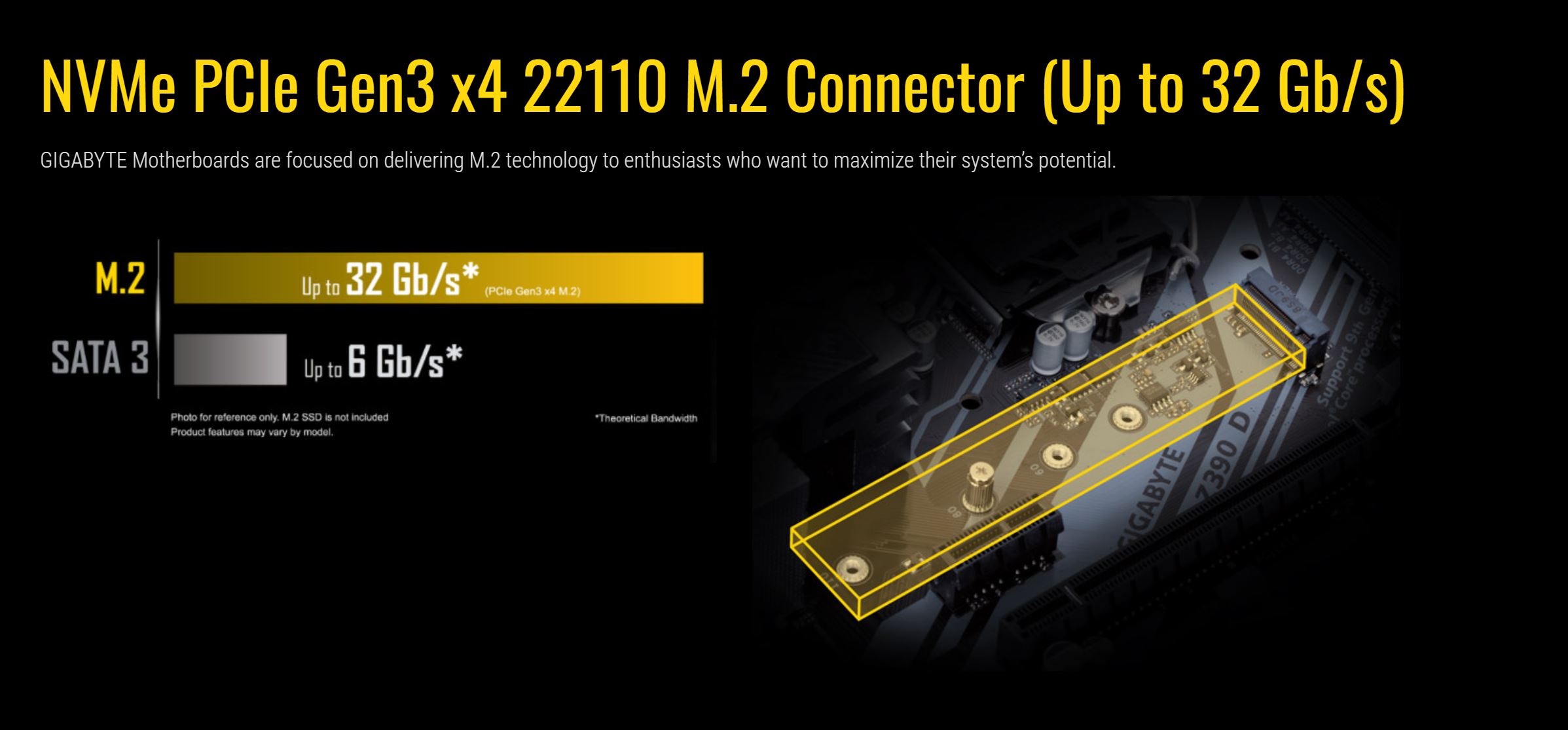

    NVMe PCIe Gen3 x4 22110 M.2 Connector

    Multi-Way Graphics Support

    GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

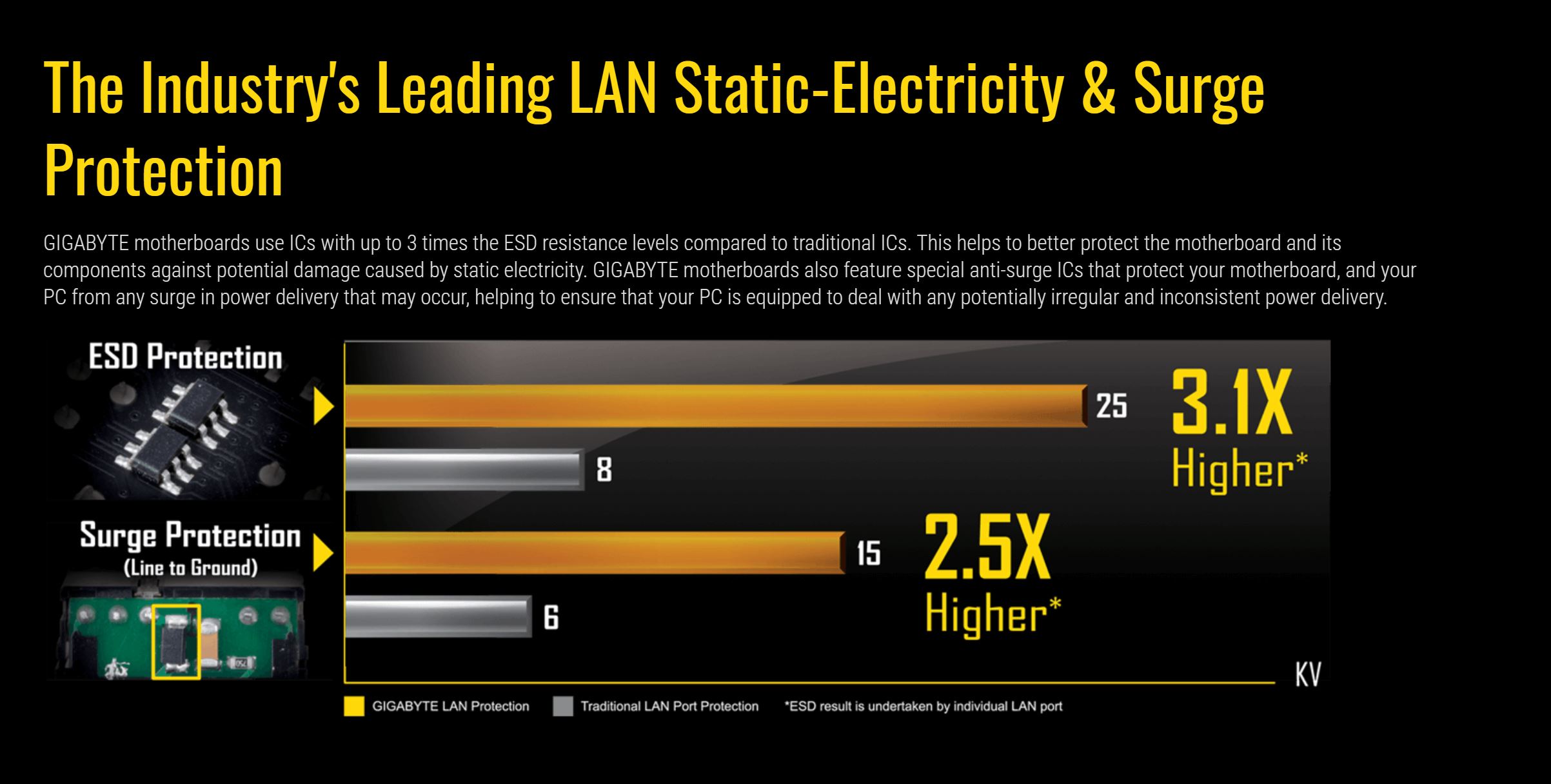

    Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

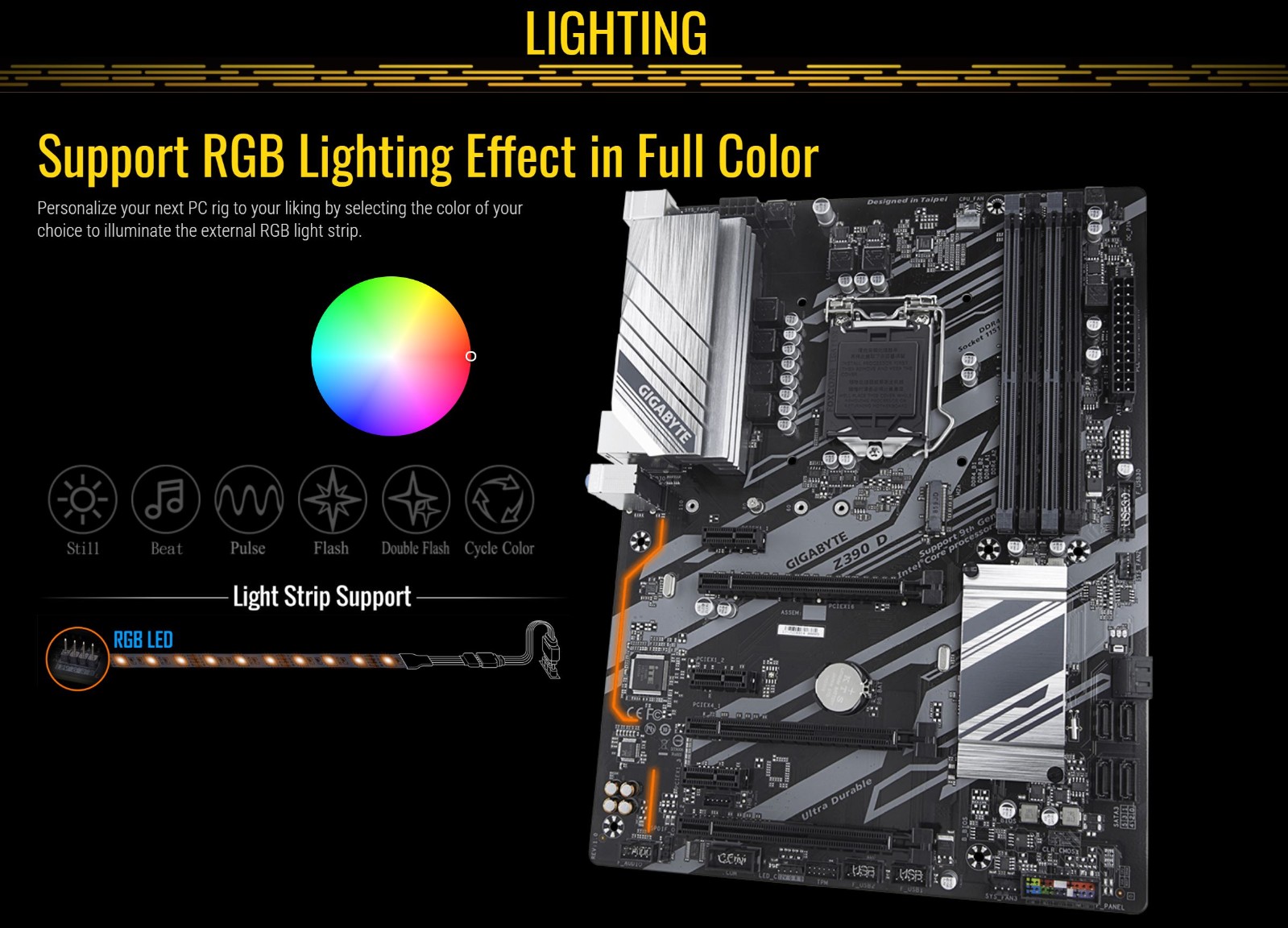

    Support RGB Light Strip in Full Colors

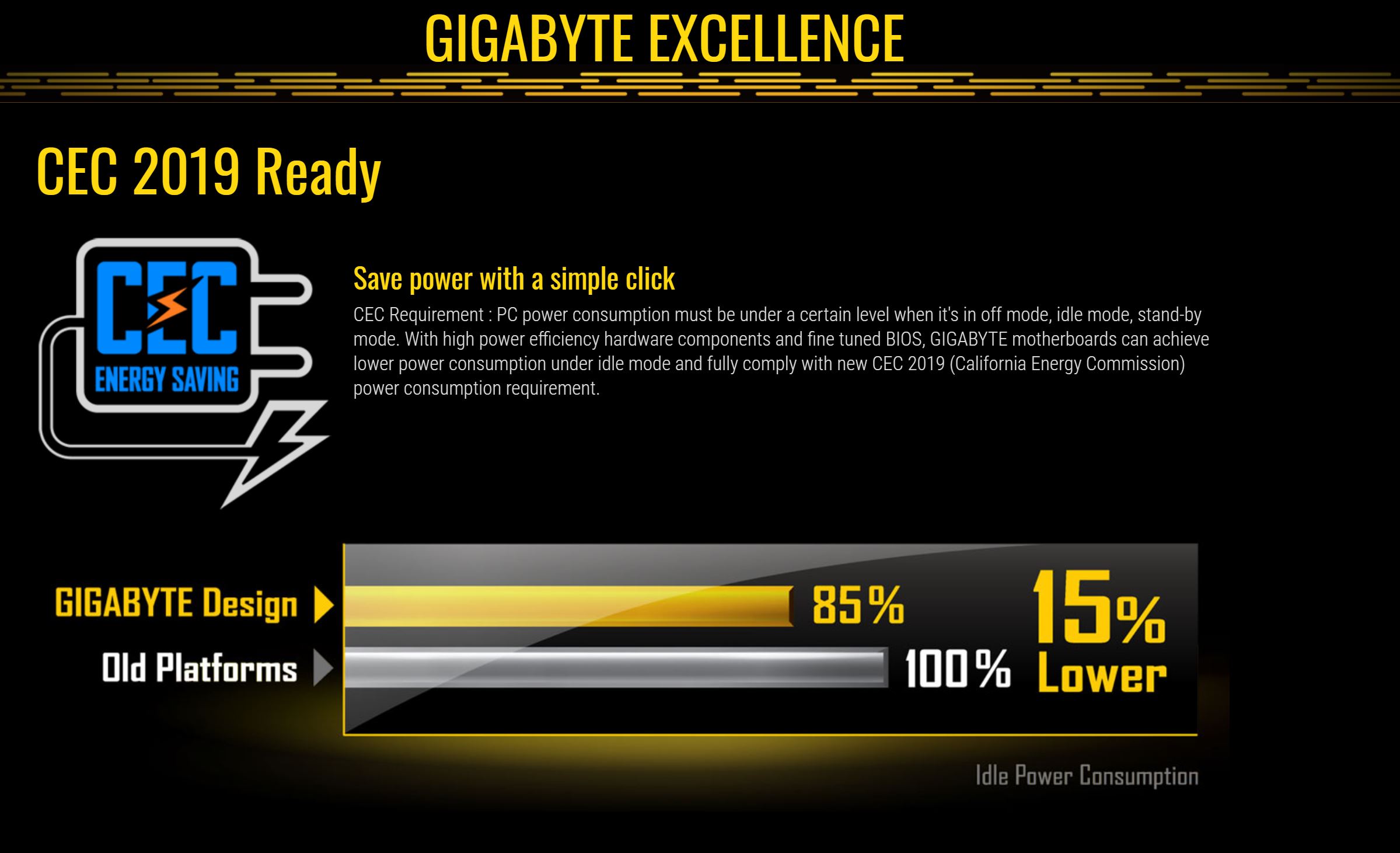

    CEC 2019 Ready, Save the Power as Easy as One Click

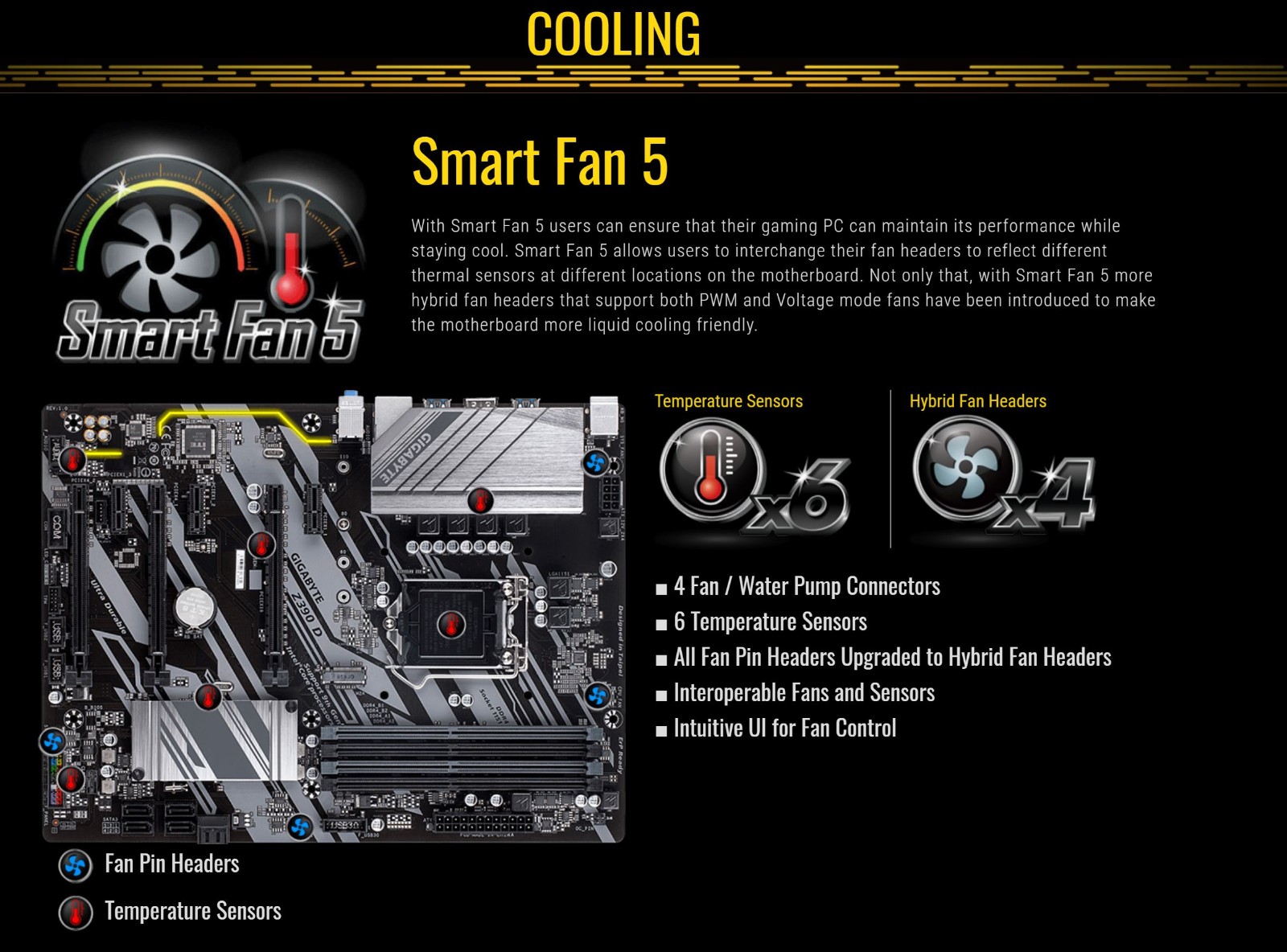

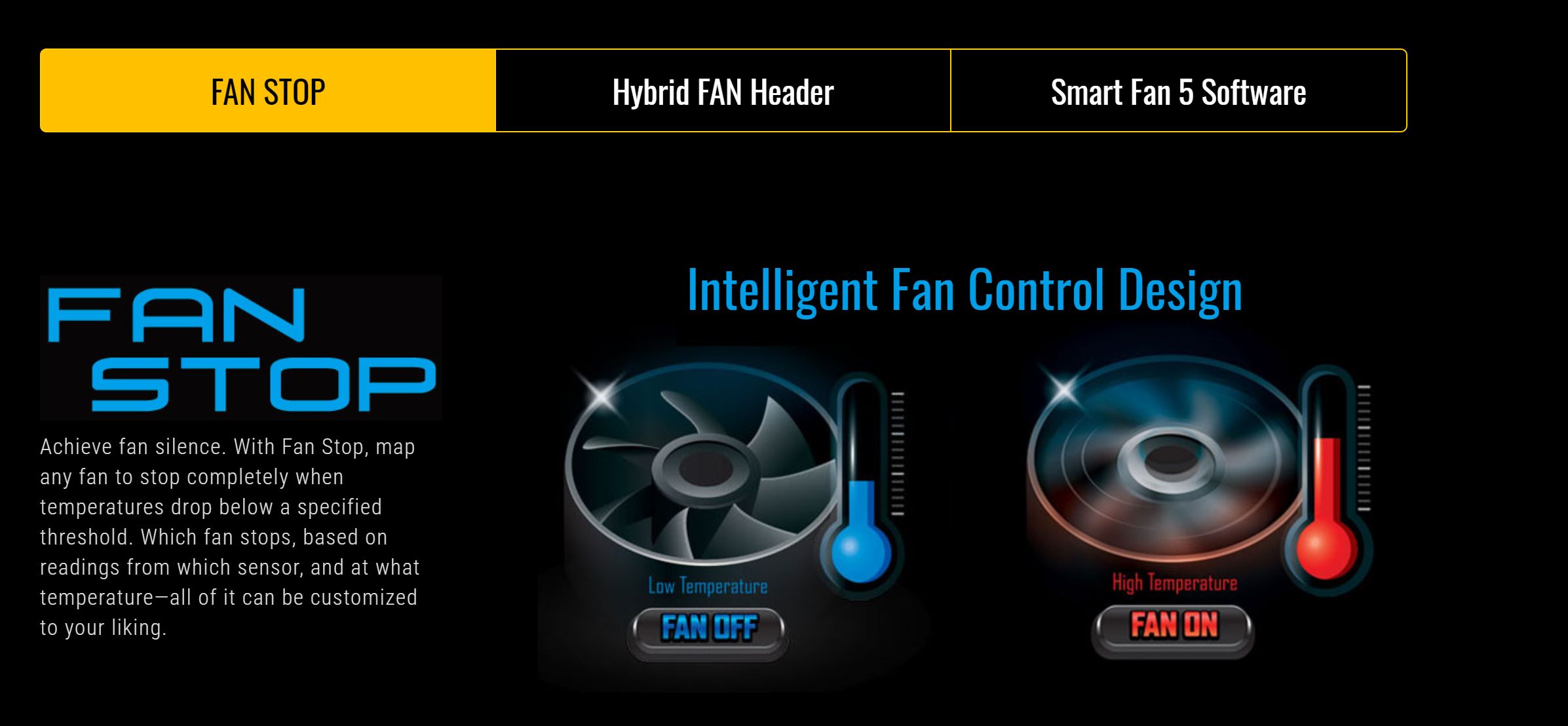

    Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

    Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

    Intel® Optane™ Memory Ready


    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard

    Gigabyte Z390-D LGA 1151 ATX Motherboard


    SPECIFICATIONS:


    CPU

    1.     Support for 9th and 8th Generation Intel® Core™ i9   processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™   i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the   LGA1151 package

    2.     L3 cache varies with CPU

    (Please refer "CPU Support List" for more   information.)

    MEMORY

    1.     4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB   single DIMM capacity)

    2.     Dual channel memory architecture

    3.     Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /   3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /   3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) /   2666 / 2400 / 2133 MHz memory modules

    4.     Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory   modules (operate in non-ECC mode)

    5.     Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16   memory modules

    6.     Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more   information.)

    ONBOARD GRAPHICS

    1 x HDMI port, supporting a maximum resolution of   4096x2160@30 Hz

    * Support for HDMI 1.4 version and HDCP 2.2



    Maximum shared memory of 1 GB

    AUDIO

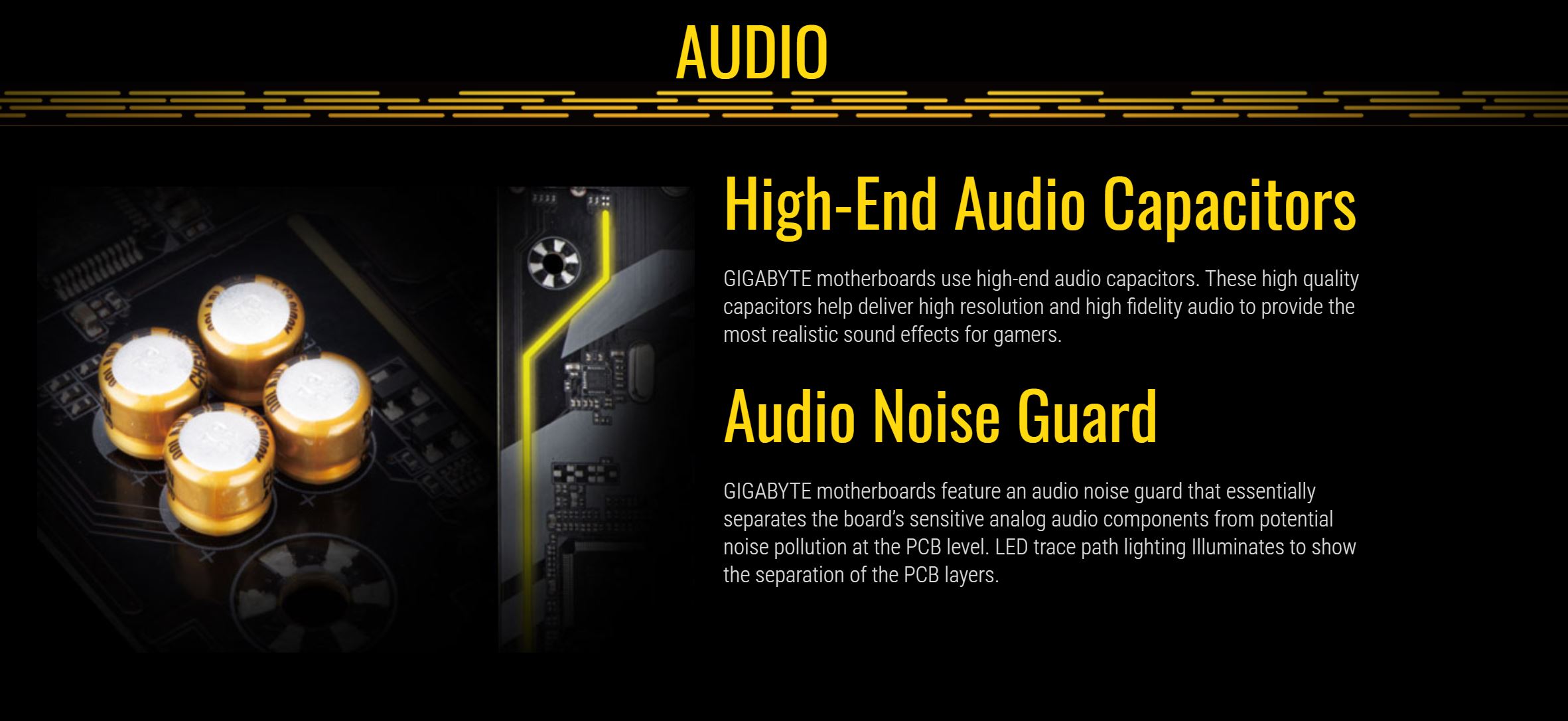

    1.     Realtek® ALC887 codec

    2.     High Definition Audio

    3.     2/4/5.1/7.1-channel

    * To configure 7.1-channel audio, you have to use an HD   front panel audio module and enable the multi-channel audio feature through   the audio driver.

    4.     Support for S/PDIF Out



    LAN

    Realtek® GbE LAN chip (10/100/1000 Mbit)

    EXPANSION SLOTS

    1.     1 x PCI Express x16 slot, running at x16 (PCIEX16)

    * For optimum performance, if only one PCI Express   graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    2.     2 x PCI Express x16 slots, running at x4   (PCIEX4_1/PCIEX4_2)

    3.     3 x PCI Express x1 slots

    (All of the PCI Express slots conform to PCI Express   3.0 standard.)

    MULTI-GRAPHICS TECHNOLOGY

    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD   CrossFire™ technologies

    STORAGE INTERFACE

    Chipset:

    1.     1 x M.2 connector (Socket 3, M key, type   2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

    2.     6 x SATA 6Gb/s connectors

    3.     Support for RAID 0, RAID 1, RAID 5, and RAID 10

    * Refer to "1-7 Internal Connectors," for the   installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready

    USB

    Chipset:

    1.     8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2   ports available through the internal USB header)

    2.     4 x USB 2.0/1.1 ports available through the internal   USB headers

    INTERNAL I/O CONNECTORS

    1.     1 x 24-pin ATX main power connector

    2.     1 x 8-pin ATX 12V power connector

    3.     1 x M.2 Socket 3 connector

    4.     6 x SATA 6Gb/s connectors

    5.     1 x CPU fan header

    6.     3 x system fan headers

    7.     1 x RGB LED strip header

    8.     1 x front panel header

    9.     1 x front panel audio header

    10.  1 x USB 3.1 Gen 1 header

    11.  2 x USB 2.0/1.1 headers

    12.  1 x S/PDIF Out header

    13.  1 x Thunderbolt™ add-in card connector

    14.  1 x Trusted Platform Module (TPM) header (2x6 pin, for   the GC-TPM2.0_S module only)

    15.  1 x serial port header

    16.  1 x Clear CMOS jumper

    BACK PANEL CONNECTORS

    1.     1 x PS/2 mouse port

    2.     1 x PS/2 Keyboard port

    3.     1 x HDMI port

    4.     6 x USB 3.1 Gen 1 ports

    5.     1 x RJ-45 port

    6.     3 x audio jacks

    I/O CONTROLLER

    iTE® I/O Controller Chip

    H/W MONITORING

    1.     Voltage detection

    2.     Temperature detection

    3.     Fan speed detection

    4.     Overheating warning

    5.     Fan fail warning

    6.     Fan speed control

    * Whether the fan speed control function is supported   will depend on the fan you install.

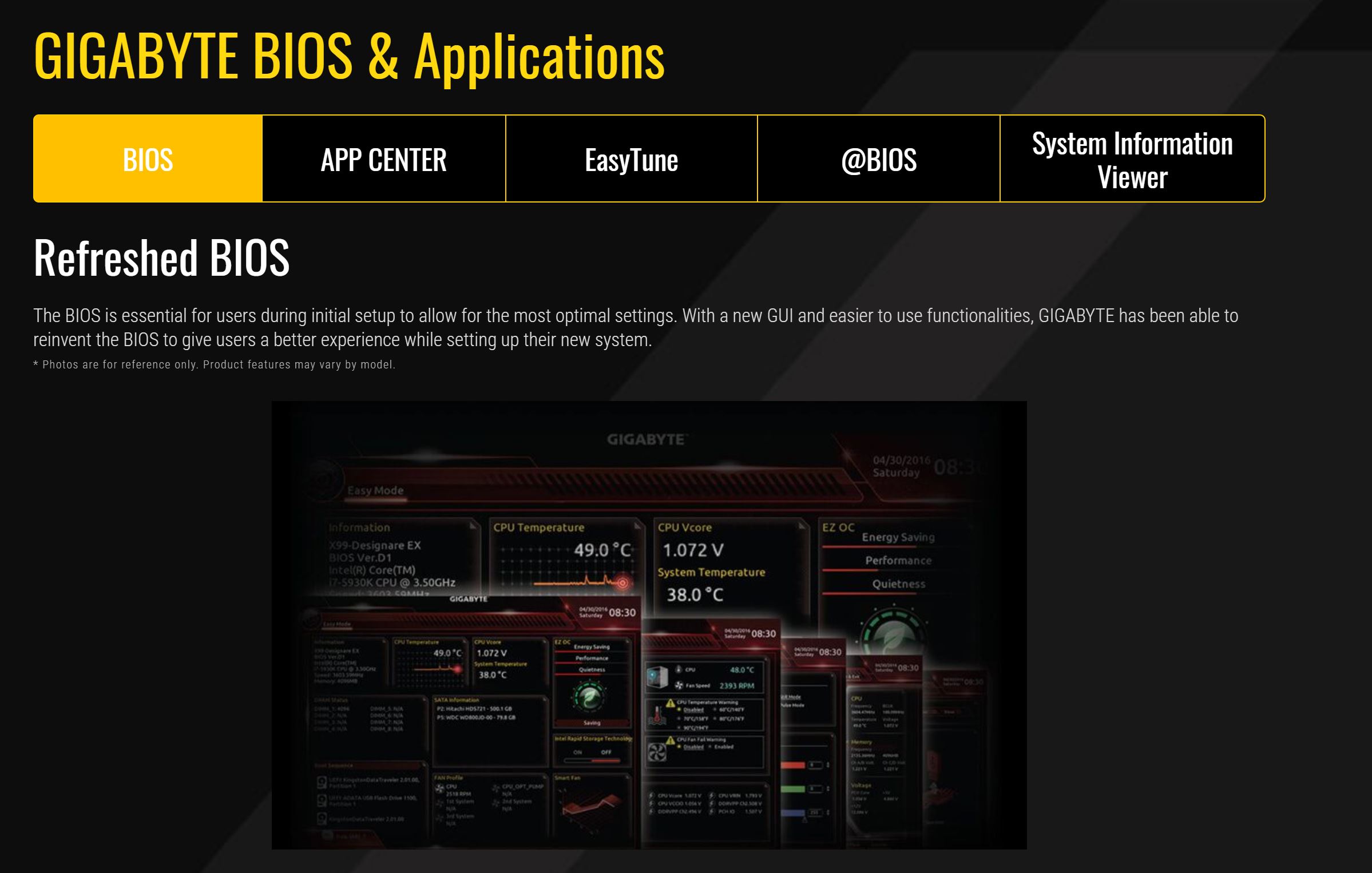

    BIOS

    1.     1 x 128 Mbit flash

    2.     Use of licensed AMI UEFI BIOS

    3.     PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    UNIQUE FEATURES

    1.     Support for APP Center

    * Available applications in APP Center may vary by   motherboard model. Supported functions of each application may also vary   depending on motherboard specifications.

    @BIOS

    Ambient LED

    AutoGreen

    Cloud Station

    EasyTune

    Easy RAID

    Fast Boot

    Game Boost

    ON/OFF Charge

    Platform Power Management

    Smart Backup

    Smart Keyboard

    Smart Survey

    System Information Viewer

    USB Blocker

    2.     Support for Q-Flash

    3.     Support for Xpress Install

    BUNDLED SOFTWARE

    1.     Norton® Internet Security (OEM version)

    2.     Realtek® 8118 Gaming LAN Bandwidth Control Utility

    OPERATING SYSTEM

    Support for Windows 10 64-bit

    FORM FACTOR

    ATX Form Factor; 30.5cm x 23.0cm
