Matrox C Series C680 PCIe x16 Six-Output Graphics Card

Matrox C Series C680 PCIe x16 Six-Output Graphics Card
  • Matrox C Series C680 PCIe x16 Six-Output Graphics Card
  • Matrox C Series C680 PCIe x16 Six-Output Graphics Card
$1,199.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Matrox C Series C680 PCIe x16 Six-Output Graphics Card
  • Model Number:
    C680-E4GBF
  • Brand:
  • Manufacturer Warranty:
    12 Months
  • Description

    Matrox C Series C680 PCIe x16 Six-Output Graphics Card

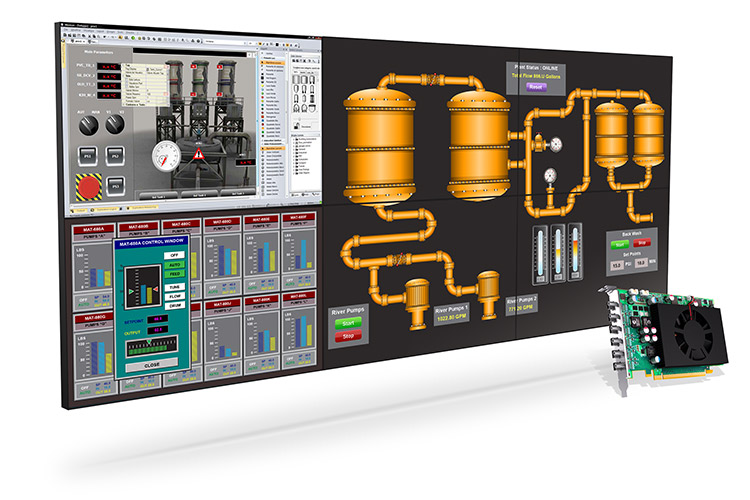

    The Matrox C680 is a single-slot, PCIe® x16 graphics card that drives up to six displays or projectors at resolutions up to 4096 x 2160 per output. The versatile, six-monitor video card can power the latest Ultra HD/4K panels as well as enable 12-monitor configurations when combined with a second Matrox C680 board. The board-to-board framelock feature ensures synchronization of all displays to reduce tearing on digital signage and video walls. With its high reliability, outstanding performance, and advanced multi-monitor capabilities, Matrox C680 delivers the best display density for demanding commercial and critical applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.


    • Drive up to six displays or projectors

    • Supports a maximum resolution of 4096 x 2160 per output

    • Experience smooth video playback and graphics performance with 4 GB of memory

    • Minimize power consumption with an energy efficient board design

    • Expand your desktop space with multi-board support to drive up to 12 displays from a single computer

    • Framelock two Matrox C680 cards together and synchronize the refresh rate across all monitors to reduce tearing1

    • Simplify cabling by daisy-chaining DisplayPort™ 1.2 MST-capable displays2

    • Customize your setup with the easy-to-use Matrox PowerDesk™ multi-display configuration and desktop management software

    • Configure displays independently from one another or select stretched desktop mode to create as a single ultra-large desktop across multiple displays

    • Clone content to show the same information on all displays

    • Select any combination of portrait or landscape and set the orientation that works best for you

    • Simplify A/V installations with advanced EDID Management

    • Prevent loose cabling with secure Mini DisplayPort connectors

    • Adjust the number of overlapping pixels with Edge Overlap to create a seamless, unified image on up to six edge blending projectors

    • Facilitate enterprise-wide deployments by installing Matrox PowerDesk & drivers across many systems without any user interaction

    • Pair C680 with Matrox Mura™ IPX Series for 4K capture and IP encode & decode

    • Manage video wall layouts, sources and more with the MuraControl™ for Windows® software (sold separately) or the MuraControl for iPad® app

    • Supports Microsoft® DirectX® 12, OpenGL® 4.4, and OpenCL™ 1.2 to run the latest professional applications

    • Protect your investment with Matrox long product life-cycles

    • Compatible with Windows® 10 (32/64), Windows 8.1 (32/64), Windows 7 (32/64), Windows Embedded Standard 7 (32/64), Server 2012 R2 (64), Server 2008 R2 (64), Linux® operating system

    • Supports Mura Control for Windows and Mura Control for iPad.


    Matrox C Series C680 PCIe x16 Six-Output Graphics Card


    Specifications

    Connectivity
    Bus TypePCIe 3.0 x16
    Form Factor (Card)Full Height/Half Length
    Bracket (Mounted)Full height bracket (ATX)
    Extra Bracket Included
    Number of Video Outputs6
    Video Output Connectors6 x Mini DisplayPort (secure)
    Video Output FormatsDisplayPort™ 1.2
    Optional Video Output Formats
    (Active adapters required
    - sold separately)
    - DVI Dual Link
    - DVI/HDMI® Single Link
    Audio Output Formats- Multi-stream audio through DisplayPort (6 streams)
    Performance
    Memory4GB GDDR 5*
    GPUAMD™
    Maximum resolution
    (per monitor)
    4096x2160 @ 30Hz (DisplayPort)
    4096x2160 @ 60Hz (DisplayPort, maximum of three)
    3840x2160 @ 30Hz (DisplayPort and HDMI)
    Cooling
    ActiveYes
    Additional Features
    HDCP ComplianceYes
    Board-to-Board Framelock1Yes
    DisplayPort 1.2 Multi-Stream Transport (MST)2Yes
    Supported Graphic Standards- OpenGL® 4.4
    - DirectX® 12
    - OpenCL™ 1.2
    PowerDesk SoftwareYes
    Independent Desktop ModeYes
    Stretched Desktop ModeYes
    Clone ModeYes
    Pivot ModeYes
    Physical/Environmental
    DimensionsLength: 16.76 cm (6.6")
    Height: 10.27 cm (4.05")
    ROHS/WEEE CompliantYes
    EMC CertificationClass B
    Requirements
    System Requirements- Single available PCIe x16 lane
    - Minimum 4GB RAM (for 1 card), 12GB RAM (for 2 cards)
    - Internet access for software installation
    - Compatible operating system
    Supported Operating Systems3- Windows® 10 32-bit
    - Windows 10 64-bit
    - Windows 8.1 32-bit
    - Windows 8.1 64-bit
    - Windows 7 32-bit
    - Windows 7 64-bit
    - Windows Embedded Standard 7 32-bit
    - Windows Embedded Standard 7 64-bit
    - Windows Server® 2012 R2 64-bit
    - Windows Server 2008 R2 64-bit
    - Linux®
    General
    Part numberC680-E4GBF*
    Warranty3 years
    What’s in the box?- Matrox C680 board
    - Quick-start guide
    - Display drivers and Matrox PowerDesk desktop management software available for download from Matrox website
    Accessories (Sold Separately)
    Mini DisplayPort to DisplayPort Adapter CableCAB-MDP-DPF
    Board-to-Board Framelock CableCAB-FL-F
    Secure Cable Solution
    DisplayPort Secure Cable SolutionSK-SLNB-4F

    * C680-E2GBF model features 2GB of memory.
    1 Available only under Microsoft Windows operating systems. Requires framelock cable (CAB-FL-F), sold separately.
    2 Requires DisplayPort 1.2 MST-capable monitor or hubs—the number of displays that can be daisy-chained depends on the resolution, timings and refresh rate of the connected monitors.
    3 Mainstream support for 32-bit Windows operating systems has ended, Matrox will provide limited support for 32-bit operating systems.
