SeaSonic 520W S12II Bronze Power Supply (SS-520GB)

SeaSonic 520W S12II Bronze Power Supply (SS-520GB)
  • SeaSonic 520W S12II Bronze Power Supply (SS-520GB)
  • SeaSonic 520W S12II Bronze Power Supply (SS-520GB)
  • SeaSonic 520W S12II Bronze Power Supply (SS-520GB)
$95.0
RRP:$132.0    Save $37.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    SeaSonic 520W S12II Bronze Power Supply (SS-520GB)
  • Model Number:
    SS-520GB
  • Brand:
  • Manufacturer Warranty:
    60 Months
  • Description

    SeaSonic 520W S12II Bronze Power Supply (SS-520GB)

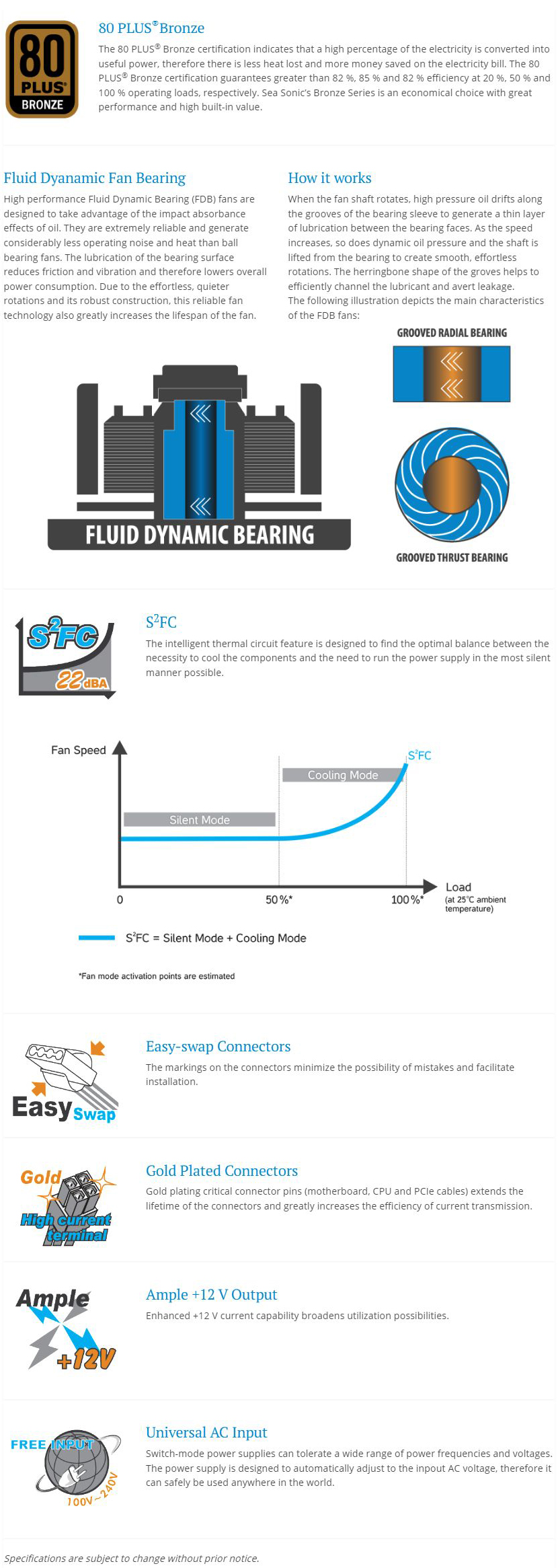

    In addition to being highly efficient, the S12II Bronze Series maintains important features such as the stable and proven Double Forward Converter circuit design for reliable power conversion. Sea Sonic’s industry leading Smart and Silent Fan Control (S2FC) achieves not only reduced operating noise but by lessening the number of fan rotations it also incurs savings on the costs of energy for its users. The use of low resistance and high temperature rated Japanese brand capacitors only adds to the reliability of this unit, which will surely keep the power flowing when needed.


    SeaSonic 520W S12II Bronze Power Supply (SS-520GB)

    S12II-520
    AC InputVoltage: 100 V - 240 V
    Current: 9 A
    Frequency: 50 Hz - 60 Hz
    DC OutputRail+3.3 V+5 V+12 V1+12 V2-12 V+5 VSB
    Maximum Power24 A24 A20 A20 A0.8 A2.5 A
    130 W480 W9.6 W12.5 W
    Total continuous power520 W
    S12II-520 Technical Specifications
    80PLUS®Bronze
    Form FactorIntel ATX 12 V
    Dimensions150 mm (W) x 140 mm (L) x 86 mm (H)
    Fan InformationFan Size120 mm
    Fan ControlSeasonic S2FC
    Fan BearingFluid Dynamic Bearing
    Life Expectancy50,000 at 40 °C, 15 % - 65 % R.H.
    Cable InformationModularityFully Wired
    Cable typeFlat black cables
    Electrical FeaturesOperating Temperature40 °C
    MTBF @ 25 °C, excl. fan150,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, SCP
    Safety and EnvironmentalSafety and EMCcTUVus, TUV, Gost-R, UkrTEST, CB , BSMI, Semko, CCC, CE, FCC, C-tick
    Environmental ComplianceEnergy Star, RoHS, WEEE, REACH
    Warranty5 Years
    Packaging information
    Units per carton5
    Individual carton size310 (L) x 115 (W) x 180 (H) mm
    Shipping carton size596 (L) x 198 (W) x 335 (H) mm


    Specifications are subject to change without prior notice.
