SeaSonic 620W S12II Bronze Power Supply (SS-620GB)

SeaSonic 620W S12II Bronze Power Supply (SS-620GB)
  • SeaSonic 620W S12II Bronze Power Supply (SS-620GB)
  • SeaSonic 620W S12II Bronze Power Supply (SS-620GB)
  • SeaSonic 620W S12II Bronze Power Supply (SS-620GB)
$99.0
RRP:$142.0    Save $43.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    SeaSonic 620W S12II Bronze Power Supply (SS-620GB)
  • Model Number:
    SS-620GB
  • Brand:
  • Manufacturer Warranty:
    60 Months
  • Description

    SeaSonic 620W S12II Bronze Power Supply (SS-620GB)

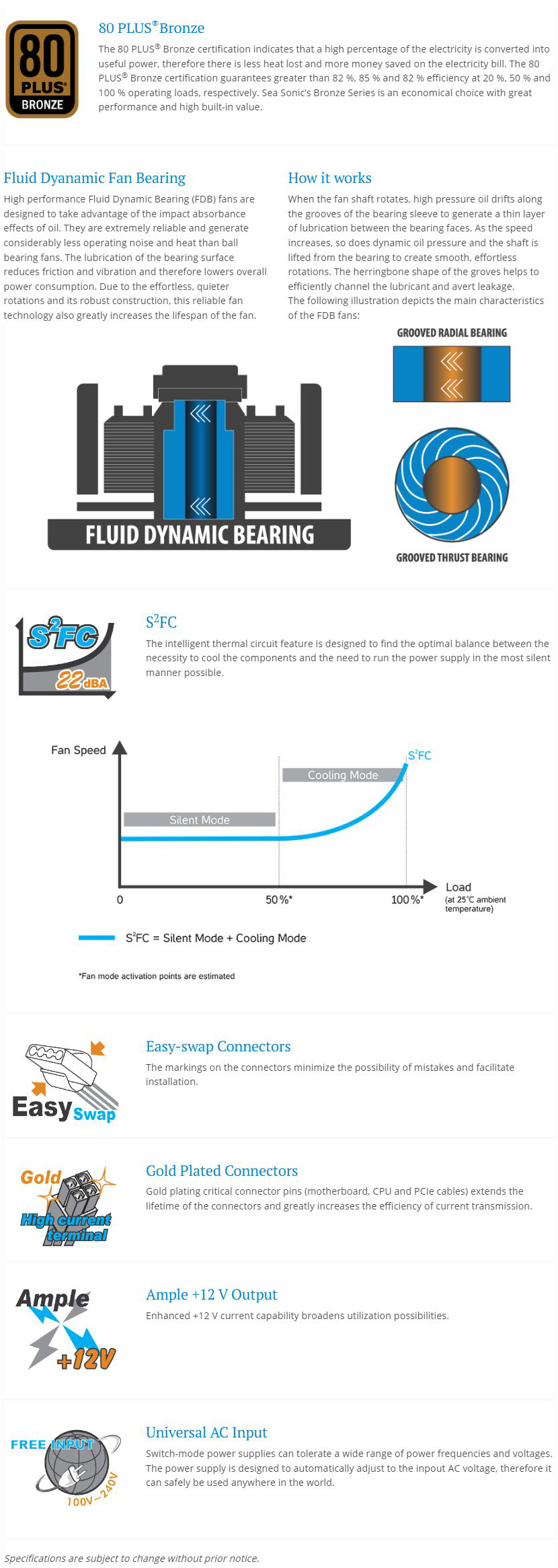

    The Seasonic S12II series needs no introduction, as this is a well-established, long-standing Seasonic series that has withstood the test of times. The S12II Bronze Series achieves the 80 PLUS® Bronze standard of providing at least 85 % power usage efficiency at 50 % operating load. This efficiency combined with active power factor correction enables this power supply to lessen energy waste. It is a reliable power supply backed with 5 years of warranty.


    SeaSonic 620W S12II Bronze Power Supply (SS-620GB)


    S12II-620
    AC InputVoltage: 100 V - 240 V
    Current: 9 A
    Frequency: 50 Hz - 60 Hz
    DC OutputRail+3.3 V+5 V+12 V1+12 V2-12 V+5 VSB
    Maximum Power24 A24 A24 A24 A0.8 A2.5 A
    130 W576 W9.6 W12.5 W
    Total continuous power620 W
    S12II-620 Technical Specifications
    80PLUS®Bronze
    Form FactorIntel ATX 12 V
    Dimensions150 mm (W) x 140 mm (L) x 86 mm (H)
    Fan InformationFan Size120 mm
    Fan ControlSeasonic S2FC
    Fan BearingFluid Dynamic Bearing
    Life Expectancy50,000 at 40 °C, 15 % - 65 % R.H.
    Cable InformationModularityFully Wired
    Cable typeFlat black cables
    Electrical FeaturesOperating Temperature40 °C
    MTBF @ 25 °C, excl. fan150,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, SCP
    Safety and EnvironmentalSafety and EMCcTUVus, TUV, Gost-R, UkrTEST, CB , BSMI, Semko, CCC, CE, FCC, C-tick
    Environmental ComplianceEnergy Star, RoHS, WEEE, REACH
    Warranty5 Years
    Packaging information
    Units per carton5
    Individual carton size310 (L) x 115 (W) x 180 (H) mm
    Shipping carton size596 (L) x 198 (W) x 335 (H) mm


    Specifications are subject to change without prior notice.
