SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)

SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)
  • SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)
  • SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)
  • SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)
$249.0
RRP:$256.0    Save $7.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)
  • Model Number:
    SS-660XP2
  • Brand:
  • Manufacturer Warranty:
    60 Months
  • Description

    SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)

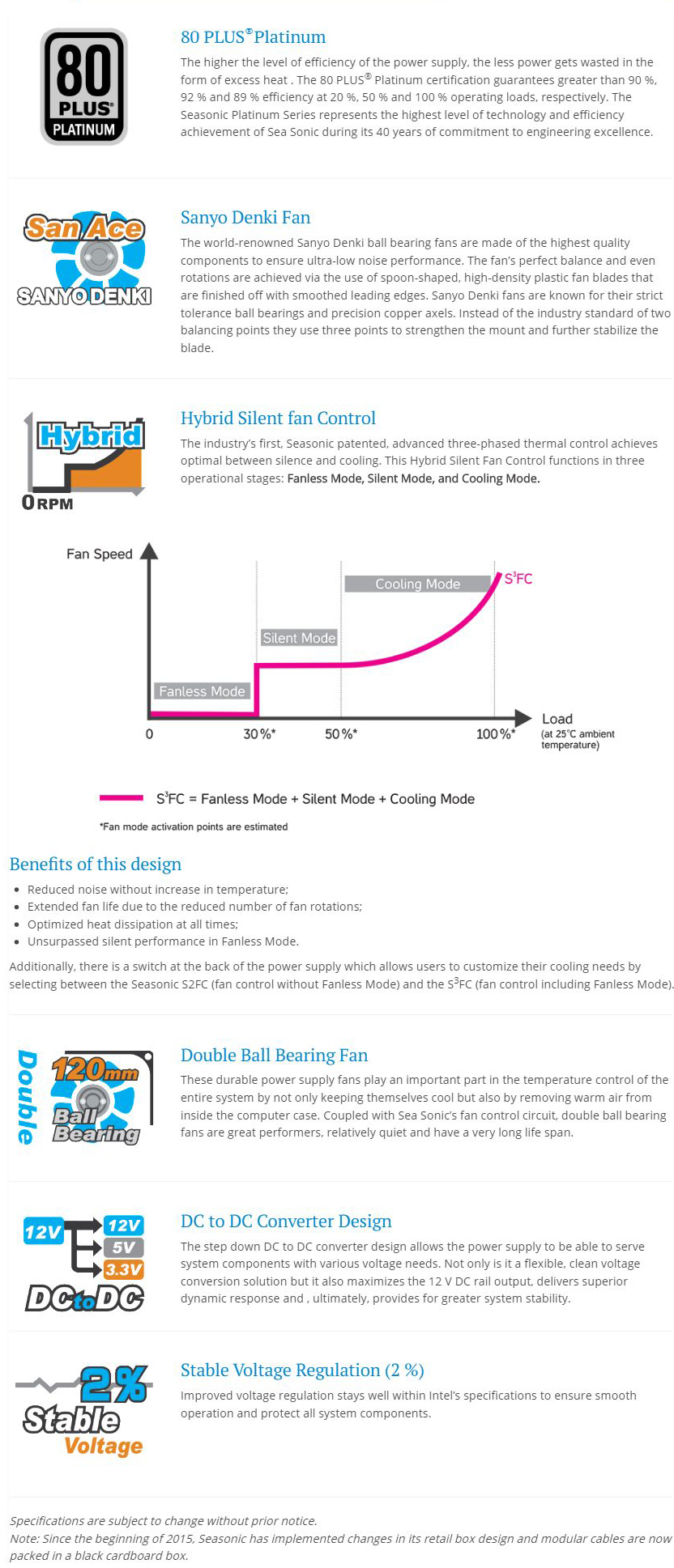

    The most popular member of the Seasonic Platinum product line is well known for its stability and reliable performance. This unit achieves extremely high power conversion efficiency with unbelievably tight (2%) voltage regulation. Like all Platinum series units, the Platinum 660 also comes outfitted with fully modular cables that offer flexibility during system build. The Seasonic patented Hybrid Silent Fan Control can be personalized with the help of a toggle switch, which allows users to select between the S2FC control (without Fanless Mode) and the S3FC fan control (including Fanless Mode). This power supply is a true definition of what genuine premium power supplies should be.


    SeaSonic 660W Platinum Series Modular Power Supply (SS-660XP2)

    Platinum 660
    AC InputVoltage: 100 V - 240 V
    Current: 8.5 - 4 A
    Frequency: 50 Hz - 60 Hz
    DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
    Maximum Power25 A25 A55 A0.5 A3 A
    125 W660 W6 W15 W
    Total continuous power660 W
    Platinum 660 Technical Specifications
    80PLUS®Platinum
    Form FactorIntel ATX 12 V
    Dimensions150 mm (W) x 160 mm (L) x 86 mm (H)
    Fan InformationFan Size120 mm
    Fan ControlSeasonic S3FC
    Fan BearingDouble Ball Bearing
    Life Expectancy70,000 at 40 °C, 15 % - 65 % R.H.
    Cable InformationModularityFully Modular
    Cable typeFlat black cables
    Electrical FeaturesOperating Temperature40 °C
    MTBF @ 25 °C, excl. fan150,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, OCP, OTP, SCP
    Safety and EnvironmentalSafety and EMCcTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
    Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty7 Years
    Packaging information
    Units per carton4
    Individual carton size330 (L) x 130 (W) x 195 (H) mm
    Shipping carton size545 (L) x 215 (W) x 360 (H) mm

    Specifications are subject to change without prior notice.
