SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)

SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)
  • SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)
  • SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)
  • SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)
$179.0
RRP:$192.0    Save $13.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)
  • Model Number:
    SSR-750RT
  • Brand:
  • Manufacturer Warranty:
    60 Months
  • Description

    SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)

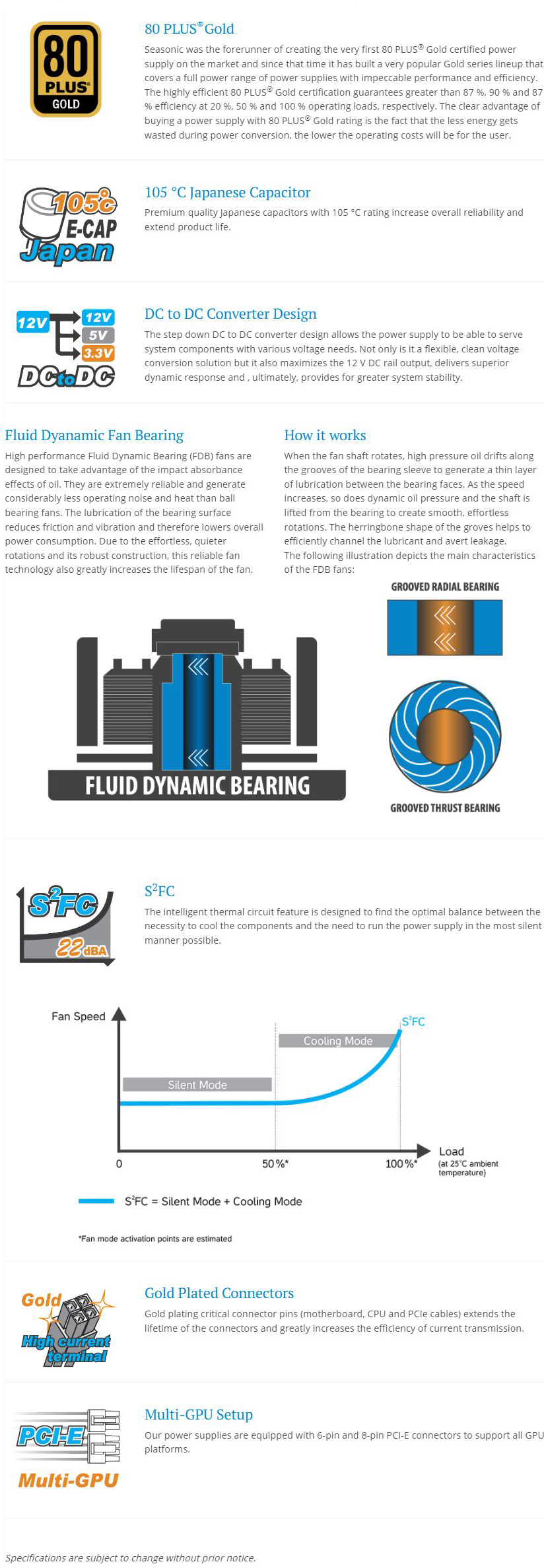

    S12G power supplies answer the demands of users who are looking for a reliable 80 PLUS® Gold performance unit with all the benefits of the renowned Sea Sonic craftsmanship for gaming and overall usage. Adapting highly dependable 105°C Aluminum Electrolytic Capacitors and Polymer Aluminum Solid Capacitors, the S12G Series is able to employ its features of low resistance and high level of heat-proofing under high operating temperatures, frequencies, and currents. The implementation of high-quality Japanese components coupled with the silent fan control design creates an optimal balance between noise and cooling in order to provide a quieter operating environment for computer users.


    SeaSonic 750W S12G Series Semi Modular Power Supply (SSR-750RT)


    S12G-750
    AC InputVoltage: 100 V - 240 V
    Current: 9 A
    Frequency: 50 Hz - 60 Hz
    DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
    Maximum Power20 A20 A62 A0.3 A2.5 A
    100 W744 W9.6 W12.5 W
    Total continuous power750 W
    S12G-750 Technical Specifications
    80PLUS®Gold
    Form FactorIntel ATX 12 V
    Dimensions150 mm (W) x 140 mm (L) x 86 mm (H)
    Fan InformationFan Size120 mm
    Fan ControlSeasonic S2FC
    Fan BearingFluid Dynamic Bearing
    Life Expectancy50,000 at 40 °C, 15 % - 65 % R.H.
    Cable InformationModularityFully Wired
    Cable typeFlat black cables
    Electrical FeaturesOperating Temperature40 °C
    MTBF @ 25 °C, excl. fan150,000 hours
    AC InputFull Range
    ProtectionOPP, OVP, UVP, OCP, OTP, SCP
    Safety and EnvironmentalSafety and EMCcTUVus, TUV, EAC, UkrTEST, Semko, CB , BSMI, CCC, CE, FCC, C-tick
    Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty5 Years
    Packaging information
    Units per carton5
    Individual carton size310 (L) x 115 (W) x 180 (H) mm
    Shipping carton size596 (L) x 198 (W) x 335 (H) mm

    Specifications are subject to change without prior notice.
