Silverstone EP11S USB3.1 Type C to MiniDP HDMI VGA Combo Display Adapter

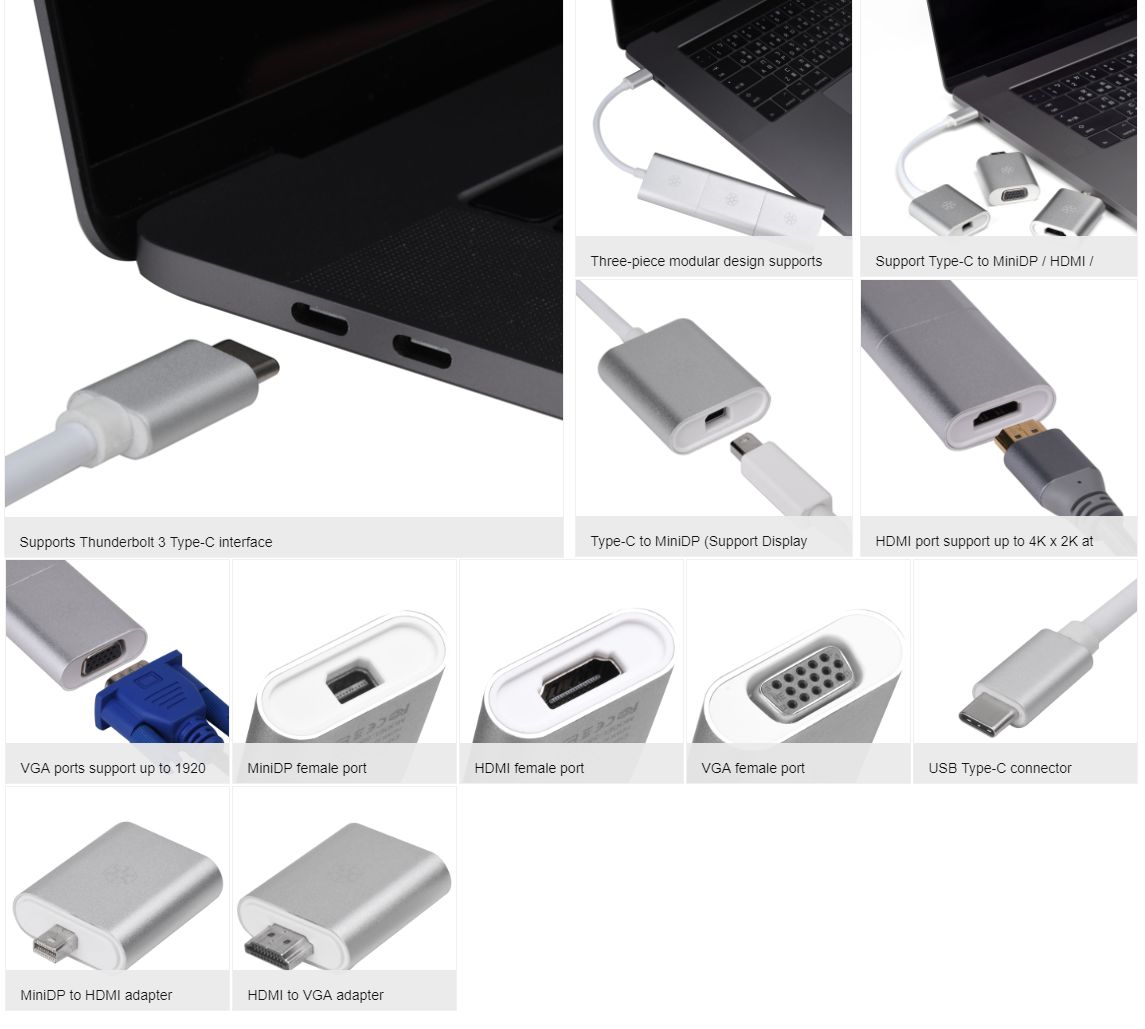

Supports Thunderbolt 3 Type-C interface 4K high-quality output for resolution of up to 4096 x 2160 (4K x 2K) Three-piece modular design supports six unique video transfer options Support Type-C to MiniDP / HDMI / VGA port Support MiniDP to HDMI / VGA port Support HDMI to VGA port Aluminum alloy shell for excellent feel and durability
To fulfill the need for high resolution output from PC, tablets or smartphones to larger display devices such as TVs, computer monitors, or projectors, SilverStone created EP11, a USB 3.1 Type-C to MiniDP, HDMI and VGA combination connector adapter. This adapter is compliant with DisplayPort Alt Mode specification that provides high throughput up to Ultra HD resolutions of 4096 x 2160 (4K x 2K). The EP11 can dismantle into three components that operate independently for plug and play with compatible devices. In total, this versatile adapter kit supports Type-C to MiniDP, Type-C to HDMI, Type-C to VGA, MiniDP to HDMI, MiniDP to VGA, and HDMI to VGA, making it a handy tool for near limitless video applications.
Specifications
| Model No. | SST-EP11S | | Color | Silver | | Material | Aluminum, plastic | | Operating temperature | 5°C ~ 35°C | | Operation Humidity | 20%RH ~ 80%RH | | Cable length | 100mm | | Operating system support | Microsoft Windows 10/8/8.1 (32-bit, 64-bit), or future release versions
Mac OS X EI Capitan 10.8 or above | | Net weight | 58g±5g | | Dimension | 35mm (W) x 12mm (H) x 123mm (D), (Total)
1.38" (W) x 0.47" (H) x 4.84" (D), (Total) | | Type-C to MiniDP Adapter | | Chipset | Cypress CYPD1120 | | Signal input | USB 3.1 Type-C male | | Signal output | Active MiniDP female | | Support DP version | V1.2 | | DP port resolution support | Up to 4096 x 2160 (4K x 2K) (DisplayPort Alt mode) | | Dimension | 35mm (W) x 12mm (H) x 41mm (D)
1.38" (W) x 0.47" (H) x 1.61" (D) | | MiniDP to HDMI Adapter | | Chipset | Chrontel CH7525 | | Signal input | MiniDP Male | | Signal output | HDMI female (HDMI V1.4) | | HDMI port Resolution support | Up to 4096 x 2160 (4K x 2K) at 30Hz | | Dimension | 35mm (W) x 12mm (H) x 51mm (D)
1.38" (W) x 0.47" (H) x 2.01" (D) | | HDMI to VGA Adapter | | Chipset | Chrontel CH7101B | | Signal input | HDMI male | | Signal output | VGA female | | VGA port Resolution support | Up to 1920 x 1200 at 60Hz | | Dimension | 35mm (W) x 12mm (H) x 52mm (D)
1.38" (W) x 0.47" (H) x 2.05" (D) |
| Remark : | | * Not all device’s Type-C port can output audio and video signals, please make sure that your Type-C equipment supports DisplayPort Alternate Mode |
|
