Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US

Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
  • Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
  • Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
  • Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
  • Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
$3,380.0
RRP:$3,390.0    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US
  • Model Number:
    VPLPHZ10
  • Brand:
  • Manufacturer Warranty:
    12 Months
  • Description

    Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US

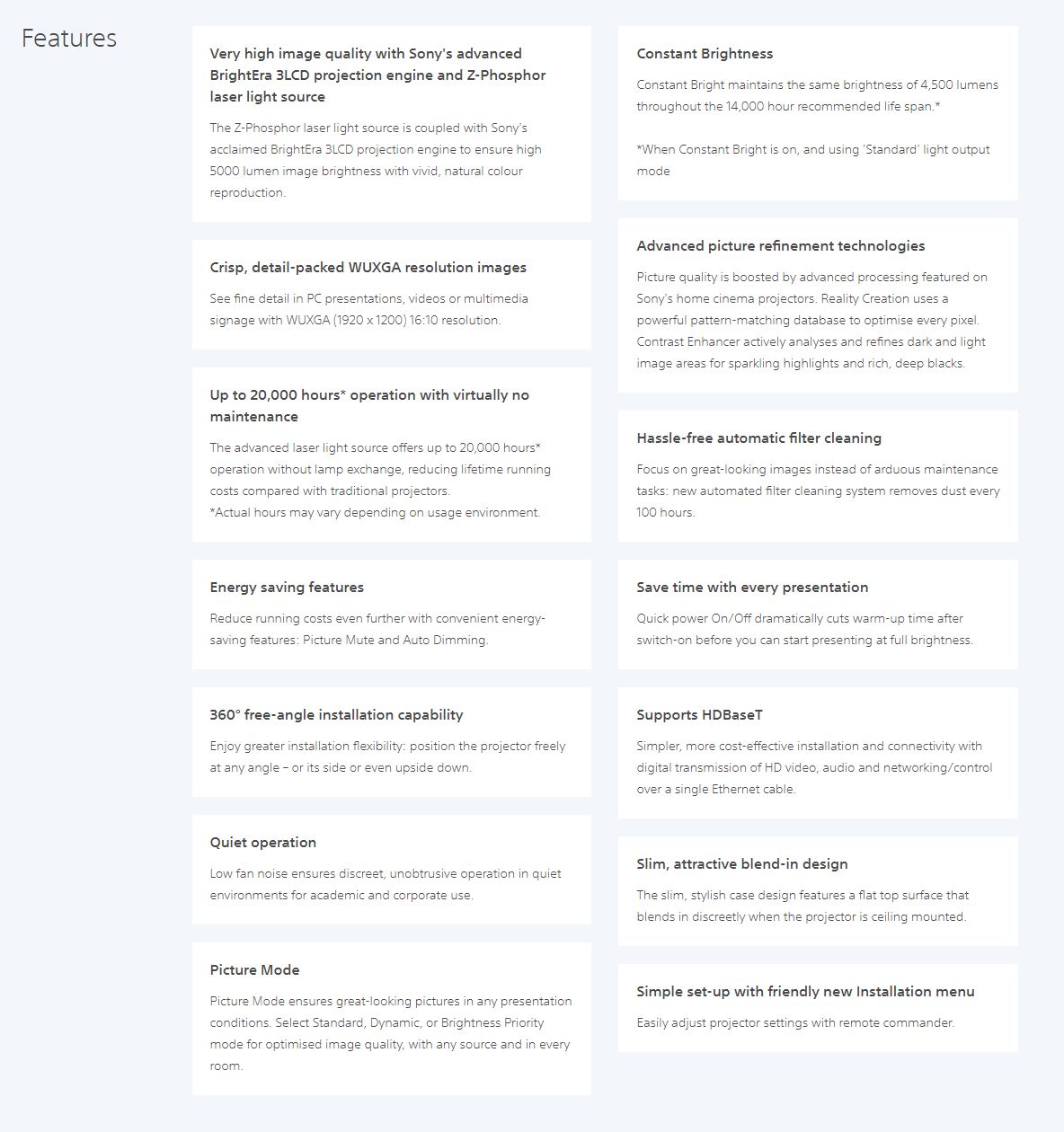

    Cost effective laser projection with excellent picture quality, easy installation and low running costs

    The VPL-PHZ10 laser projector is a versatile, affordable choice for installation in a wide range of education, business and entertainment environments.


    The powerful Z-Phosphor laser light source is teamed with Sony's advanced BrightEra 3LCD projection engine to deliver extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours. This laser light source allows up to 20,000 hours* of virtually zero maintenance operation without the worry of sudden lamp failures. An automated filter system cuts the hassle of regular dust cleaning. Near-zero maintenance needs are complemented by a range of energy-saving features, significantly driving down total lifetime ownership costs. Constant Bright maintains consistent light output levels throughout the laser's 20,000 hours (at light output mode "Middle") recommended lifespan.


    Offering a stylish blend-in design and low fan noise, the VPL-PHZ10 fits smoothly into almost any environment – from academic institutions to corporate environments. Mount the projector at any angle, even on its side or upside down. Set-up's easier than ever with a friendly new installation menu.


    *Actual hours may vary depending on usage environment.


    Sony PHZ10- Venue, Laser, 5000 Lumens/3LCD/ WUXGA, HDMI / VGA / 2 x US

    Specifications


    Display system
    Display system
    3 LCD system
    Display device
    Size of effective display area
    0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
    Number of pixels
    6,912,000 (1920 x 1200 x 3) pixels
    Projection lens
    Focus
    Manual
    Zoom - Powered/Manual
    Manual
    Zoom - Ratio
    Approx. x 1.45
    Throw ratio
    1.28:1 to 1.88:1
    Lens shift - Powered/Manual
    Manual
    Lens shift - Range Vertical
    +20% to +55%
    Lens shift - Range Horizontal
    +/- 10%
    Light source
    Type
    Laser diode
    Filter cleaning / replacement cycle (Max.)
    Filter cleaning / replacement cycle (Max.)
    20,000 H (service maintenance)
    Screen size
    Screen size
    40" to 300" (1.02 m to 7.62 m)
    Light output
    Mode: Standard
    5,000 lm
    Color light output
    Mode: Standard
    5,000 lm
    Contrast ratio (full white / full black) *1
    Contrast ratio (full white / full black)
    500,000:1
    Speaker
    Speaker
    16 W (monaural)
    Displayable scanning frequency
    Horizontal
    15 kHz to 92 kHz
    Vertical
    48 Hz to 92 Hz
    Display resolution
    Computer signal input
    Maximum display resolution: 1920 x 1200 dots *2
    Video signal input
    NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i
    The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p
    Color System
    Color System
    NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
    Keystone correction (Max.)
    Horizontal
    +/- 30 degrees
    Vertical
    +/- 20 degrees
    INPUT OUTPUT (Computer/Video/Control)
    INPUT A
    RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
    Audio input connector: Stereo mini jack
    INPUT B
    HDMI input connector: HDMI 19-pin, HDCP support
    Audio input connector: HDMI audio support
    INPUT C
    HDMI input connector: HDMI 19-pin, HDCP support
    Audio input connector: HDMI audio support
    INPUT D
    HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
    VIDEO IN
    Video input connector: BNC
    Audio input connector: Shared with INPUT A
    OUTPUT
    Audio output connector: Stereo mini jack
    REMOTE
    D-sub 9-pin (male) / RS232C
    LAN
    RJ45, 100BASE-TX (Shared with INPUT D)
    USB
    TYPE-A
    USB
    TYPE-B
    Acoustic Noise
    Lamp Mode: Standard / Middle / Low
    36 dB / 28 dB / 25 dB
    Operating temperature / Operating humidity
    Operating temperature / Operating humidity
    0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)
    Storage temperature / Storage humidity
    Storage temperature / Storage humidity
    -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)
    Power requirements
    Power requirements
    AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz
    Power Consumption
    AC 100 V to 120 V
    Mode: Standard: 424 W
    AC 220 V to 240 V
    Mode: Standard: 403 W
    Power Consumption (Standby Mode)
    AC 100 V to 120 V
    0.5 W (when "Standby mode" is set to "Low")
    AC 220 V to 240 V
    0.5 W (when "Standby mode" is set to "Low")
    Power Consumption (Networked Standby Mode)
    AC 100 V to 120 V
    12.5 W (LAN)
    13.2 W (optional WLAN module)
    16.8 W (HDBaseT)
    17.4 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
    AC 220 V to 240 V
    11.9W (LAN)
    12.6W (optional WLAN module)
    17.0W (HDBaseT)
    17.6W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")
    Standby Mode / Networked Standby Mode Activated
    Standby Mode / Networked Standby Mode Activated
    Approx. 2 Minutes
    Heat dissipation
    AC 100 V to 120 V
    1446 BTU/h
    AC 220 V to 240 V
    1374 BTU/h
    Dimensions (W x H x D)
    Dimensions (W x H x D) (without protrusions)
    510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches)
    Mass
    Mass
    Approx. 8.7kg (19 lb)
    Supplied accessories
    Remote commander
    RM-PJ8
    Notes
    *1
    The value is average
    *2
    Available for VESA Reduced Blanking signal.
    This projector has a total constant brightness of 4500 lumens for up to 14,000 hours depending on usage environment. This enables users to experience the projectors’ original level of image quality for years, while achieving a maximum 5,000 lumens brightness when the constant brightness mode is off.
