The majority of today´s motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5079AL Multi I/O board, users can expand two RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further.
SUNIX MIO5079AL is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in any slim size PC-based system with low profile bracket structure. Furthermore, SUNIX MIO5079AL Multi-IO card supports majority of the OS on the market.
We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.
|Features || Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system. Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key. High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board. Expands two RS-232 serial port with communication speed up to 115.2Kbps. On-chip hardware auto flow control to guarantee no data loss. Built-in ±2KV ESD protection for all serial signals. Support IEEE 1284-1994 parallel port standard ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port) SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port) Auto-switching between ECP/EPP/SPP/BPP modes without configuration. Plug-n-Play, I/O address and IRQ assigned by system. Low profile bracket design idea for slim or portable PC. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS. |
|General || Interface:RS-232 and IEEE1284 Controller:SUNIX SUN1989 (16C950 UART Compatible) Bus:Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 IRQ & IO:Assigned by System |
|Serial Communication || Interface:RS-232 No. of Port:2-port FIFO:128 byte (Hardware) Signal:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI Baud rate:50 bps to 115.2 Kbps Data bit:5,6,7,8 Stop bit:1,1.5,2 Parity:None, Even, Odd, Space, Mark Flow Control:None, Xon/Xoff, RTS/CTS Protection:±2KV ESD protection for each signal Human Body Model (HBM) PCB connector:DB44 Female Cable Connector:DB9 Male |
|PARALLEL COMMUNICATION || Interface:IEEE1284 No. of Port:1-port FIFO:16 byte (Hardware) Signal:SPP/ECP/EPP/BPP Speed:Maximum 1.8MBps PCB connector:DB44 Female Cable Connector:DB25 Female |
|DRIVER SUPPORT || Microsoft Client:Windows XP/Vista/7 (X86/X64) Microsoft Server:Windows 2000/2003/2008 (X86/X64) Microsoft Embedded:Windows XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 Linux:Linux 2.4.x / 2.6.x / 3.x DOS:DOS |
|REGULATORY APPROVALS || Hardware:EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS Software:Microsoft WHQL Windows Microsoft Client:XP/Vista/7 (X86/X64) Microsoft Server:2000/2003/2008 (X86/X64) |
|ENVIRONMENT || Operation Temperature:0 to 60°C (32 to 140°F) Operation Humidity:5 to 95% RH Storage Temperature:-20 to 85°C (-4 to 185°F) |
|DIMENSION || PCB Dimension:120 x 63 mm Bracket:Low Profile 80 mm Bracket Space:1 |
|Note: ||* Do not support LPT Key Locker Parallel device.|
* LPT port does not support legacy 278/378 ISA address under Windows nor Linux operation systems, but only DOS mode.
* Specifications are subject to change without notice.
* Specifications may vary.

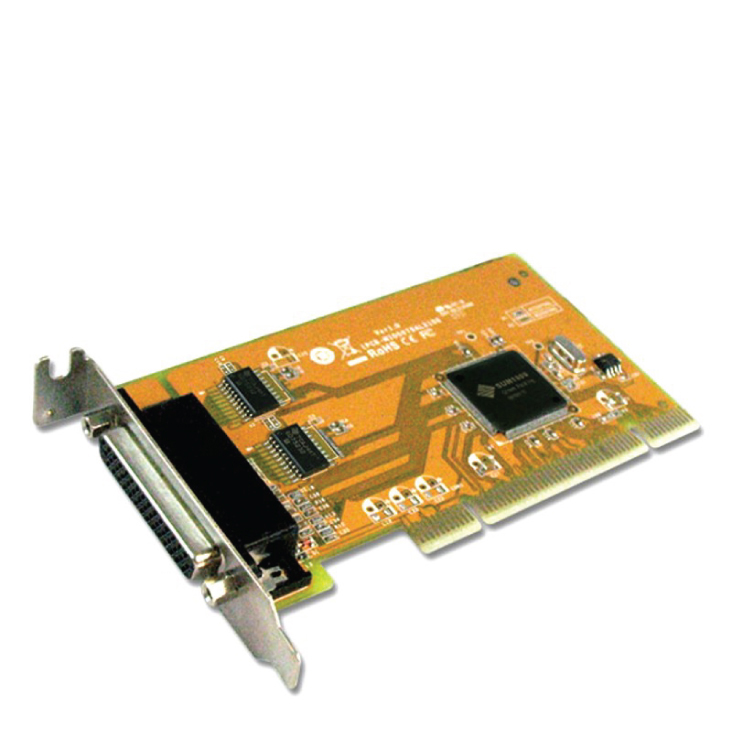

* The product picture(s) is only for your reference, it may differ from the actual product.
