TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch

TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch
  • TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch
  • TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch
  • TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch
$380.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched within 1-2 business days



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch
  • Model Number:
    TL-SL2428P
  • Brand:
  • Manufacturer Warranty:
    12 Months
  • Description

    TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch

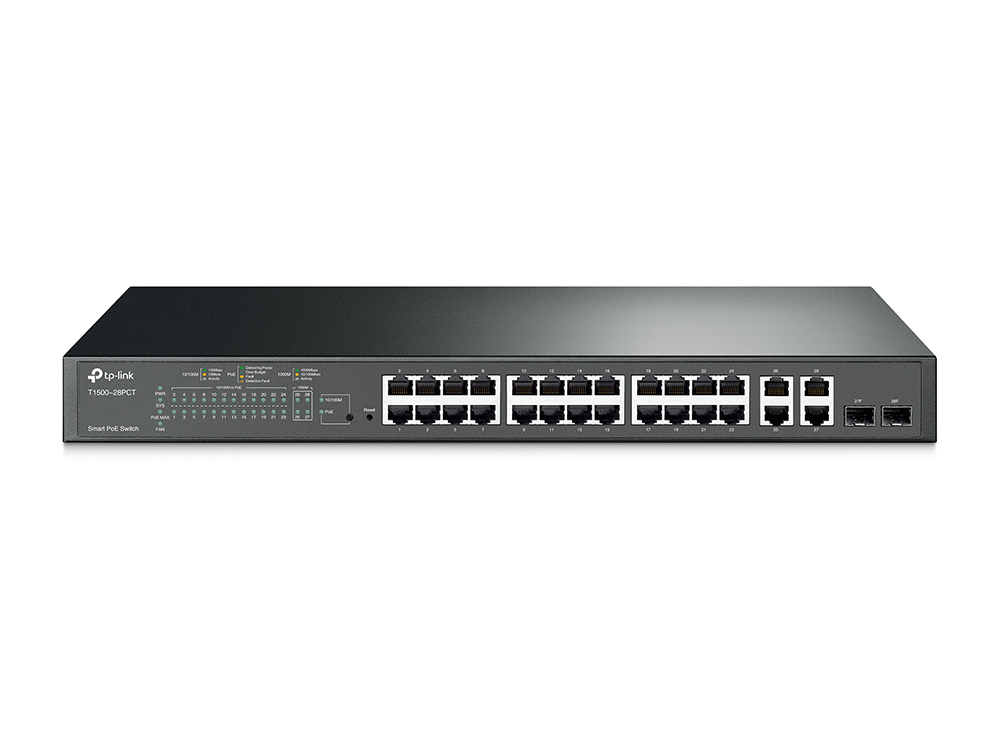

    TP-Link smart switch T1500-28PCT is equipped with 24 10/100Mbps RJ45 ports, 4 10/100/1000Mbps RJ45 ports and 2 combo Gigabit SFP slots. All of the 24 10/100Mbps RJ45 ports support the 802.3at/af (PoE+) standard with total PoE power budget of 192W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.



    TP-Link smart switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-Link smart switch T1500-28PCT provides you the ideal access-edge solution.


    • Features 24 PoE ports, with total PoE power budget of 192W and useful PoE power management features

    • Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment

    • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications

    • WEB/CLI managed modes, SNMP, RMON bring abundant management features

    • Dual Firmware Image improves reliability and uptime of your network

    TP-link T1500-28PCT 24-Port 10/100Mbps 4-Port Gigabit Smart PoE+ Switch

    Specifications


    HARDWARE FEATURES

    STANDARDS AND PROTOCOLS

    IEEE 802.3i
      IEEE 802.3u
      IEEE 802.3ab
      IEEE802.3z
      IEEE 802.3ad
      IEEE 802.3x
      IEEE 802.3az
      IEEE 802.1d
      IEEE 802.1s
      IEEE 802.1w
      IEEE 802.1q
      IEEE 802.1x
      IEEE 802.1p
      IEEE 802.3af
      IEEE 802.3at

    INTERFACE

    24 10/100Mbps RJ45 Ports
      (Auto Negotiation/Auto MDI/MDIX)
      4 10/100/1000Mbps RJ45 Ports
      (Auto Negotiation/Auto MDI/MDIX)
      2 Combo Gigabit SFP Slots

    NETWORK MEDIA

    10BASE-T: UTP category 3, 4, 5 cable (maximum   100m)
      100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
      (maximum 100m)
      1000BASE-X: MMF, SMF

    FAN QUANTITY

    2

    POE BUDGET

    192W

    DIMENSIONS ( W X D X H )

    17.3 x 7.1 x 1.7 in.
      (440 x 220 x 44 mm)

    MOUNTING

    19" 1U rack mountable

    MAX POWER CONSUMPTION

    21.7W (with no power device connected)
      229.7W (with 192W power device connected)

    MAX HEAT DISSIPATION

    74.0 BTU/h (with no power device connected)
      783.8 BTU/h (with 192W power device connected)

    PERFORMANCE

    BANDWIDTH/BACKPLANE

    12.8Gbps

    PACKET FORWARDING RATE

    9.5Mpps

    MAC ADDRESS TABLE

    8k

    JUMBO FRAME

    9216 Bytes

    SOFTWARE FEATURES

    QUALITY OF SERVICE

    • 802.1p CoS/ DSCP priority
      • 8 priority queues
      • Priority Schedule Mode
      - SP (Strict Priority)
      - WRR (Weighted Round Robin)
      • Queue Weight Config
      • Bandwidth Control
      - Port/Flow based Rating Limit
      • Smoother Performance
      • Actions for flows
      - Mirror(to supported interface)
      - Redirect(to supported interface)
      - Rate Limit
      - QoS Remark
      • Storm Control
      - Multiple Control Modes(kbps/ratio/pps)
      - Broadcast/Multicast/Unknown-Unicast Control

    L2 FEATURES

    • Link Aggregation
      - static link aggregation
      - Up to 8 aggregation groups and up to 8 ports per group
      - 802.3ad LACP
      • Spanning Tree Protocol
      - 802.1D STP
      - 802.1w RSTP
      - 802.1s MSTP
      - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root   Protect
      • Loopback Detection
      • Flow Control
      - 802.3x Flow Control
      • Mirroring
      - Port Mirroring
      - One-to-One
      - Many-to-One
      - Flow-Based
      - Ingress/Egress/Both
      - CPU Mirroring
      • Device Link Detect Protocol(DLDP)

    L2 MULTICAST

    • 512 IPv4 and IPv6 shared multicast groups
      • IGMP Snooping
      - IGMP v1/v2/v3 Snooping
      - Fast Leave
      - IGMP Snooping Querier
      - IGMP Authentication
      - Static Group Config
      • MLD Snooping
      - MLD v1/v2 Snooping
      - Fast Leave
      - MLD Snooping Querier
      - Static Group Config
      • Multicast VLAN Registration
      • Multicast Filtering

    IPV6 SUPPORT

    • IPv6 Dual IPv4/IPv6
      • Multicast Listener Discovery(MLD) Snooping
      • IPv6 neighbor discovery (ND)
      • Path maximum transmission unit (MTU) discovery
      • Internet Control Message Protocol (ICMP) version 6
      • TCPv6/UDPv6
      • IPv6 applications
      - DHCPv6 Client
      - Ping6
      - Tracert6
      - Telnet(v6)
      - IPv6 SNMP
      - IPv6 SSH
      - IPv6 SSL
      - Http/Https
      - IPv6 TFTP

    VLAN

    • VLAN Group
      - Max. 4K VLAN Groups
      • 802.1Q tag VLAN
      • MAC VLAN
      • Protocol VLAN
      • GVRP
      • Voice VLAN

    ACCESS CONTROL LIST

    • Support up to 230 entries
      • Time-Range
      - Time Slice
      - Week Time-Range
      - Absolute Time-Range
      - Holiday
      • Time-based ACL
      • MAC ACL
      - Source MAC
      - Destination MAC
      - VLAN ID
      - User Priority
      - Ether Type
      • IP ACL
      - Source IP
      - Destination IP
      - IP Protocol
      - TCP Flag
      - TCP/UDP Source Port
      - TCP/UDP Destination Port
      - DSCP/IP TOS
      • IPv6 ACL
      • Combined ACL
      • Rule Operation
      - Permit/Deny
      • Policy Action
      - Mirror
      - Rate Limit
      - Redirect
      - QoS Remark
      • ACL Rules Binding
      - Port Binding
      - VLAN Binding

    MANAGEMENT

    • Web-based GUI and CLI management
      • SNMPv1/v2c/v3
      • SNMP Trap/Inform
      • RMON (1,2,3,9 groups)
      • SDM Template
      • DHCP/BOOTP Client
      • Dual Image, Dual Configuration
      • CPU Monitoring
      • Cable Diagnostics
      • EEE
      • System Log
      • 802.1ab LLDP/ LLDP-MED

    MIBS

    • MIB II (RFC1213)
      • Interface MIB (RFC2233)
      • Ethernet Interface MIB (RFC1643)
      • Bridge MIB (RFC1493)
      • P/Q-Bridge MIB (RFC2674)
      • RMON MIB (RFC2819)
      • RMON2 MIB (RFC2021)
      • Radius Accounting Client MIB (RFC2620)
      • Radius Authentication Client MIB (RFC2618)
      • Remote Ping, Traceroute MIB (RFC2925)
      • Support TP-Link private MIBs

    OTHERS

    CERTIFICATION

    CE, FCC, RoHS

    PACKAGE CONTENTS

    T1500-28PCT
      Power Cord
      Installation Guide
      Resource CD
      Rackmount Kit
      Rubber Feet

    ENVIRONMENT

    Operating Temperature: 0~40   (32~104);
      Storage Temperature: -40
    ~70   (-40~158)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
