Teltonika RUTX11 Industrial 4G LTE AC Wifi and Bluetooh LE Router

Teltonika RUTX11 Industrial 4G LTE AC Wifi and Bluetooh LE Router
  • Teltonika RUTX11 Industrial 4G LTE AC Wifi and Bluetooh LE Router
$749.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:

Loading...

   Fast Delivery

Dispatched in 1-2 Days excluding Weekends



  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!

Specifications

  • Product Name:
    Teltonika RUTX11 Industrial 4G LTE AC Wifi and Bluetooh LE Router
  • Model Number:
    RUTX11
  • Brand:
  • Manufacturer Warranty:
    24 Months
  • Description

    Please Check Modem/Router Compatibility with your Service Providers Before Purchasing

    Teltonika RUTX11 Industrial 4G LTE AC Wifi and Bluetooh LE Router

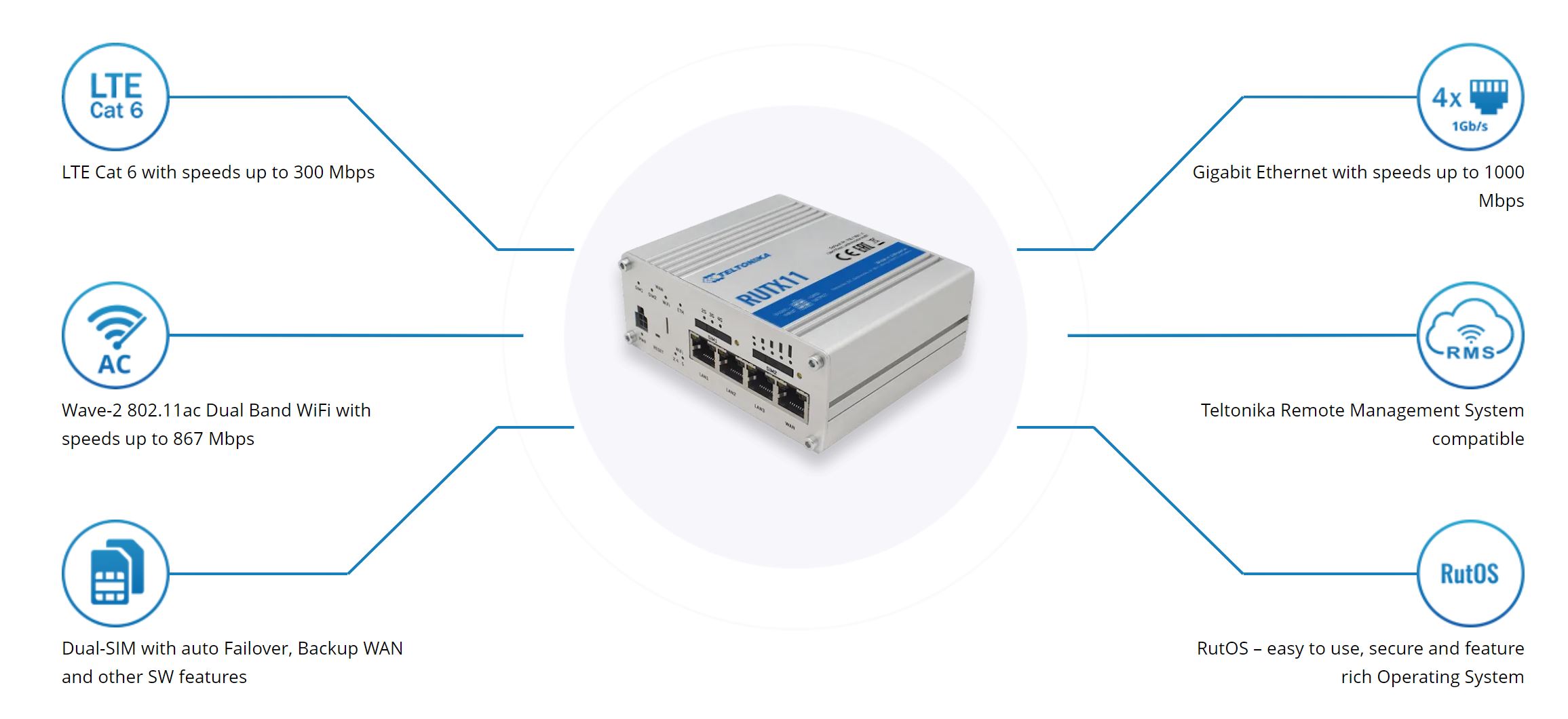

    Most powerful and feature rich device within Teltonika Networking products range. Equipped with Dual-SIM, 4 x Gigabit Ethernet ports, Dual-Band AC WiFi, Bluetooth LE and USB interfaces. RUTX11 comes with all RutOS software and security features. This device is perfect for advanced Industrial and Enterprise applications.


    RUTX11 is the most feature rich among all the RUTX series devices. Wide range of internal hardware interfaces allows this device to be used in power hungry Industrial applications where speed and robustness is at the heart of solution. 4G (LTE) – Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports allows seamless data transfer experience.


    Quad Core ARM Cortex A7 717 MHz CPU and 256 MBytes DDR3 RAM assures smooth VPN data acquisition. Would that be Enterprise office of power hungry Digital signage with 8k HDTV solution, RUTX11 can handle it all. In addition Bluetooth LE allows sensors to be connected directly to router, thus minimizing overall solution ecosystem.


    second one.JPG
    SPECIFICATIONS:

    MOBILE
    Mobile module4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
    SIM switch2 SIM cards, auto-switch cases: weak signal, data   limit, SMS limit, roaming, no network, network denied, data connection fail,   SIM idle protection (planned)
    StatusSignal strength, SINR, RSRP, RSRQ, Bytes   sent/received
    SMSSMS status, SMS configuration, send/read SMS via HTTP   POST/GET, EMAIL to SMS (planned), SMS to Email, SMS to HTTP, SMS to SMS,   scheduled SMS (planned), SMS autoreply, SMPP (planned)
    Black/White listOperator black/white list
    Multiple PDN (planed)Possibility to use different PDNs for multiple   network access and services
    Band managementBand lock, Used band status display
    APNAuto APN
    BridgeDirect connection (bridge) between mobile ISP and   device on LAN
    WIRELESS
    Wireless mode802.11ac (WiFi 5) with data transmission rates up to   867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP),   Station (STA)
    WiFi securityWPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP;   AES-CCMP, TKIP, Auto Cipher modes, client separation
    ESSIDESSID stealth mode
    Wireless HotspotCaptive portal (Hotspot), internal/external Radius   server, built in customizable landing page
    ETHERNET
    WAN1 x WAN port (can be configured to LAN) 10/100/1000   Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports   auto MDI/MDIX crossover
    LAN3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE   802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    BLUETOOTH
    Bluetooth LEBluetooth low energy (LE) for short range   communication
    USB
    ApplicationsSamba share, custom scripts
    Data rateUSB 2.0
    External devicesPossibility to connect external HDD, flash drive
    Storage formatsFAT, FAT32, NTFS
    NETWORK
    RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP   v1/v2, EIGRP, NHRP)
    NetSnapper (optional)Mobile connection management, data compression VPN   client (not available in standard FW)
    Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS,   FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMNP,   MQTT, Wake On Lan (WOL)
    VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing   proper routing of VoIP packets
    Connection monitoringPing Reboot, Wget reboot, Periodic Reboot, LCP and   ICMP for link inspection
    FirewallPort forwards, traffic rules, custom rules
    DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
    QoSTraffic priority queuing by source/destination   (planned), service (planned), protocol or port (planned), WMM, 802.11e
    DDNSSupported >25 service providers, others can be   configured manually
    Network backupVRRP, Mobile and Wired WAN options, each of which can   be used as backup, using automatic Failover
    Load balancingBalance your Internet traffic over multiple WAN   connections
    SSHFS (optional)Possibility to mount remote file system via SSH   protocol (not available in standard FW)
    SECURITY
    AutheticationPre-shared key, digital certificates, X.509   certificates
    FirewallPre-configured firewall rules can be enabled via   WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
    Attack preventionDDOS prevention (SYN flood protection, SSH attack   prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN,   SYN-RST, X-mas, NULL flags, FIN scan attacks)
    VLANPort based and tag based VLAN separation
    Mobile quota controlSet up custom data limits for both SIM cards
    WEB filterBlacklist for blocking out unwanted websites,   whitelist for specifying allowed sites only
    Access controlFlexible access control of TCP, UDP, ICMP packets,   MAC address filter
    VPN
    OpenVPNMultiple clients and a server can run simultaneously,   12 encryption methods
    OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC,   DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,   AES-192-CBC, AES-256-CBC
    IPsecIKEv1, IKEv2, with 5 encryption methods for IPsec   (DES, 3DES, AES128, AES192, AES256)
    GREGRE tunnel
    PPTP, L2TPClient/Server services can run simultaneously
    Stunnel (planed)Proxy designed to add TLS encryption functionality to   existing clients and servers without any changes in the program’s code
    DMVPNMethod of building scalable IPsec VPNs
    SSTPSSTP client instance support
    MODBUS
    Modbus TCP slaveID range 1-255
    Modbus TCP masterSupported functions 01, 02, 03, 04, 05, 06, 15, 16
    Supported data formats 8 bit: INT, UINT; 16   bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with   byte-swapped, Little endian, Little endian with byte-swapped)
    MONITORING & MANAGEMENT
    WEB UIHTTP, status, configuration, FW update, CLI,   troubleshoot, event log, system log, kernel log
    FOTAFirmware update from server, automatic notification
    SSHSSH (v1, v2)
    SMSSMS status, SMS configuration, send/read SMS via HTTP   POST/GET
    TR-069 (planed)OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS,   FreeACS, LibCWMP, Friendly tech, AVSystem
    SNMPSNMP (v1, v2, v3), SNMP trap
    JSON-RPCManagement API over HTTP/HTTPS
    MQTTMQTT Broker, MQTT publisher
    RMSTeltonika Remote Management System (RMS)
    SYSTEM CHARACTERISTICS
    CPUQuad-core ARM Cortex A7, 717 MHz
    RAM256 MB, DDR3
    FLASH memory256 MB SPI Flash
    FIRMWARE / CONFIGURATION
    WEB UIUpdate FW from file, check FW on server,   configuration profiles, configuration backup
    FOTAUpdate FW/configuration from server
    RMSUpdate FW/configuration for multiple devices
    Keep settingsUpdate FW without losing current configuration
    FIRMWARE CUSTOMIZATION
    Operating systemRutOS (OpenWrt based Linux OS)
    Supported languagesBusybox shell, Lua, C, C++
    Development toolsSDK package with build environment provided (planed)
    LOCATION TRACKING
    GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
    CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
    NMEANMEA 0183
    Server softwareSupported server software: TAVL, RMS
    Mobile Network GeolocationGet approximate device location on RMS based on   mobile cell tower position (without using GPS)
    GeofencingConfigurable multiple geofence zones
    USB
    Data rateUSB 2.0
    ApplicationsSamba share (planed), custom scripts (planed)
    External devicesPossibility to connect external HDD, flash drive,   additional modem, printer
    Storage formatsFAT, FAT32, NTFS
    INPUT/OUTPUT
    Input1 x Digital Input
    Output1 x Digital Output
    EventsSMS, Email, RMS
    POWER
    Connector4 pin industrial DC power socket
    Input voltage range9 – 50 VDC, reverse polarity protection, voltage   surge/transient protection
    PoE (passive)Passive PoE. Possibility to power up through LAN   port, not compatible with IEEE802.3af and 802.3at standards
    Power consumption11 W Max
    PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS,   SIM)
    Ethernet4 x RJ45 ports, 10/100/1000 Mbps
    I/Os1 Digital Input, 1 Digital Output on 4 pin power   connector
    Status LEDs3 x connection status LEDs, 5 x connection strength   LEDs, 8 x LAN status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2.4G and 5G   WiFi LEDs
    SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external   SIM holders
    Power4 pin DC connector
    Antennas2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for   Bluetooth, 1 x SMA for GNNS
    USBUSB A port for external devices
    ResetFactory reset button
    PHYSICAL SPECIFICATION
    Casing materialFull aluminium housing
    Dimensions115 mm x 95 mm x 44 mm (H x W x D)
    Weight456 g
    Mounting optionsDIN rail (can be mounted on two sides), flat surface   placement
    OPERATING ENVIRONMENT
    Operating temperature-40 C to 75 C
    Operating humidity10 % to 90 % non-condensing
    Ingress Protection RatingIP30
    REGULATORY & TYPE APPROVALS
    Regulatory & Type ApprovalsCE/RED, RoHS, REACH
    VehicleECE R10 (E-mark)
    EMI IMMUNITY
    StandardsEN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1   V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0
    ESDEN 61000-4-2:2009
    RSEN 61000-4-3:2006+A1:2008+A2:2010
    EFTEN 61000-4-4:2012
    Surge protectionEN 61000-4-5:2014
    CSEN 61000-4-6:2014
    DIPEN 61000-4-11:2004
    RF
    StandardsETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI   EN 300 440 V2.1.1
    SAFETY
    StandardsIEC 62368-1:2014 (Second Edition) EN   62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017
