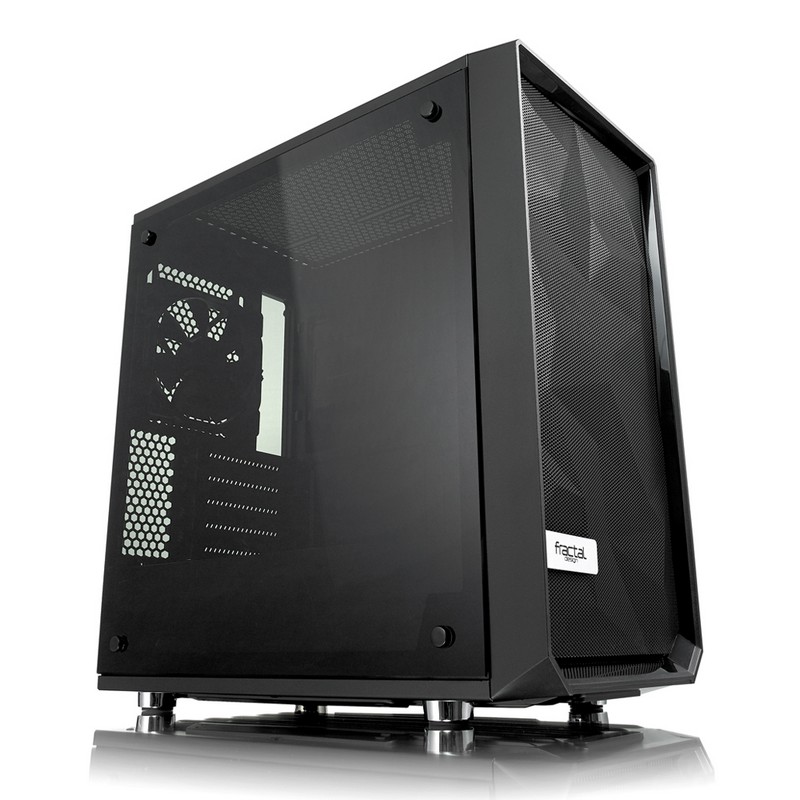

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C Mini Dark TG carves a space uniquely its own as a new force in high-airflow design. Tempered glass with a distinctive tint completes the stealth-inspired black-on-black aesthetic with exceptional style.
A compact yet spacious open Micro ATX layout creates an unrestricted airflow path from front intakes directly through key components to exhaust, ensuring heat is never an issue.
The Meshify C Mini Dark TG has a remarkably compact footprint with the high-end component support of a larger tower, and with six fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
Key features
Streamlined high-airflow design
The performance and capacity of a larger tower in a remarkably compact mATX designed tower
Angular mesh front panel maximizes air intake
Tinted tempered glass side panel for a clean looking exterior with full interior visibility
Distinctive styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
Specification
3.5" or 2.5" Drive capacity2Dedicated 2.5" drive capacity3Expansion slots5Motherboard compatibilitymATX, ITXPower supply typeATXTotal fan mounts7Front fan3x 120 or 2x 1401x Dynamic X2 GP-12 includedTop fan2x 120/140Rear fan1x 1201x Dynamic X2 GP-12 includedBottom fan1x 120Side fanNoDust filtersBottom fan + PSUFront fansTop panelFront radiator120/240mm140/280mm (max width 144mm)Top radiator120/240mm (max component height on motherboard 40 mm)Rear radiator120mm (max width 125mm)Power supply depth limitMaximum 175mm recommendedGraphics card length limitMax 315mm with front fan mountedCPU cooler height limit172mmCable routing15-35mm spaceCable routing grommetsYesFixed Velcro strapsYesCaptive thumbscrewsBoth side panels SSD bracketsLeft side panelTempered glass panelCase dimensions (LxWxH)395 x 212 x 399 mmCase dimensions w feet/protrusions/screws409 x 217 x 412 mmNet weight 6.28 kgPackage dimensions (LxWxH)502 x 295 x 484mmPackage weight 7.41 kg
