| Hardware Specs | |

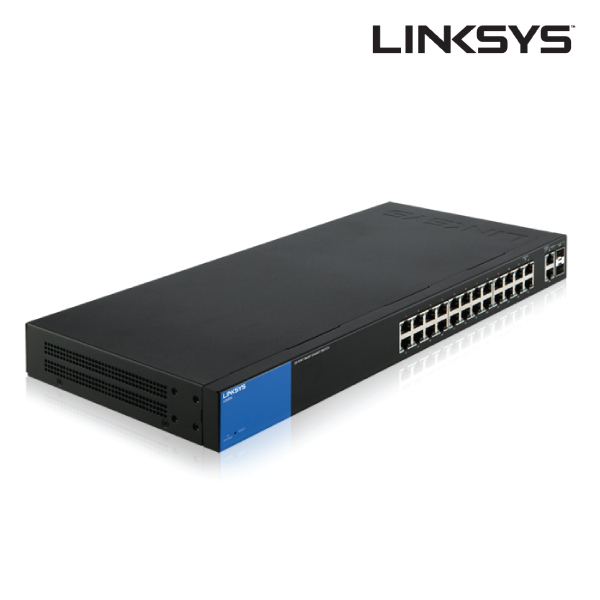

| Model: | LGS326 |
| Total System Ports: | 26GE |
| Copper FE/GE Ports (RJ45): | g01g12, g13g24 |
| Combo Ports (RJ45 + SFP): | 2 combo on ports g25, g26 |
| Status LEDs: | System (blue/yellow), Link/Act(green) |
| CPU Memory DRAM: | 128 MB |
| Power Input: | 100240V
50-60 Hz
(0.7A max) |
| Green Power Mode: | EEE+, Short Reach + Energy Detect |
| System Power Consumption: | 110V:7.94W, 220V:7.93W |
| Forwarding Rate: | 38.69 Mpps |
| Switching Capacity: | 52 Gbps |
| MAC Address: | 8K |
| Jumbo Frame (FE, GE): | 9K |
Enclosure Dimension
(L x H x W): | 440 x 44 x 200 mm
(17.3 x 1.7 x 7.9 in.) |
| Device Weight: | 2.424 kg (5.33 Ibs.) |
| Operating Temperature: | 0 to 50°C (32 to 122°F) |
| Operating Humidity: | 10 to 90% RH |
| Storage Temperature: | -40 to 70°C (-40 to 158°F) |
| Storage Humidity: | 10 to 90% RH (non-condensing) |
| Software Specs | |
| Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1d, IEEE802.1q, IEEE802.1X |
| Spanning Tree: | IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree |
| Link Aggregation: | IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group |
| VLAN: | Port-based and 802.1q tag-based VLANs |
| Number of VLANs: | 128 active VLANs (4,096 range) |
| Auto Voice VLAN: | VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels |
| IGMP Snooping | IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups |
| Head-of-Line (HOL) Blocking: | Head-of-line (HOL) blocking prevention |
| Security: | 802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and locked MAC address, management access control |
| Storm Control: | Broadcast, flooding, and multicast |
| QoS Priority Levels: | 4 hardware queues |
| QoS Class of Service: | Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based |
| QoS Scheduling: | Priority queuing and weighted round robin (WRR) |
| RMON: | Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis |
| Port Mirroring: | Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer |
| Management Interface: | Built-in Web UI for easy browser-based configuration (HTTP/HTTPS) |
| Other Management: | Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP |
| SNMP: | Version 1 and 2c |
