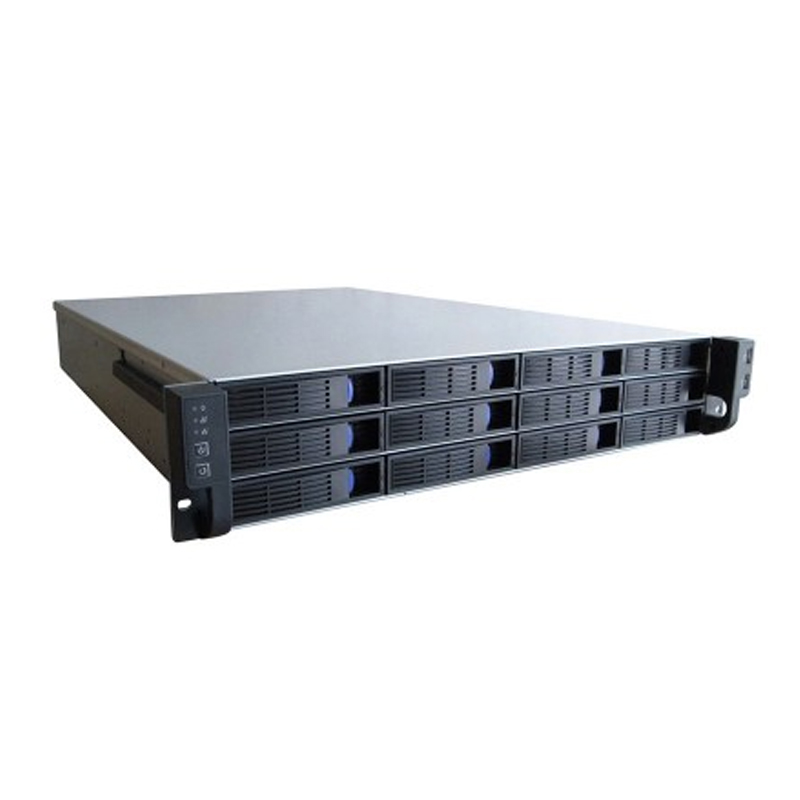

TGC Rackmount 2U 12-Bay Hotswap Server Chassis - 650MM Deep
The TGC 2112-6ST is an industrial-quality 2U-high server chassis suitable for racks 650mm deep or greater.
12 hot-swappable drive bays ready to be loaded with SATA II, III / SAS drives.
It supports full sized ATX motherboards and is equipped with four mid-mounted 80mm cooling fans for ventilation.
Drive Bays: 12 x hot-swappable SATA II, III /SAS 6G drive bays
Cooling Fans: 4 x 80mm middle fans wall
Switches: Power ON/OFF x 1, System reset x 1
Indicator Lights: Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connectors: 12 x SATA connectors, 3 x 4-pin molex redundant power connectors.
Motherboard Compatibility: EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")
Power Supply Options: Standard 2U power supply, 2U redundant power supply (W x H=3.98inch x 3.31inch)
Dimensions ( W x D x H ): 483mm x 650mm x 88mm
Packing: Single box
Weight: 13.5 kg(NET) 14.5 kg (GROSS)
Temperature 0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ) 1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
