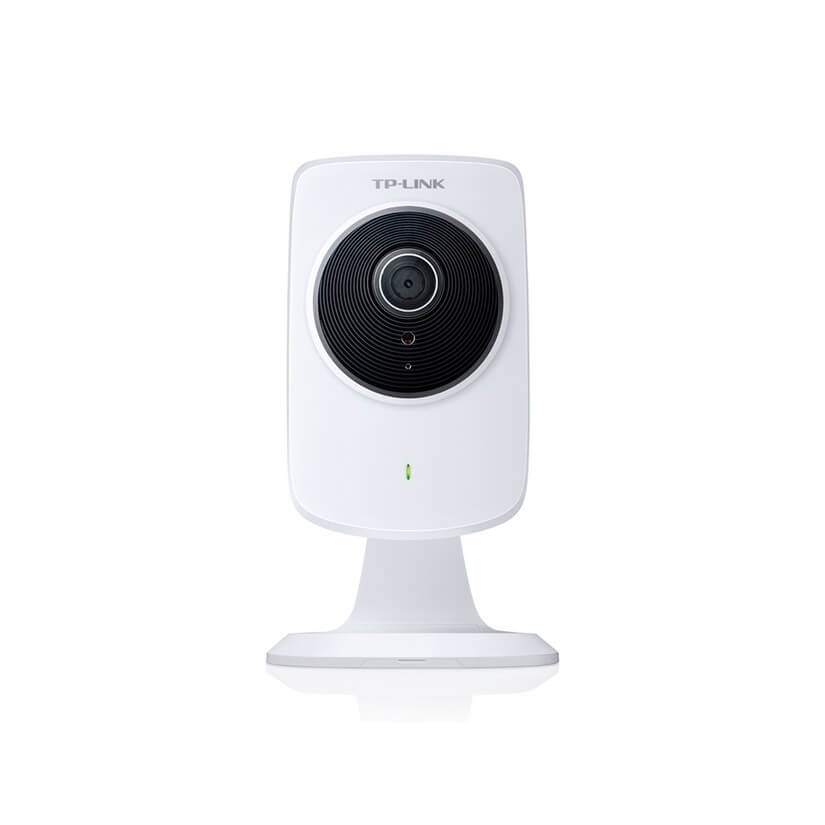

Day/Night Cloud Camera, 300Mbps Wi-FiNC220 Night Vision - Automatic night vision functionality supports 24-hour surveillance Advanced H.264 Video - For amazingly smooth HD video streaming tpCamera App - Use the tpCamera app to access feeds from anywhere, at any time Motion & Sound Detection - Immediate notification by email or FTP whenever motion or sound is detected Easy Setup - Follow the 3-Step Setup to install and operate the camera within minutes 300Mbps Wireless - 300Mbps wireless for fluid video and Wi-Fi extension
CAMERA Image Sensor 1/4" Progressive scan CMOS sensor Resolution 0.3 Megapixel (640 x 480) Lens F: 2.8, f: 3.85 mm Viewing Angle FOV = 64° Digital Zoom 4x Digital VIDEO/IMAGE Video Compression H.264 Frame Rate & Resolutions Max. 30 fps at 640x480 (VGA) Max. 30 fps at 320x240 (QVGA) Video Streaming Controllable Frame rate Image Settings Rotation: Mirror, Flip Configurable brightness, contrast, saturation Overlay capabilities: time, date, text AUDIO Audio Communication 1-Way Audio Input Built-in microphone Audio Compression AAC ALARM AND EVENT MANAGEMENT Input Trigger Motion/Sound detection Notification Method E-mail, FTP NETWORK Standards and Protocols Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,DNS, NTP, UPnP, HTTP, HTTPS, TCP, UDP Security Multiple password-protected user levels WIRELESS Wireless Data Rates IEEE 802.11 b/g/n, Up to 300Mbps Frequency 2.4-2.4835GHz Wireless Transmit Power <20dBm (EIRP) Wireless Encryption WEP, WPA/WPA2, WPA-PSK/WPA2-PSK INTERFACES Network Interface RJ-45 for Ethernet 10/100 Base-T Power Connector DC power jack Button Reset/WPS push button SURVEILLANCE MANAGEMENT Users 13 simultaneous unicast users Bundled Management Software Viewing and recording up to 36 cameras MINIMUM SYSTEM REQUIREMENTS Supported OS Windows 8/7/Vista/XP Mac OS 10.7 or higher Supported Browser Chrome 5.0, Mozilla Firefox 4.0, Opera 12, Safari 4.0, IE 7.0 or higher GENERAL External Power Supply 9V DC, Max 5.4W Certification RoHS, FCC, CE Package Contents NC220 Power Adapter Extension Cable RJ-45 Ethernet Cable Quick Installation Guide Environment Operating Temperature: 0°C~40°C (32°F ~104°F) Storage Temperature: -40°C ~70°C (-40°F ~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Dimensions( H X W X D ) 5.4 x 3.0 x 2.7 in. ( 137 x 76 x 69 mm )
* Specifications are subject to change without notice. * Specifications may vary. * The product picture(s) is only for your reference, it may differ from the actual product.
