CPU

- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

- Supports ASRock Hyper BCLK Engine

Chipset

AMD X670

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)*

1DPC 1R Up to 6600+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4800 MHz Natively.

2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.

- Max. capacity of system memory: 128GB

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCST Voltage Multi-adjustment

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60Hz*

*Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics.

USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.

Audio

- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

- WIMA Audio Capacitors (For Front Outputs)

- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)

- Individual PCB Layers for R/L Audio Channel

- Impedance Sensing on Rear Out port

- Nahimic Audio

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Killer E3100G

- Supports Killer LAN Software

- Supports Killer DoubleShot™ Pro

Wireless LAN

- 802.11ax Wi-Fi 6E Module

- Supports IEEE 802.11a/b/g/n/ac/ax

- Supports Dual-Band 2x2 160MHz with extended 6GHz band support*

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth + High speed class II

- Supports MU-MIMO

- Supports Killer LAN Software

- Supports Killer DoubleShot™ Pro

*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.

Slots

CPU:

- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*

Chipset:

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

ASMedia ASM1061:

- 4 x SATA3 6.0 Gb/s Connectors**

*Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

** If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled.

USB

- 2 x USB4 Type-C (Rear)

- 1 x USB 3.2 Gen2x2 Type-C (Front)

- 5 x USB 3.2 Gen2 Type-A (Rear)

- 7 x USB 3.2 Gen1 (3 Rear, 4 Front)

- 4 x USB 2.0 (Front)

*All USB ports support ESD Protection

Connector

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

- 1 x Dr. Debug with LED

- 1 x Power Button with LED

- 1 x Reset Button with LED

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

*****CHA_FAN1~6/WP support the fan power up to 2A (24W).

CPU_FAN2/WP_3A and CHA_FAN1~6/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 2 x Antenna Ports

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x USB4 Type-C Ports (40 Gb/s)*

- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.)

- 3 x USB 3.2 Gen1 Ports

- 1 x RJ-45 LAN Port

- 1 x Clear CMOS Button

- 1 x BIOS Flashback Button

- 1 x Line Out Jack (Gold Audio Jack)

- 1 x Microphone Input Jack (Gold Audio Jack)

*Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- Killer Control Centre

- ASRock Polychrome SYNC

UEFI

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

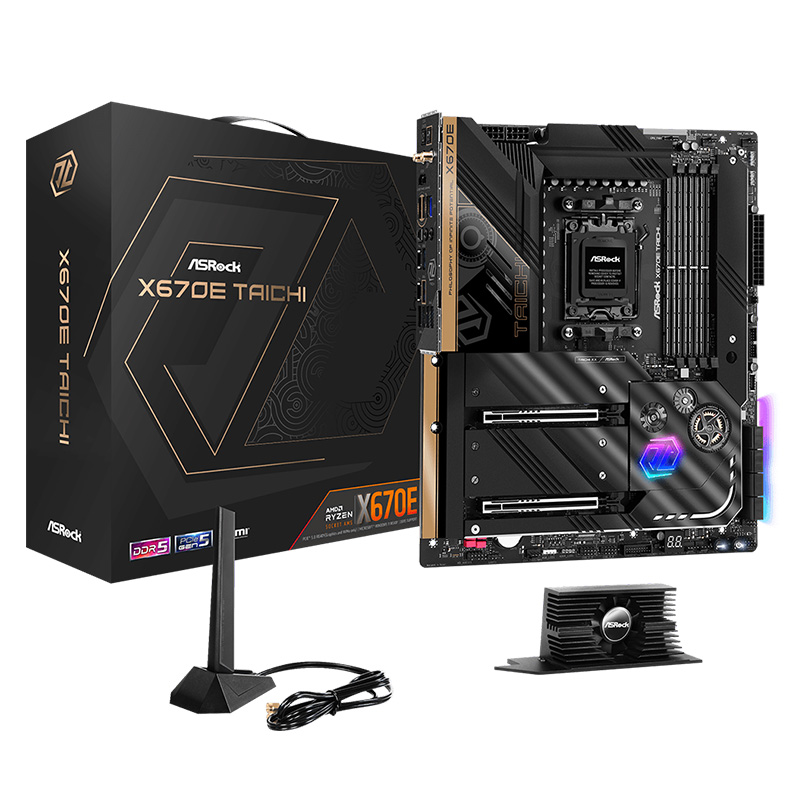

Accessories

- 1 x User Manual

- 4 x SATA Data Cables

- 1 x Wireless Dongle USB Bracket

- 1 x Blazing M.2 Gen5 Fan Heatsink

- 1 x ASRock WiFi 2.4/5/6 GHz Antenna

- 4 x Screws for M.2 Sockets

- 1 x Standoff for M.2 Socket

Form Factor

- EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm

- 8 Layer PCB

OS

Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
