Specifications

Product Name:

Corsair Carbide 270R Mid-Tower ATX Case Windowed (CC-9011105-WW)
Model Number:

CC-9011105-WW
Brand:

Corsair
Warranty Period:

1 Year

Description

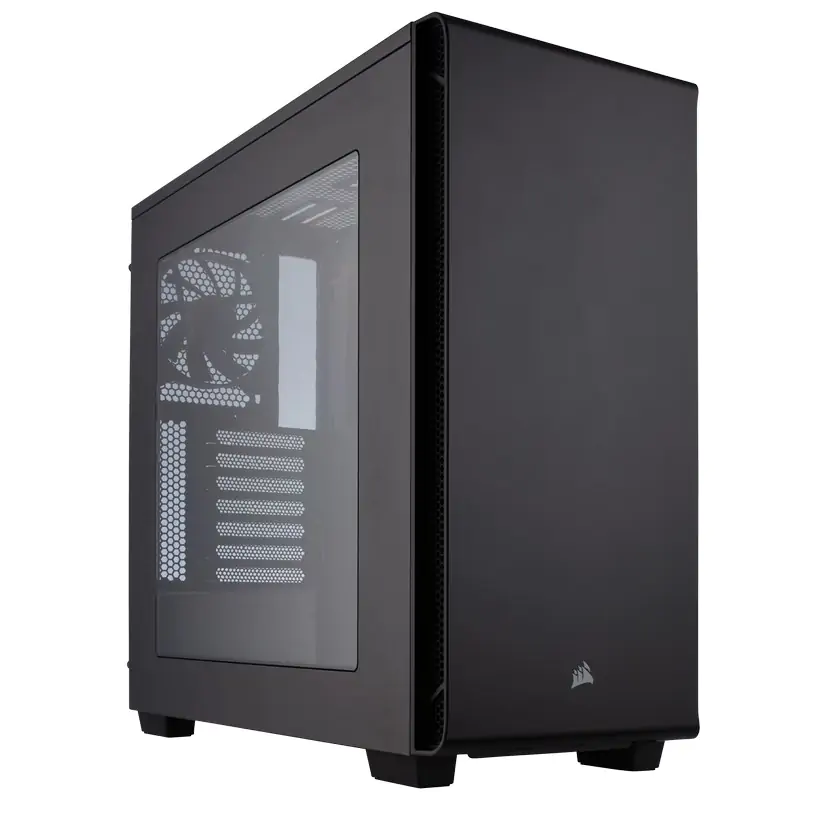

Corsair Carbide 270R Mid-Tower ATX Case Windowed

Carbide Series™ 270R is compact and engineered for building high-performance systems with a simplified internal layout, versatile cooling options, expansive storage capacity, and a clean, minimalist design.

Specifications

MAXIMUM GPU LENGTH	370mm
MAXIMUM PSU LENGTH	225mm
MAXIMUM CPU COOLER HEIGHT	170mm
CASE EXPANSION SLOTS	7
CASE DRIVE BAYS	(x2) 3.5in (x2) 2.5in
CASE FORM FACTOR	Mid-Tower
CASE WINDOWED	Acrylic
CASE WARRANTY	Two years
ICUE ENABLED	No
CASE MATERIAL	Steel
RADIATOR COMPATIBILITY	120mm; 240mm; 360mm
COMPATIBLE CORSAIR LIQUID COOLERS	H55, H60, H75, H80i, H90, H100i, H105, H110
CASE POWER SUPPLY	ATX (not included)
WEIGHT	7.28
LIGHTING	RGB
CASE DRIVE BAYS 3.5"	2
CASE DRIVE BAYS 2.5"	2

slide {0} of {1}, zoom in, Product image

Rugged, Sleek and Simple

Carbide Series 270R is compact and engineered for building high-performance yet minimalist systems.

Builder-friendly internal layout

Simple and intuitive internal layout enables easy and quick building

Versatile cooling options

Room for up to a 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear

Expansive storage space

Rugged construction steel drive trays provide ample of room for additional drives

Clean and minimalist exterior design

Unobstructive panels deliver an understated look

Built-in cable routing

Cable routing compartment enables effortlessly clean builds

Direct Airflow Path

Provides airflow to the hottest components without any interference from drive cages

Look Hot. Run Cold.

Take advantage of Direct Airflow Cooling as well as ample room for radiators in the front, top and rear. Keep your rig running cool and quiet with 270R’s enormous cooling potential.

Keep it Clean

Unobstructive exterior panels provide an understated look for an overall clean and minimalist design. The subtle cable routing compartment makes it even easier to achieve an effortlessly clean build.

Contents and Specifications

Package contents

Carbide Series 270R Windowed ATX Mid-Tower Case
Accessory kit
Warranty and Support Information

Compatibility

Motherboard: ATX (Up to 272mm), MicroATX, Mini ITX

Technical specifications

Dimensions (L x W x H): 509 x 210 x 460mm
Maximum GPU Length: 370mm
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 225mm
Expansion Slots: 7
3.5" Hard Drive Bays: 2
2.5" Drive Bays: 2
Cooling Layout:
- Front: (x3) 120mm or (x2) 140mm
  - (x1) 120mm red LED included
- Top: (x2) 120/140mm
- Rear: (x1) 120mm (included)
- Radiator Compatibility:
  - 360mm: Front only
  - 280mm: Front only
  - 240mm: Front or Top
  - 120mm: Front, Top, or Rear
- Dust filters for front and PSU intakes
- Windowed Side Panel
- Front I/O Panel includes: (x2) USB 3.0 port, Headphone and Microphone jacks, Power on and Reset buttons
