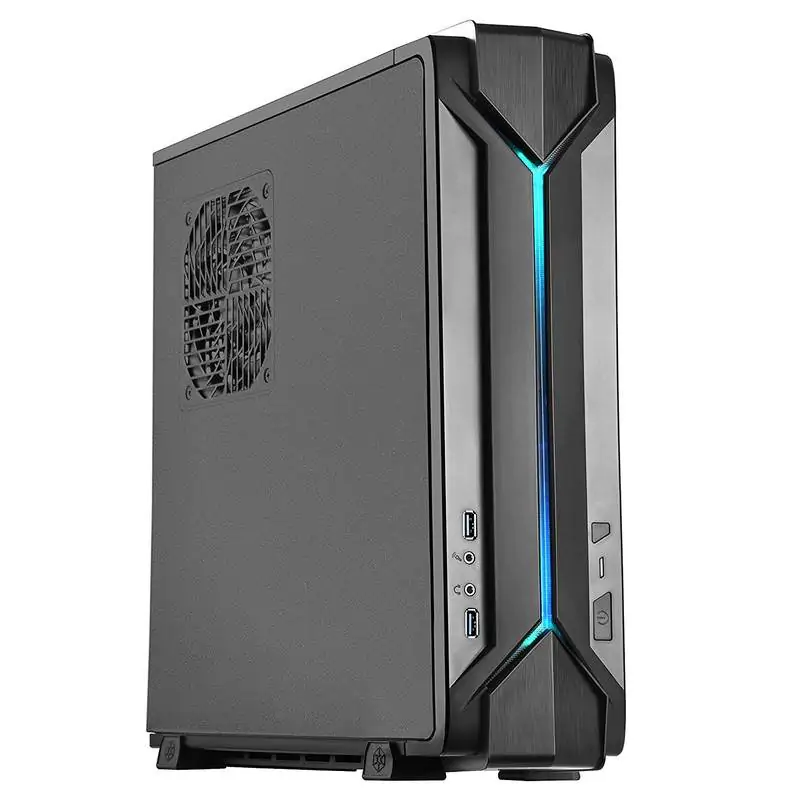

SilverStone Raven RVZ03B Black Mini ITX Case (SST-RVZ03B)

SilverStone Raven RVZ03B Black Mini ITX Case (SST-RVZ03B)
  • 39685_thumb_P_1572322104031
  • 39685_thumb_P_1572322328786
  • 39685_thumb_P_1572322328825
  • 39685_thumb_P_1572322445167
  • 39685_thumb_P_1572322468571
  • 39685_thumb_P_1572322468785
$128.50
4.0
or 4x fortnightly payments of $330 with ZipPay
Learn more

Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

OutOut Of Stock - for Pickup Question Mark

   Next Day Dispatch   Question Mark

OutOut Of Stock - for Delivery Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    SilverStone Raven RVZ03B Black Mini ITX Case (SST-RVZ03B)
  • Model Number:
    SST-RVZ03B
  • Brand:
  • Warranty Period:
    1 Year

Description



  • SilverStone RVZ03 is a further evolution of the highly rated RAVEN Z RVZ01-E, a slim form factor case with tremendous capability. It has the same optimized interior that has room for a standard ATX (PS2) power supply and support for some the biggest consumer graphics cards on the market with superb air cooling performance. Designed for use in either vertical or horizontal orientation, it can be placed comfortably in any space-constrained environment that requires a powerful PC. For those looking to build a slim form factor PC with extra flair, the RVZ03â„¢s inclusion of RGB lighting and control box bring about another exciting chapter to the famed RAVEN series of computer cases.

  • Signature RAVEN styled front panel adorned with brilliant RGB light strip
     Maximum performance in slim form factor with support for AIO liquid cooling
     Positive air pressure design for excellent cooling/quietness and dust-prevention
     Fits in nearly any environment with horizontal or vertical orientation


1572322486518555

MaterialReinforced plastic outer shell, steel body
MotherboardMini-DTX, Mini-ITX
Drive bayInternal2.5" x 4*
Cooling systemTop1 x 120mm fan, 1500rpm, 18dBABottom1 x 120mm fan, 1500rpm, 18dBA
1 x 120mm fan slot
Expansion slot2
Front I/O portUSB 3.0 x 2
audio x 1
MIC x
Power supplyStandard PS2(ATX)
Expansion cardCompatible up to 13" (330mm) long, width restriction-5.88" (149mm)
Limitation of CPU cooler83mm
Limitation of PSU150mm**
Net weight4.05 kg
Dimension382mm (W) x 105mm (H) x 350mm (D), 14 Liters
15.04" (W) x 4.13" (H) x 13.78" (D), 14 Liters
ExtraSupport Kensington lock
PCI Express riser card set x 1

Reviews

4.0
Based on 2 ratings2 ratings
5☆
4☆
3☆
2☆
1☆
Reviews (2)
Write Review
Write Review
Reviews (2)
Powered by TestFreaks
rick
•

Great case to work in - even with an ATX PSU.

I didn't read the manual particularly well and almost missed things like the GPU support. Cable management details leave a lot to be desired, even when using minimal PSU cables - I don't recall seeing any tie down points anywhere. I guess they presume you are using SFX and stuffing the excess length in the PSU housing area.

Also, I strongly endorse benching the entire setup BEFORE you install in this chassis just to confirm everything works because it really is a tight fit and if you have big hands, good luck working in there after the fact.

I messed up the size of my PSU, thought it was 150mm long but is actually 160mm long and while I don't recommend it for long term use you can remove the ssd mount right in front of the psu area to give some extra room, but be careful, as you are also removing multiple points to secure the GPU frame, and if you are lazy with cable management, you'll have a rats nest down in with the case fans and GPU fans.

I used silverstone's NT06-Pro v2 cooler in this but after having worked with that cooler in this case, I'd strongly recommend something like the Cryorig C7 Cu just for the sake of being able to install it on the motherboard before the motherboard goes in the chassis and the TDP is about the same.

If you do use the RGB control box you'll have a bit of a challenge finding a place to put it in the case, especially if you aren't using a SFX PSU. I had a look at placing it even though I wasn't using it and the only other place I could find was in the GPU chamber, if you're using SFX there should be plenty of room in front of the PSU to keep it secure.

Pros:Majority of low profile coolers will not be an issue but you may have cable routing issues depending on the motherboard placement of CPU and 24 pin headers; I recommend the Cryorig C7 Cu or similar just to reduce this risk, Very small footprint, my monitor takes up more space than this does
Cons:Definitely go SFX PSU, your life will be so much easier, Would have been nice if the dust covers for the GPU vents was one piece rather than two or had slightly more grab, While the RGB control box was a nice touch you're unlikely to need it, especially if you have RGB headers on your motherboard
Broken_Gambler
•

This review is long. Feel free to skip to the Pros and Cons for the important bits.

This case. It's compact, it's well built and it's truly beautiful. There's a lot to love about this little metal box, and its RGB panel.

I spent a long time looking for a case like this. It's a mini-itx that can take a full size graphics card (I currently have a GTX 970). Its light enough, even when fully decked out to slip it under your arm and carry it with you through the house.

Comes with 3 magnetic filters for the intakes (definitely needed). But only 2 fans. Can hold an excellent mid to upper gaming PC or a truly epic and beautiful HTPC.

Things to be aware of, if you put a full size PSU in this, (which does fit as long as its within the size limits listed) you won't be able to use one of the SSD mounts, theres just not enough clearance for cables. The HDD mount is only accessible if you use a mini-itx graphics card, and it is also the only spot where an AIO cpu cooler can be mounted as well (not that one is needed).

The included RGB control box is a nice touch for those who are running a non-LED MB, it can be a little ungainly to add yet another box inside the case though.

Finding a cpu cooler might be the biggest hassle with this one, the case clearance is slightly less than many coolers (by 1-2mm). It might be possible to squeeze one of those in or just go low profile.

If you like fiddling with cable management (theres no real help in the manual), want a small PC that's amazing to look at and manages to keep temps manageable, this might just fit the bill.

If portability is more important than looks, I'd recommend the ML08-H instead, it's the case that the Raven was designed from, but it has a handle making it far more portable.

If you still need a ODD (which this case cannot support), the older model RVZ02 has space for one.

Pros:Designed to go vertical or horizontally (feet included for both), Full length GPU support, Truly Gorgeous, a real beauty, Extremely portable (even without a handle)
Cons:Theres a lot of misinformation about what can fit in this case., Only 1 or 2 ATX PSUs that can fit in case, Cabling can be a hassle. No documentation available., Some minor upgrades require full disassembly (GPU)
