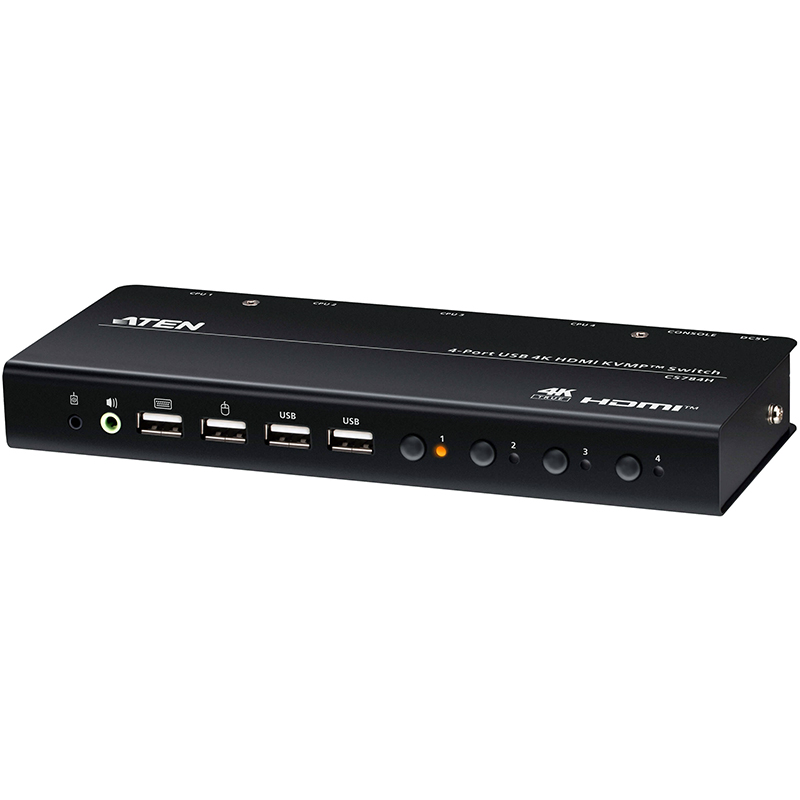

Aten 4 Port USB 4K HDMI KVMP Switch with Cables Included (CS784H)

4‑PC KVM switch with HDMI (up to 4096×2160@60Hz) and USB2.0 support, 4 push‑button selectors, hotkey/mouse/remote control, 2 USB‑A console ports, audio jack, 4 orange status LEDs, DC5V power, includes all cables.

Aten 4 Port USB 4K HDMI KVMP Switch with Cables Included (CS784H)
  • KVM-Switches-Aten-4-Port-USB-4K-HDMI-KVMP-Switch-with-Cables-Included-CS784H-5
  • KVM-Switches-Aten-4-Port-USB-4K-HDMI-KVMP-Switch-with-Cables-Included-CS784H-2
  • KVM-Switches-Aten-4-Port-USB-4K-HDMI-KVMP-Switch-with-Cables-Included-CS784H-3
$177.7 Question Mark
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 50hrs and 18mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Aten 4 Port USB 4K HDMI KVMP Switch with Cables Included (CS784H)
  • Model Number:
    CS784H
  • Brand:
  • Warranty Period:
    1 Year

Description

KVM-Switches-Aten-4-Port-USB-4K-HDMI-KVMP-Switch-with-Cables-Included-CS784H-1




SPECIFICATIONS:

GENERAL


Computer Connections

4

Port Selection

Hotkey, Pushbutton, Mouse, Remote Port Selector

CONNECTORS


Console Ports

2 x USB Type A Female

1 x HDMI Female (Black)

1 x 3.5mm Audio Jack Female (Green; 1 x front)

KVM (Computer) Ports

4 x USB2.0 Type B Female (Blue)

4 x HDMI Female (Black)

Power

1 x DC Jack

USB Hub

2 x USB2.0 Type A Female (White; 2 x front)

SWITCHES


Selected

4 x Pushbutton

LEDS


On Line /Selected

4 (Orange)

EMULATION


Keyboard / Mouse

USB

Video

Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz

Scan Interval

1-99 Seconds (Default: 5 sec.)

Power Consumption

DC5V:1.73W:34BTU/h



Note:

â—Ź The measurement in Watts indicates the typical power consumption of the device with no external loading.

â—Ź The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL


Operating Temperature

0-40°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

PHYSICAL PROPERTIES


Housing

Metal, Plastic

Weight

0.47 kg ( 1.04 lb )

Dimensions (L x W x H)

20.23 x 8.17 x 2.50 cm

(7.96 x 3.22 x 0.98 in.)

OTHERS


Cables Included

All HDMI & USB cables included
