NZXT H9 Flow RGB Mid-Tower ATX Case - White (CM-H92FW-R1)

NZXT H9 Flow RGB Mid-Tower ATX Case - White (CM-H92FW-R1)

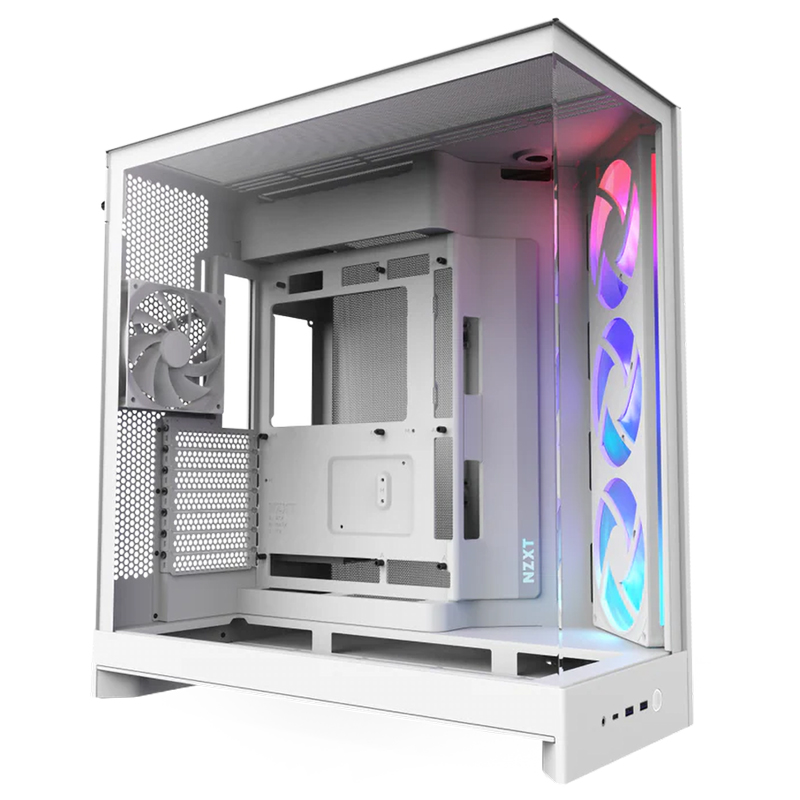

  • NZXT-Cases-NZXT-H9-Flow-RGB-Mid-Tower-ATX-Case-White-CM-H92FW-R1-3
$249.0
Was: $299.0  WAS Tips    Save $50.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 20hrs and 14mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    NZXT H9 Flow RGB Mid-Tower ATX Case - White (CM-H92FW-R1)
  • Model Number:
    CM-H92FW-R1
  • Brand:
  • Warranty Period:
    2 Year

Description

NZXT-Cases-NZXT-H9-Flow-RGB-Mid-Tower-ATX-Case-White-CM-H92FW-R1-1



SPECIFICATIONS:

DIMENSIONS


Height

506 mm (19.9 in)

Width

315 mm (12.4 in)

Depth

481 mm (18.9 in)

Volume

76.7 L

Weight

12.6 kg (27.78 lb)

GENERAL


Enclosure Type

Mid-tower

Motherboard Compatibility

E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support

(BTF, Project Zero)

Yes (ATX, Micro-ATX)

Materials

SGCC steel, clear tempered glass

CLEARANCE


CPU Cooler Height

165 mm

GPU Length

Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length

200 mm

Top Radiator & Fan Thickness

Up to 80 mm (360 mm) Up to 62 mm (420 mm)

FRONT I/O PORTS


USB 3.2 Type-A

2

USB 3.2 Gen2x2 Type-C

1

Headset Jack

1

EXPANSION SLOTS


Standard

7

Vertical

0

DRIVE BAYS


2.5"

4+2

3.5"

2

FAN SUPPORT


Front-Right

3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top

3 x 120 mm / 3 x 140 mm

Bottom

3 x 120 mm / 3 x 140 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

RADIATOR SUPPORT


Front-Right

Up to 420 mm

Top

Up to 420 mm

Bottom

Up to 360 mm

Rear

Up to 120 mm

FAN SPECS - F420 RGB CORE


Model

F420 RGB Core

Speed

2,000 ± 200 RPM

Airflow

98.61 CFM

Static Pressure

3.2 mmH2O

Noise

34.5 dBA

Fan Connector

8-pin w/ splitter

FAN SPECS - F120Q (CV)


Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin

OTHERS


What’s in the Box

H9 Flow RGB x 1

Pre-installed F420 RGB Core x 1

Pre-installed F120Q (CV) x 1

Installation accessories x 1

User guide x 1
