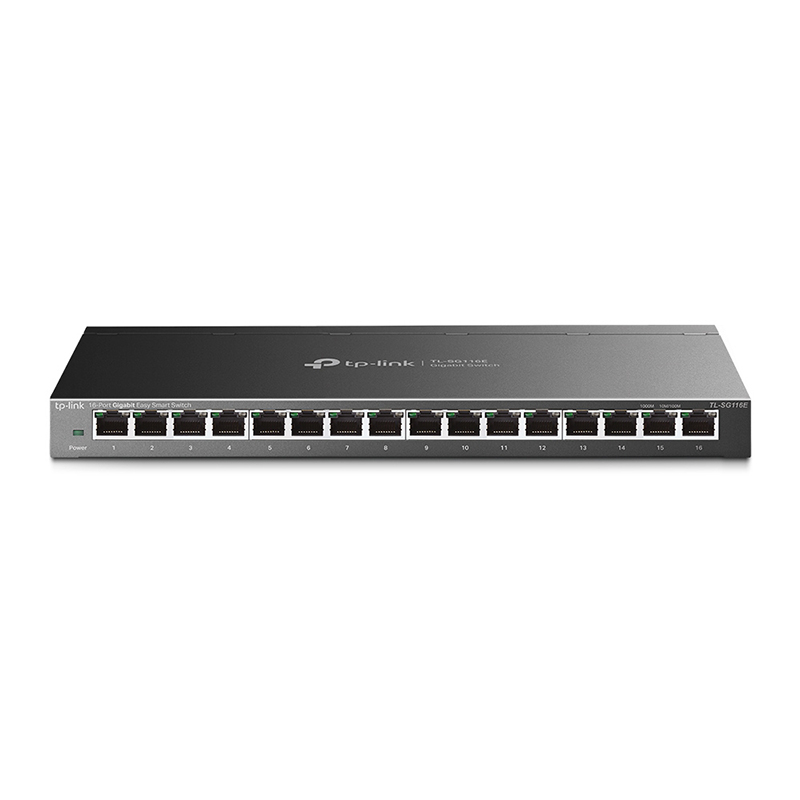

TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)

16‑port Gigabit Ethernet fanless switch, 32 Gbps capacity, 23.81 Mpps, 4.1 Mb buffer, 9 KB jumbo frames, QoS (port/802.1p/DSCP, 4 queues, rate‑limit, storm control), IGMP snooping, link aggregation, port mirroring, cable diagnostics, 32 VLANs, FCC/CE/RoHS.

TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-8
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-4
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-2
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-3
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-5
  • Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-6
$99.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 10hrs and 23mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-TP-Link-16-Port-Gigabit-Unmanaged-Pro-Switch-UN-2-40-SG116E-1




SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 12VDC/1.0A)

Dimensions ( W x D x H )

11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm)

Max. Power Consumption

9.19W(220V/50Hz)

Max. Heat Dissipation

31.36BTU/h

PERFORMANCE


Packet Buffer Memory

4.1Mb

Jumbo Frame

9KB

Switching Capacity

32Gbps

Packet Forwarding Rate

23.81Mpps

MAC Address Table

8K

SOFTWARE FEATURES


Quality of Service

Support Port-based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method

Store-And-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-SG116E

Power Cord

Installation Guide

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 16-Port Gigabit Unmanaged Pro Switch - UN/2.40 (SG116E)
  • Model Number:
    SG116E
  • Brand:
  • Warranty Period:
    5 Year
