TP-Link SafeStream Gigabit Multi-WAN VPN Router

TP-Link SafeStream Gigabit Multi-WAN VPN Router
  • TP-Link SafeStream Gigabit Multi-WAN VPN Router
  • TP-Link SafeStream Gigabit Multi-WAN VPN Router
  • TP-Link SafeStream Gigabit Multi-WAN VPN Router
$179.0
Was: $195.0 WAS Tips   Save $16.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Free Click & Collect  Question Mark

Your store is set to:

Loading...

   Fast Delivery  Question Mark

Order within 15hrs and 54mins
for Next Day Dispatch

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Click & Collect.

Specifications

  • Product Name:
    TP-Link SafeStream Gigabit Multi-WAN VPN Router
  • Model Number:
    ER7206
  • Brand:
  • Manufacturer Warranty:
    3 Year
  • Description

    Please Check Modem/Router Compatibility with your Service Providers Before Purchasing



    SPECIFICATIONS:

    HARDWARE FEATURES

    Standards and Protocols

    • IEEE 802.3,   IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
      • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP,   OpenVPN, SNMP

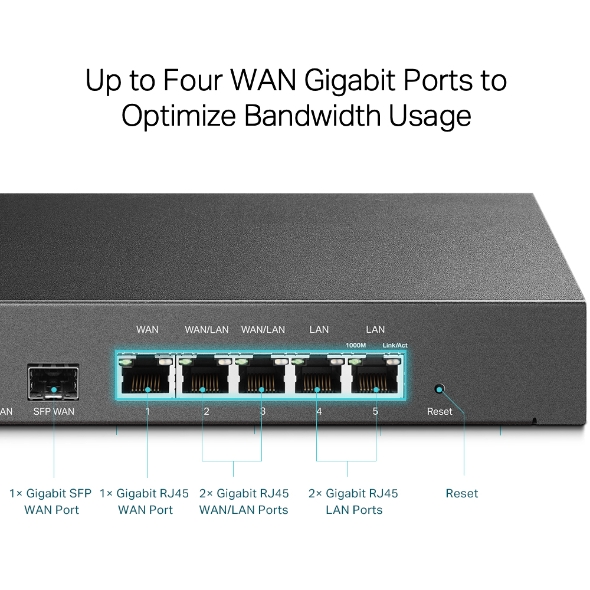

    Interface

    • 1 Fixed Gigabit SFP   WAN Port
      • 1 Fixed Gigabit RJ45 WAN Port
      • 2 Fixed Gigabit RJ45 LAN Ports
      • 2 Changeable Gigabit RJ45 WAN/LAN Ports

    Network Media

    • 10BASE-T: UTP category   3, 4, 5 cable (Max 100m)
      EIA/TIA-568 100
    Ω STP (Max   100m)

    100BASE-TX:   UTP category 5, 5e cable (Max 100m)
      EIA/TIA-568 100
    Ω STP (Max   100m)

    1000BASE-T:   UTP category 5, 5e, 6 cable (Max 100m)

    Button

    Reset Button

    Power Supply

    100–240 V~50/60 Hz

    Flash

    SPI 4MB + NAND 128MB

    DRAM

    512MB

    LED

    PWR, SYS, SFP WAN, WAN   (Speed, Link/Act), LAN (Speed, Link/Act)

    Dimensions ( W x D x H )

    8.9 × 5.2 × 1.4 in (226   × 131 × 35 mm)



    PERFORMANCE

    Concurrent Session

    150,000

    IPsec VPN Throughput

    291.6 Mbps



    BASIC FUNCTIONS

    WAN Connection Type

    • Static/Dynamic IP
      • PPPoE
      • PPTP
      • L2TP

    MAC Clone

    Modify WAN/LAN MAC   Address

    DHCP

    • DHCP Server
      • DHCP Address Reservation
      • Multi-IP Interfaces*
      • Multi-Net DHCP*

    IPv6

    Developing

    VLAN

    802.1Q VLAN

    IPTV

    IGMP v2/v3 Proxy



    ADVANCED FUNCTIONS

    ACL

    IP/Port/Protocol/Domain   Name Filtering

    Advanced Routing

    • Static Routing
      • Policy Routing

    Bandwidth Control

    • IP/Port-based   Bandwidth Control
      • Guarantee & Limited Bandwidth

    Load Balance

    • Intelligent Load   Balance
      • Application Optimized Routing
      • Link Backup (Timing§, Failover)
      • Online Detection

    NAT

    • One-to-One NAT§
      • Multi-Net NAT
      • Virtual Server
      • Port Triggering§
      • NAT-DMZ
      • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

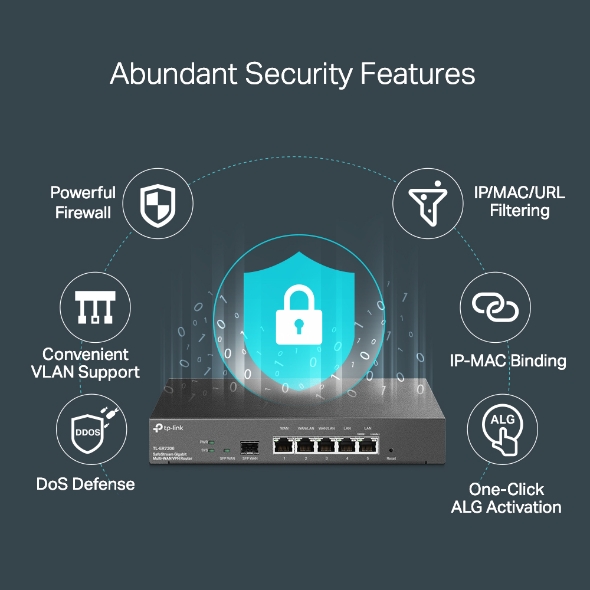

    Security

    • SPI Firewall
      • VPN Passthrough
      • FTP/H.323/PPTP/SIP/IPsec ALG
      • DoS Defence, Ping of Death
      • Local Management

    Session Limit

    IP-based Session Limit



    VPN

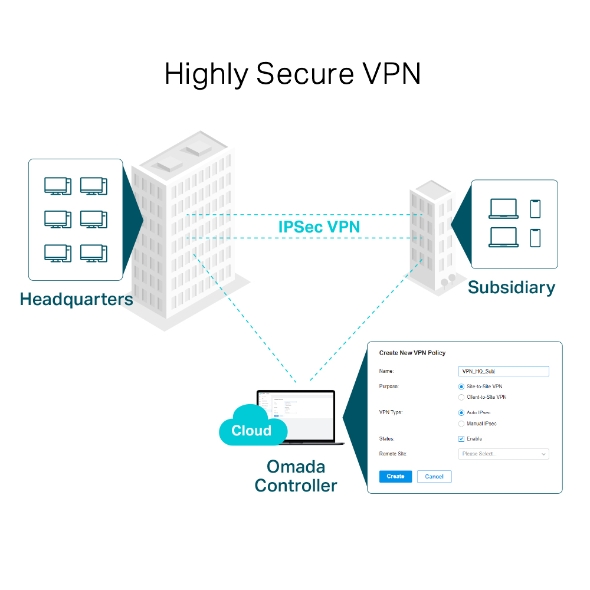

    IPsec VPN

    • 100 IPSec VPN Tunnels
      • LAN-to-LAN, Client-to-LAN
      • Main, Aggressive Negotiation Mode
      • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
      • IKEv1/v2*
      • MD5, SHA1 Authentication Algorithm
      • NAT Traversal (NAT-T)
      • Dead Peer Detection (DPD)
      • Perfect Forward Secrecy (PFS)

    PPTP VPN

    • PPTP VPN Server
      • 10 PPTP VPN Clients
      • 50 Tunnels
      • PPTP with MPPE Encryption

    L2TP VPN

    • L2TP VPN Server
      • 10 L2TP VPN Clients
      • 50 Tunnels
      • L2TP over IPSec

    OpenVPN

    • OpenVPN Server*
      • 10 OpenVPN Clients*
      • 50 OpenVPN Tunnels*



    SECURITY

    Filtering

    WEB Group Filtering§
      URL Filtering
      Web Security§

    ARP Inspection

    • Sending GARP Packets§
      • ARP Scanning§
      • IP-MAC Binding§

    Attack Defense

    • TCP/UDP/ICMP Flood   Defense
      • Block TCP Scan (Stealth FIN/Xmas/Null)
      • Block Ping from WAN

    Access Control

    Source/Destination IP   Based Access Control



    AUTHENTICATION

    Web Authentication

    • No Authentication
      • Simple Password*
      • Hotspot
    Local User / Voucher* / SMS* / Radius*
      • External Radius Sever
      • External Portal Sever*
      • Facebook*



    MANAGEMENT

    Omada App

    Yes

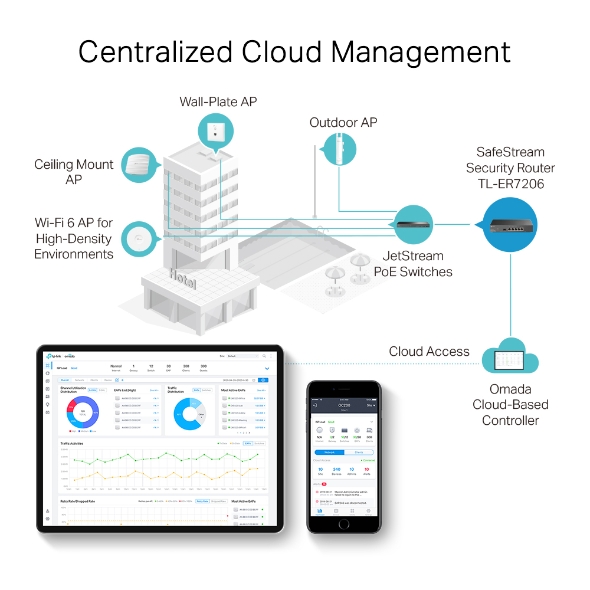

    Centralized Management

    • Omada Cloud-Based   Controller
      • Omada Hardware Controller (OC300)
      • Omada Hardware Controller (OC200)
      • Omada Software Controller

    Cloud Access

    Yes (Through OC300,   OC200, Omada Cloud-Based Controller, or Omada Software Controller)

    Service

    Dynamic DNS (Dyndns,   No-IP, Peanuthull, Comexe)

    Maintenance

    • Web Management   Interface
      • Remote Management
      • Export & Import Configuration
      • SNMP v1/v2c/v3*
      • Diagnostics (Ping & Traceroute)§
      • NTP Synchronize§
      • Syslog Support

    Management Features

    • Automatic Device   Discovery
      • Intelligent Network Monitoring
      • Abnormal Event Warnings
      • Unified Configuration
      • Reboot Schedule
      • Captive Portal Configuration
      • ZTP (Zero-Touch Provisioning)**



    OTHERS

    Certification

    CE, FCC, RoHS

    Package Contents

    • TL-ER7206
      • Power Cord
      • Quick Installation Guide

    System Requirements

    Microsoft Windows 98SE,   NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

    Environment

    • Operating Temperature:   0–40 (32–104 );
      • Storage Temperature: -40–70
    (-40–158 )
      • Operating Humidity: 10–90% RH non-condensing
      • Storage Humidity: 5–90% RH non-condensing
