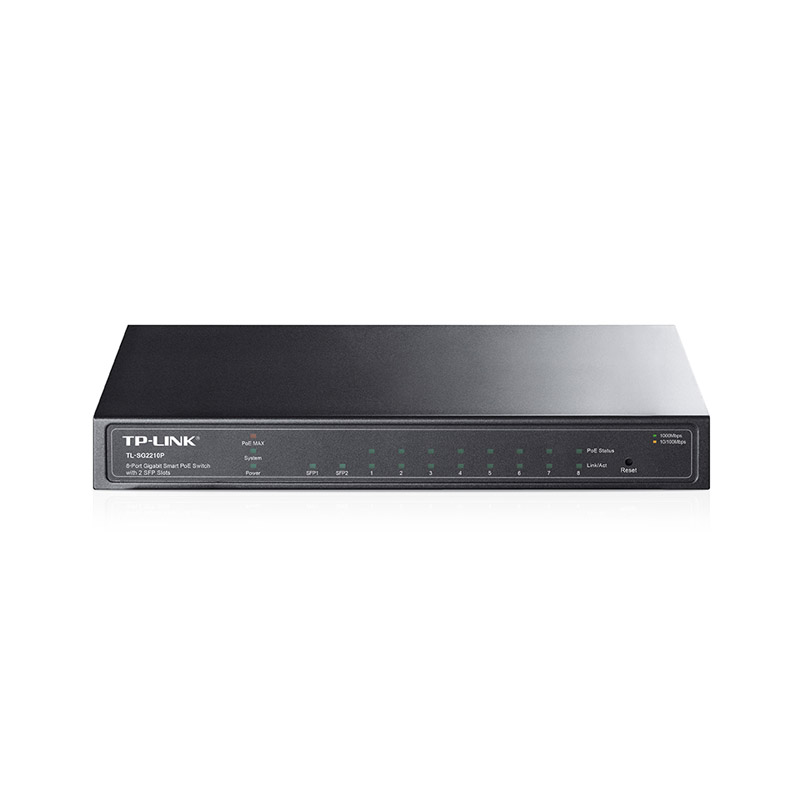

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, PoE power budget of 53W, 8

TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, PoE power budget of 53W, 8
  • TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, PoE power budget of 53W, 8
RRP:$139.0    Save $10.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Add to Wishlist

   Free Pick Up

Your store is set to:


   Fast Delivery

Dispatched within 1-2 business days


  Stock Levels May Vary

If you’re collecting from a Umart Store, don’t forget to choose a Pick Up location to see our live stock levels!


  • Product Name:
    TP-Link TL-SG2210P 8-Port Gigabit Smart PoE Switch with 2 SFP Slots, PoE power budget of 53W, 8
  • Model Number:
  • Brand:
  • Manufacturer Warranty:
    36 Months
  • Description


    • Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features

    • Gigabit Ethernet connections on all ports provide full speed of data transferring

    • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment

    •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications

    • WEB/CLI managed modes, SNMP, RMON bring abundant management features

    •  Innovative energy-efficient technology saves up to 50% of power consumption

    • What This Product Does

    • TP-LINK Gigabit Smart Switch TL-SG2210P is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard with total PoE power budget of 53W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

      TP-LINK™s Gigabit Smart Switch TL-SG2210P is especially designed for the small and medium business networks that require efficient network management. TL-SG2210P comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What™s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

      IEEE 802.3af-compliant Power over Ethernet

    • The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It™s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.

      Advanced QoS Features

    • To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

      Abundant Layer 2 Features

    • For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

      Enterprise Level Management Features

    • TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.



    FeaturesPoE Features
    •  Standard: 802.3af compliant

    •  PoE Ports: 8 Ports

    •  Power Supply: 53W

    Layer 2 Features
    • Static Link Aggregation/ Link Aggregation Control Protocol (LACP)

    • Up to 512 VLANs simultaneously(out of 4K VLAN IDs)


    • IGMP Snooping


    Quality of Service
    • 4 priority queues

    • Support IEEE 802.1P

    • DSCP QoS

    • Rate limit feature

    Security Strategies
    • Access Control List (L2~L4 ACL)

    • Port Security

    • Storm Control

    • SSL and SSH encryptions

    • Web-based GUI

    • Command Line Interface(Telnet)

    • SNMP v1/v2c/v3

    • RMON (1, 2, 3, 9 group)

    Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
       IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
       IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
    Interface8 10/100/1000Mbps RJ45 Ports
       2 1000Mbps SFP Slots
       (Auto-Negotiation/Auto MDI/MDIX)
    Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
       100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
       (maximum 100m)
       100BASE-FX: MMF, SMF
       1000BASE-X: MMF, SMF
    PoE Ports (RJ45)Standard: 802.3af compliant
       PoE Ports: 8 Ports
       Power Supply: 53W
    Dimensions (W X D X H)8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
    Fan QuantityFanless
    Power ConsumptionMaximum (PoE on): 63.4W (220V/50Hz)
       Maximum (PoE off): 10.4W (220V/50Hz)
    Power Supply100~240VAC, 50/60Hz
    MAC Address Table8k
    Packet Buffer Memory512KB
    Packet Forwarding Rate14.9Mpps
    Jumbo Frame9216 Bytes
    L2 Switching FeaturesIGMP Snooping V1/V2/V3
       802.3ad LACP (Up to 6 aggregation groups,
       containing 4 ports per group)
       Spanning Tree STP/RSTP/MSTP
       BPDU Filtering/Guard
       TC/Root Protect
       Loop back detection
       802.3x Flow Control
    Quality of ServiceSupport 802.1p CoS/DSCP priority
       Support 4 priority queues
       Queue scheduling: SP, WRR, SP+WRR
       Port/Flow- based Rate Limiting
       Voice VLAN
    VLANSupports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
    Access Control ListL2L4 package filtering based on source and destination
       MAC address, IP address, TCP/UDP ports, 802.1p,
       DSCP, protocol and VLAN ID
       Time Range Based
    SecuritySSH v1/v2
       SSL v2/v3/TLSv1
       Port Security
       Broadcast/Multicast/Unknown unicast Storm Control
    ManagementWeb-based GUI and CLI management
       SNMP v1/v2c/v3, compatible with public MIBs and
       TP-LINK private MIBs
       RMON (1, 2, 3, 9 groups)
       CPU Monitoring
       Port Mirroring
       Time Setting: SNTP
       Firmware Upgrade: TFTP & Web
       System Diagnose: VCT
       SYSLOG & Public MIBS
    CertificationCE, FCC, RoHS
    Package ContentsTL-SG2210P
       Power Adapter
       Quick Installation Guide
       Resource CD
       Rubber Feet
    System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
    EnvironmentOperating Temperature: 0ƒ~40ƒ (32‰~104‰);
       Storage Temperature: -40ƒ~70ƒ (-40‰~158‰)
       Operating Humidity: 10%~90% non-condensing
       Storage Humidity: 5%~90% non-condensing

    * Specifications are subject to change without notice.
    * Specifications may vary.
    * The product picture(s) is only for your reference, it may differ from the actual product.
