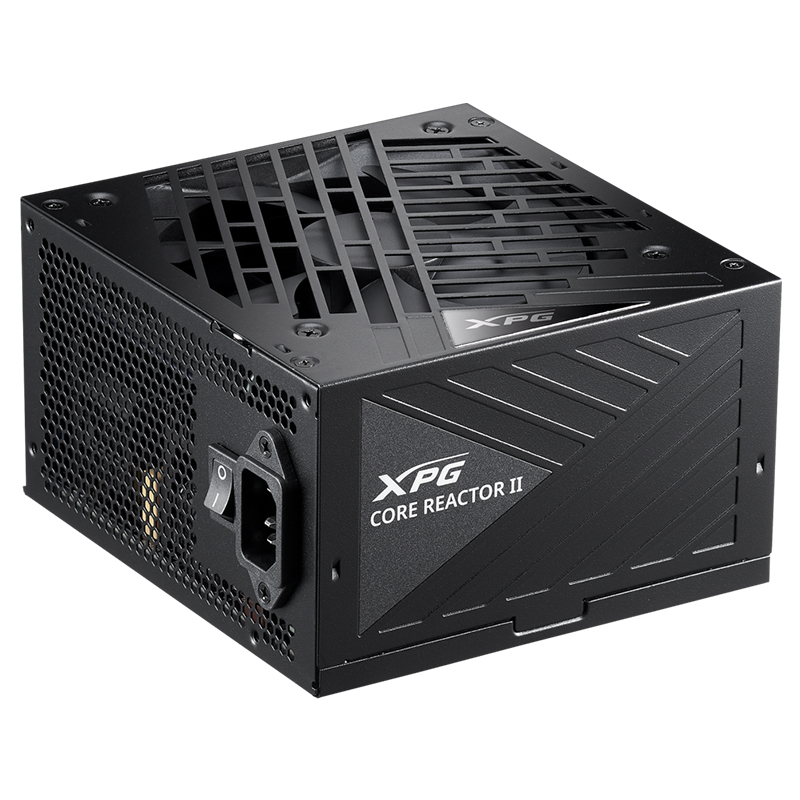

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)

140×150×86 mm ATX 3.1 PSU, 80 Plus Gold, 1762 W power‑excursion, 22 A @5 V/3.3 V, 62.5 A @12 V, 120 mm FDB fan 2400 RPM, MTBF 100k h, OCP/OVP/OPP/OTP/UVP/SCP/NLO/SIP protections, full CE/FCC/TUV certifications.

ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)
  • Power-Supply-PSU-ADATA-XPG-750W-Core-Reactor-II-80-Gold-PCIe-5-0-ATX-3-1-Fully-Modular-Power-Supply-COREREACTORII750G-BKCAU-7
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-4
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-2
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-3
  • Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-5
$179.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 3hrs and 59mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    ADATA XPG 750W Core Reactor II 80+ Gold PCIe 5.0 ATX 3.1 Fully Modular Power Supply (COREREACTORII750G-BKCAU)
  • Model Number:
    COREREACTORII750G-BKCAU
  • Brand:
  • Warranty Period:
    10 Year

Description

Power-Supply-PSU-XPG-750W-Core-Reactor-II-80-Gold-Gen-5-ATX-3-1-Modular-Power-Supply-COREREACTORII750G-BKCAU-1



SPECIFICATIONS:

Dimensions (L x W x H)

140 x 150 x 86mm

80 Plus Rating

GOLD

ATX Version

ATX 3.1

Protections

OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC

> 0.99

Input Voltage

100-240V

Input Current

10A

Input Frequency

47Hz–63Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

+5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A

Power Excursion

1762W (*up to 235% of the PSU's rated power for 100μs)

Operating Temperature

50°C

Fan Size

120mm FDB Fan

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2400 RPM

MTBF

100K hours at full load

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

PCI-E 6+2 Pin Connector

6

Molex 4 Pin Connector

4

12V-2x6 / 12VHPWR (12+4) Connector (600W)

1

SATA Connector

8

Weight

Product+cables1596g+1254g

with Package:3.1kg
