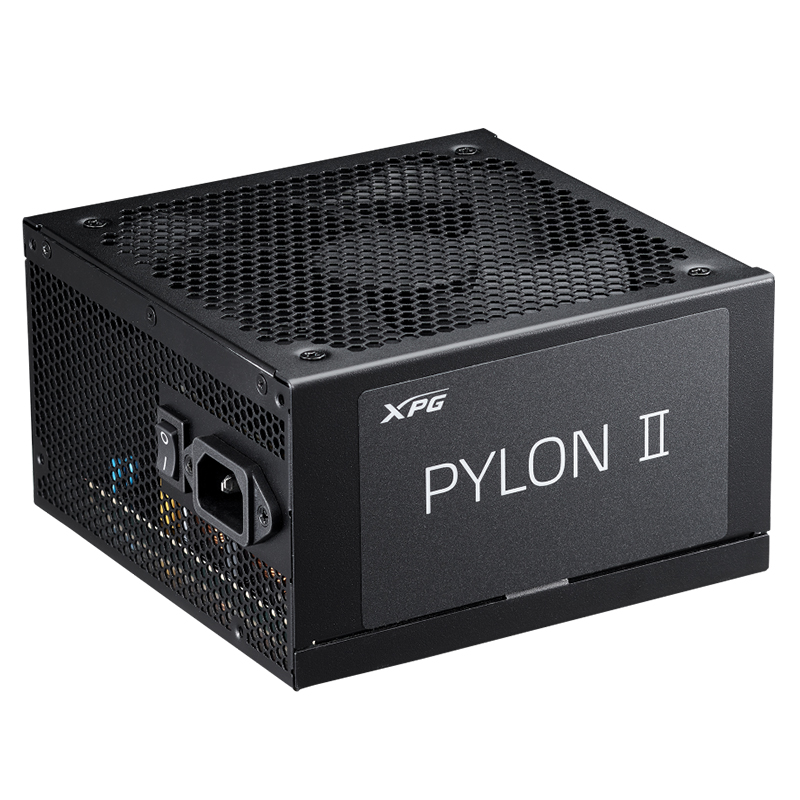

ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)

Compact 150×150×86 mm PSU, 80 Plus Bronze, ATX v3.1. 0.99 PFC, 100‑240 V/10 A, 50‑60 Hz. Protections: OVP/OPP/SCP/OCP/UVP/OTP/NLO/SIP. 1527 W peak, +5V/3.3V/12V/‑12V/5Vsb outputs (20/20/54/0.3/3 A). 135 mm FDB fan 2300 RPM, MTBF 100k h, 1.8 kg.

ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-Non-Modular-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-7
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-3
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-2
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-4
  • Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-5
$59.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 4hrs and 3mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    ADATA XPG Pylon II 650W 80+ Bronze Non-Modular ATX 3.1 Power Supply (PYLONII650B-BKCAU)
  • Model Number:
    PYLONII650B-BKCAU
  • Brand:
  • Warranty Period:
    5 Year

Description

Power-Supply-PSU-ADATA-XPG-Pylon-II-650W-80-Bronze-ATX-3-1-Power-Supply-PYLONII650B-BKCAU-1



SPECIFICATIONS:

Dimensions (L x W x H)

150 x 150 x 86 mm

80 Plus Rating

BRONZE

ATX Version

Intel ATX v3.1

Protections

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

PFC

0.99

Input Voltage

100-240V

Input Current

10A

Input Frequency

50-60Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

+5V/+3.3V: 20A, +12V: 54A, -12V: 0.3A, +5Vsb: 3A

Power Excursion

1527W (up to 235% of PSU’s rated power for 100µs)

Operating Temperature

50°C

Fan Size

135mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2300Âą10 RPM

MTBF

100,000 hours at 25℃

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

Molex 4 Pin Connector

2

12V-2x6 / 12VHPWR Connectors (450W)

1

SATA Connector

6

Weight

1.8 kg
