Name

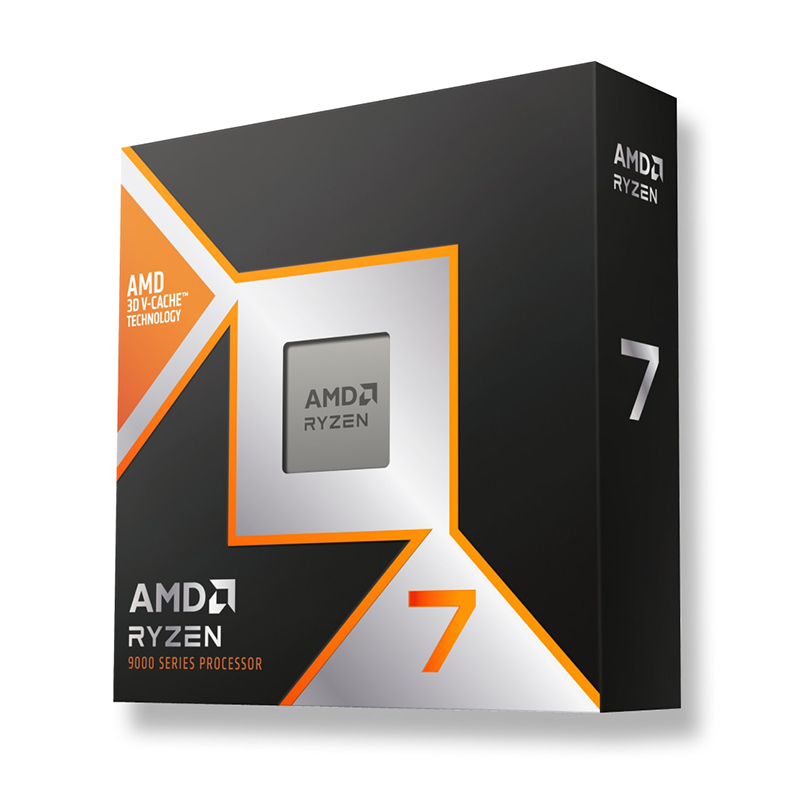

AMD Ryzen™ 7 9850X3D

Family

Ryzen

Series

Ryzen 9000 Series

Form Factor

Desktops, Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Former Codename

Granite Ridge AM5

Processor Architecture

Zen 5

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.6 GHz

Base Clock

4.7 GHz

L1 Cache

640 KB

L2 Cache

8 MB

L3 Cache

96 MB

Default TDP

120W

Processor Technology for CPU Cores

TSMC 4nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

Package Die Count

2

Unlocked for   Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

95°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

CONNECTIVITY

Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 2.0 (480Mbps)

1

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28 , 24

NVMe Support

Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

192 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R: DDR5-5600

2x2R: DDR5-5600

4x1R: DDR5-3600

4x2R: DDR5-3600

ECC Support

Yes (Requires mobo support)

GRAPHICS CAPABILITIES

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

SECURITY

AMD Secure Processor   Support

Yes

AMD Platform Secure Boot

Yes

Windows Secure Boot Support

Yes

UEFI Secure Boot Support

Yes

Windows Device Guard Support

Yes

Supervisor Mode Execution Prevention (SMEP)

Yes

Guest Mode Execution (GMET) Trap Support

Yes

Virtualization-Based Security (VBS) Support

Yes

Windows Secured-Core PC Support

Yes

Firmware TPM

Yes

AMD-V (SVM) Support

Yes

AMD AVIC (Interrupt Virtualization) Support

Yes

AMD-Vi (I/O MMU Virtualization) Support

Yes

Second Level Address Translation (SLAT) Supported

Yes

Advanced Encryption Standard New Instructions (AES-NI)

Yes

AMD Enhanced Virus Protection (NX bit)

Yes

AMD Shadow Stack

Yes
