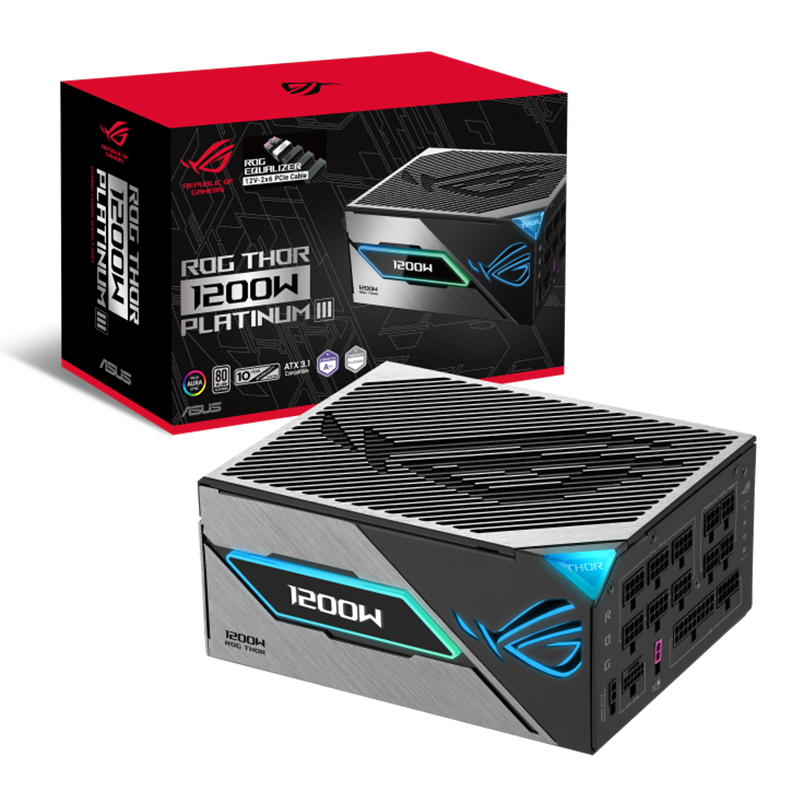

Asus 1200W ROG Thor Platinum III (ROG Equalizer) 80+ Platinum Cybenetics ATX12V Power Supply (ROG-THOR-1200P3-GAMING-E)

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Platinum

Cybenetics Efficiency

Platinum (230V) ; Platinum (115V)

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

30A 25A 100A 0.3A 3A

Combined Load

125W 125W 1200W 3.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (12V-2x6)

PCI-E 6+2-pin x 4

SATA x 7

PERIPHERAL   x 6

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (1000mm)

ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)

PCI-E Cable 1-to-1 x 4 (750mm)

SATA Cable 1-to-4 x 1 (400+120+120+120mm)

SATA Cable 1-to-3 x 1 (400+120+120mm)

Peripheral 1-to-3 x 2 (400+150+150mm)

Addressable RGB Cable x 1 (800mm)

ROG sticker x 1

ROG cable tie x 6

Chassis Screws Package x 1

Cable Tie x 12

User Manual x 1

Dimensions

190 x 150 x 86 mm

Weight

2.37 KG (single PSU)

Cybenetics Noise Level Certification

A++

AURA SYNC

Yes

MTBF

>120,000 hrs @ 25°C

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a   certain load. When the Button is OFF, the fan will continuously spin at all load levels.
