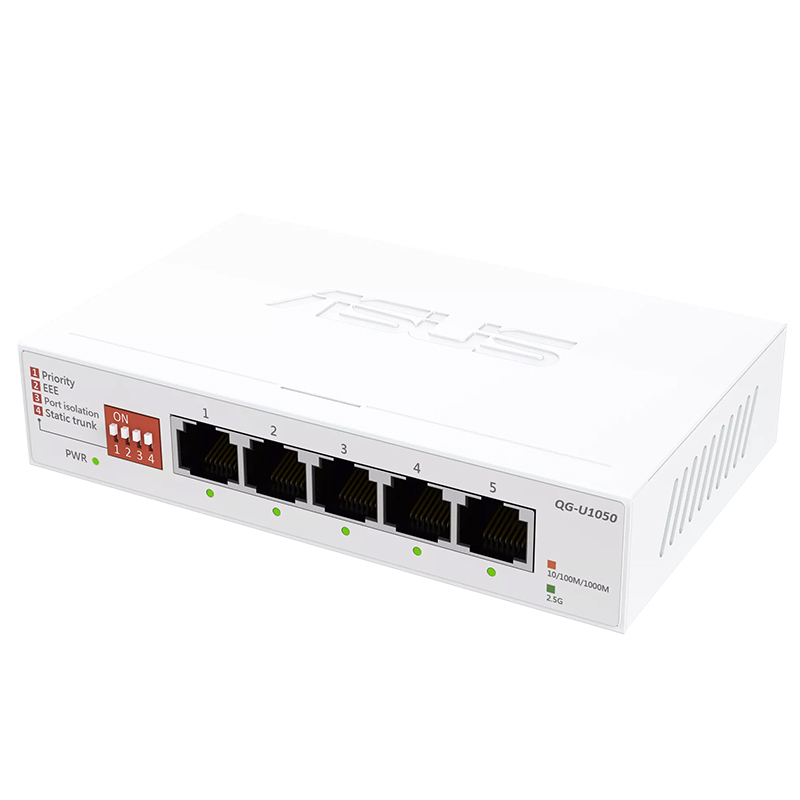

Asus 5-Port 2.5G Unmanaged Switch (QG-U1050)

ASUS QG‑U1050 offers 5 × 2.5 GbE ports supporting 100/1000/2.5 GbE, IEEE802.3az EEE, flow control, 16K MAC table, 8 Mbit buffer, 10 KB jumbo frames, 18.6 Mpps forwarding, LED status, powered by 12 V/1 A adapter.

Asus 5-Port 2.5G Unmanaged Switch (QG-U1050)
  • Switches-Asus-5-Port-2-5G-Unmanaged-Switch-QG-U1050-6
  • Switches-Asus-5-Port-2-5G-Unmanaged-Switch-QG-U1050-2
  • Switches-Asus-5-Port-2-5G-Unmanaged-Switch-QG-U1050-3
  • Switches-Asus-5-Port-2-5G-Unmanaged-Switch-QG-U1050-4
$99.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 1hrs and 26mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Asus 5-Port 2.5G Unmanaged Switch (QG-U1050)
  • Model Number:
    QG-U1050
  • Brand:
  • Warranty Period:
    3 Year

Description

Switches-Asus-5-Port-2-5G-Unmanaged-Switch-QG-U1050-1



SPECIFICATIONS:

Port Attributes

5 x 2.5G ports

Standard

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3bz 2.5G BASE-T

IEEE802.3az EEE

IEEE802.3x Flow control

Color

White

Performance

MAC address Table: 16K

Packet buffer: 8Mbits

Jumbo Frame: 10K bytes

Forwarding Rate: 18.6Mpps (64-byte)

LED Indicator

Power LED

On: The switch is powered on.

Off: The switch is powered off or the power supply is abnormal.

Blinking: Loop detected.



Port LED (Link/ACT)

Off: Devices are disconnected or the link has failed.

Green On: 2.5Gbps connection

Amber On: 10/100/1000Mbps connection

Blinking: Devices are connected and data is transmitting or receiving. When a loop is detected, the port LED blinks rapidly.

Power Supply

External Power Adapter

Output: 12V/1A

Environmental

Operating Temperature: 0 ~ 40

Storage Temperature: -40 ~ 70

Operating Humidity: 10% ~ 90% RH (non-condensing)

Storage Humidity: 5% ~ 90% RH (non-condensing)

Package Content

ASUS QG-U1050 Switch

Power Adapter

Quick Start Guide

Warranty Card

Product Weight (g)

230 g

Product Dimensions

121 x 75 x 26 mm
