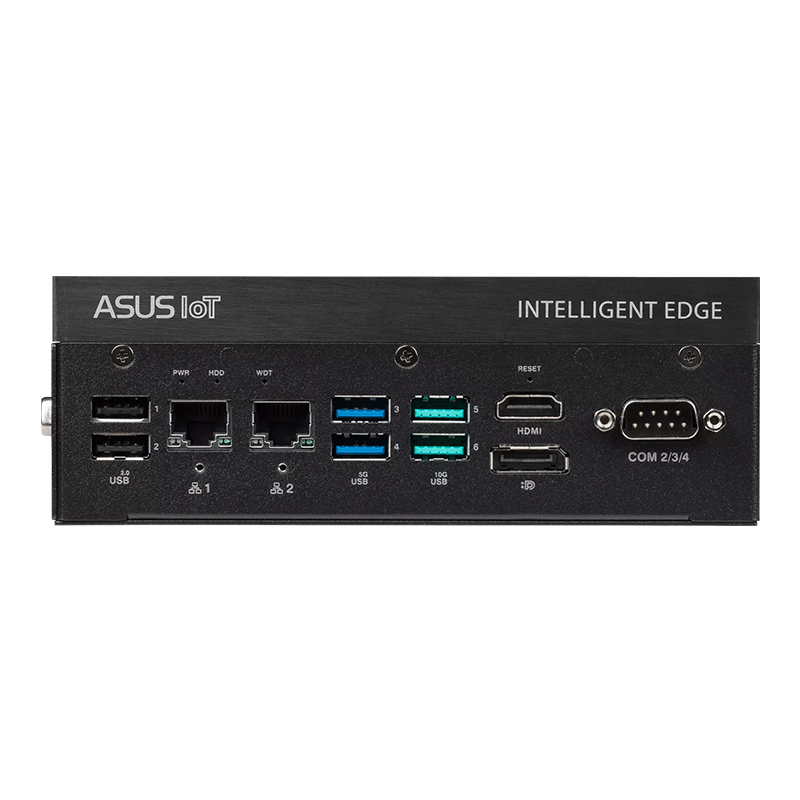

Asus PE1000S Intel Celeron J6412 Fanless DIN-Rail Edge Computer (PE1000S-J6412-DUS)

Memory

1 x SO-DIMM, DDR4 supports up to 3200 MHz, max 32GB

Display output

1 x HDMI 1.4b, supports up to 4096 x 2160 @ 30 Hz

1 x DP 1.2a, supports up to 4096 x 2160 @ 60 Hz

Ethernet

2 x 2.5GbE, RJ45 (lntel®i226-IT)

USB

2 x USB 3.2 Gen 2 (10Gbps)

2 x USB 3.2 Gen 1(5Gbps)

2 x USB 2.0

Storage

1 x 2.5” HDD/SSD

1 x M.2 2280 M key socket (PCIe x2/ SATA)

Expansion Slot

1 x M.2 2230 E key socket  (PCIe x1/   USB2.0)

1 x M.2 3042/3052 B key socket with nano-SIM slot (USB 3.2 Gen1/ USB 2.0)

Power

9 to 36 V DC-in, 3-pin terminal block (GND, V+, Remote)

Mounting

Din Rail

Dimension (WxDxH)

56 x 110.2 x 160mm

Weight

1.017kg

Operating Temperature

-25 ~ 70° C

Storage Temperature

-40 ~ 85° C

Certification

FCC

ISED

CE

UKCA

BSMI

CB

CCC

Vibration

Operating: MIL-STD 810H Method 514.8, Category 4

5 Grms, 5-500 Hz, 3 Axes

Shock

Operating: MIL-STD 810H Method 516.8, Procedure I, Table 516.6-ll; 40 G 11ms

OS

Windows® 10 IoT Enterprise (64-bit) / Linux by Project support
