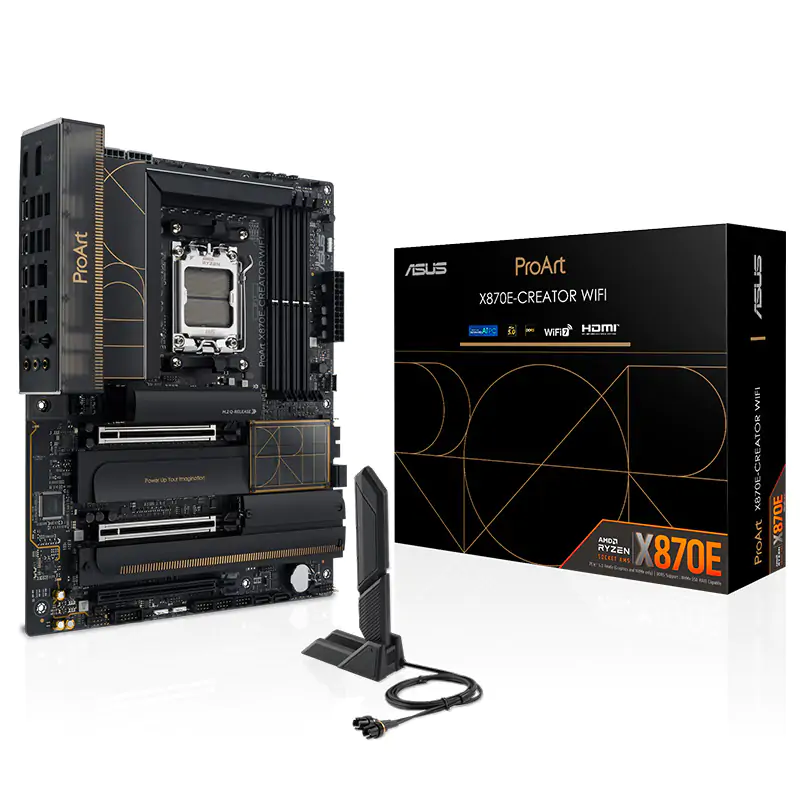

Asus ProArt X870E-Creator WiFi AM5 ATX Motherboard (PROART X870E-CREATOR WIFI)

Asus ProArt X870E-Creator WiFi AM5 ATX Motherboard (PROART X870E-CREATOR WIFI)
  • AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-8
  • AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-3
  • AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-4
  • AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-5
  • AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-6
$999.0
Was: $1,049.0  WAS Tips    Save $50.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 22hrs and 48mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Asus ProArt X870E-Creator WiFi AM5 ATX Motherboard (PROART X870E-CREATOR WIFI)
  • Model Number:
    PROART X870E-CREATOR WIFI
  • Brand:
  • Warranty Period:
    3 Year

Description

AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-1
AMD-AM5-Asus-ProArt-X870E-Creator-WiFi-AM5-ATX-Motherboard-PROART-X870E-CREATOR-WIFI-2


SPECIFICATIONS:

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 192GB, DDR5

Supports up to

8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

8000+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x HDMITM port**

2 x USB4ÂŽ (40Gbps) ports support USB Type-CÂŽ display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**** Output at USB4_EC1 and USB4_EC2, each requires a USB-CÂŽ to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table on the support site   (https://www.asus.com/support/FAQ/1037507/).

** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.

- To ensure compatibility of the device installed, please refer to

https://www.asus.com/support/ for the list of supported  peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

AMD X870E Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000series CPU.

** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

Ethernet

1 x MarvellÂŽ AQtion 10Gb Ethernet

1 x IntelÂŽ 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

BluetoothÂŽ v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The BluetoothÂŽ version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 11 ports)

2 x USB4ÂŽ (40Gbps) port(s) (2 x USB Type-CÂŽ)

1 x USB 20Gbps port(s) (1 x USB Type-CÂŽ)

7 x USB 10Gbps port(s) (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector (supports USB Type-CÂŽ with up to 30W PD/QC4+)**

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

"* USB Type-CÂŽ power delivery output: max. 5V/3.0A"

** USB Type-CÂŽ power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit

* Due to limitations in HDA bandwidth,

32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB4ÂŽ (40Gbps) port(s) (2 x USB Type-CÂŽ)

1 x USB 20Gbps port (1 x USB Type-CÂŽ)

7 x USB 10Gbps ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

1 x DisplayPort (Input only)

1 x HDMITM port

1 x Wi-Fi Module

1 x MarvellÂŽ AQtion 10Gb Ethernet

1 x IntelÂŽ 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-CÂŽ with up to 30W PD/QC4+)

1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Chassis Intrusion header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release Slim (with PCIe SafeSlot)

- Q-Antenna

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsinks

- VRM heatsink design ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- Addressable Gen 2 headers

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Front Panel USB 20Gbps with Quick Charge 4+ Support

- Support: up to 30W fast charging and USB Wattage Watcher

- Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A

- Compatible with PD3.0

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 with AI Cooling II

- Power Saving

ASUS DriverHub

ASUS GlideX

USB Wattage Watcher

TurboV Core

ASUS CPU-Z

ProArt Creator Hub

CreationFirst

Adobe Creative Cloud (Free Trial)

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

Remote Management Features

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x DisplayPort cable

4 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Q-connector

1 x M.2 Q-Latch package

1 x M.2 Q-Latch Q-Slide package for M.2 backplate

2 x Rubber Packages for M.2

1 x ProArt ruler

Documentation

1 x Quick start guide

1 x ACC Express Activation Key Card

Operating System

WindowsÂŽ 11

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
