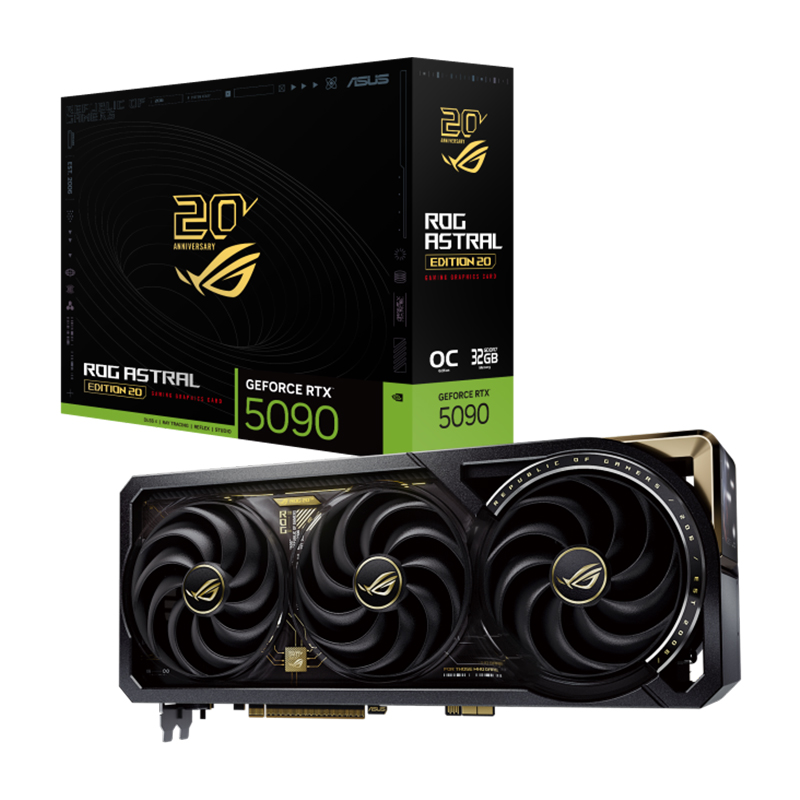

Asus ROG Astral GeForce RTX 5090 Edition 20 32GB Graphics Card (ROG-ASTRAL-RTX5090-P32G-EDITION20)

AI Performance

3352 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

32GB GDDR7

Engine Clock

OC mode: 2760 MHz

Default mode: 2730 MHz(Boost clock)

CUDA Core

21760

Memory Speed

28 Gbps

Memory Interface

512-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink / Crossfire Support

No

Accessories

1 x Detachable AMOLED Display

1 x Detachable Glass Backplate

1 x Detachable GC-HPWR Adapter

1 x ROG Edition 20 Graphics Card Holder

1 x ROG Velcro Hook & Loop

1 x ROG Magnet

1 x ROG Graphics Card Keycap

1 x ROG PCB Ruler

1 x ROG Edition 20 Thank You Card

1 x ROG Edition 20 Sticker

1 x ROG Edition 20 Collective Coin

1 x Adapter Cable (1 to 4)

1 x USB Adapter Cable (Type-A to Type-C)

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

361 x 139.3 x 93.9 mm

14.21 x 5.48 x 3.7 inches

Recommended PSU

1200W+

Power Connectors

1 x 16-pin, Graphics card high-power (GC-HPWR) gold finger

Slot

4.7 slot

AURA SYNC

ARGB

Hidden-connector (BTF)

With Graphics card high-power gold finger

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system   configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Maximum Display Support is specifically applied to simultaneous display situation.

* The Type-C port does not transmit a video signal. It is only used to provide power to the AMOLED display on the graphics card.
