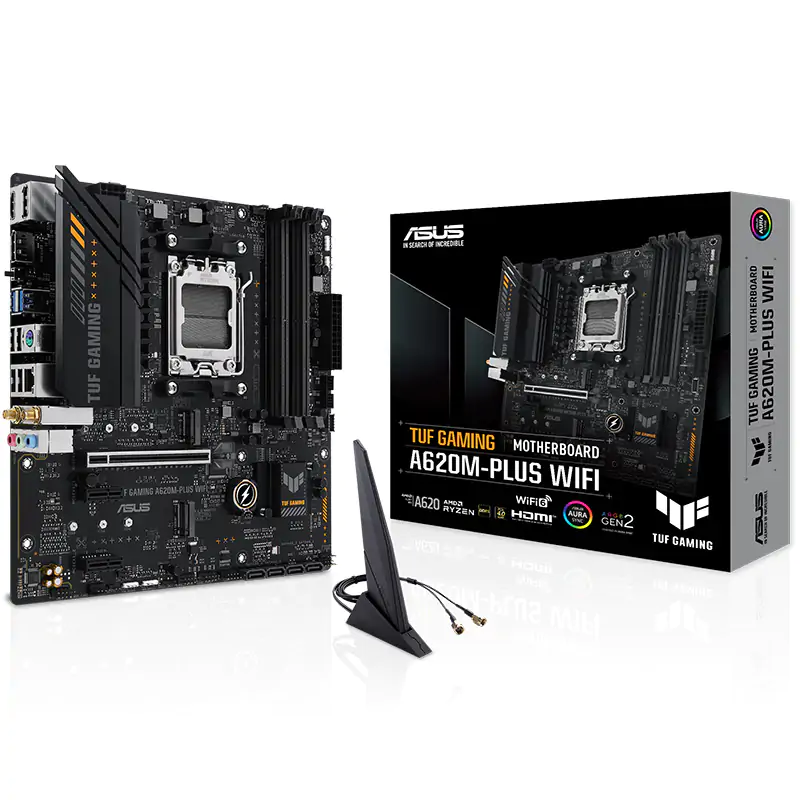

Asus TUF Gaming A620M-PLUS WiFi AM5 mATX Motherboard (TUF GAMING A620M-PLUS WIFI)

Asus TUF Gaming A620M-PLUS WiFi AM5 mATX Motherboard (TUF GAMING A620M-PLUS WIFI)
  • AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-3
  • AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-5
  • AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-6
  • AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-4
  • AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-7
$239.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 17hrs and 10mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Asus TUF Gaming A620M-PLUS WiFi AM5 mATX Motherboard (TUF GAMING A620M-PLUS WIFI)
  • Model Number:
    TUF GAMING A620M-PLUS WIFI
  • Brand:
  • Manufacturer Warranty:
    3 Year

Description

AMD-AM5-Asus-TUF-Gaming-A620M-PLUS-WiFi-AM5-mATX-Motherboard-1







SPECIFICATIONS:

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD A620 Chipset

Memory

4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

2 x DisplayPort**

1 x HDMI™ port***

* Graphics specifications may vary between CPU types. Please refer to   AMD CPU specifications.

** Support max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot

AMD A620 Chipset

2 x PCIe 3.0 x1 slots

* Please check the PCIe bifurcation table on the support site   (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of  supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620 Chipset

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6

1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth® v5.3

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

2 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1   ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

TUF GAMING CPU-Z

MyASUS

Norton 360 for Gamers (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x I/O Shield

1 x TUF Gaming sticker

1 x Screw package for M.2 SSD

Documentation

1 x TUF Certification card

1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

Micro-ATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
