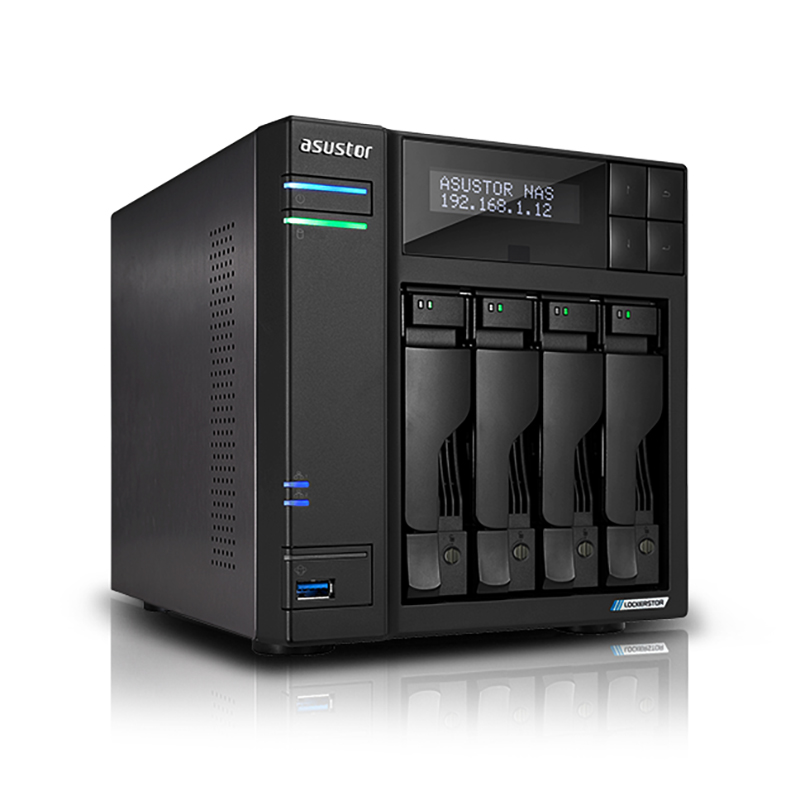

Asustor Lockerstor 4 Gen2+ 4 Bay Intel Celeron N5105 2.0GHz 4GB DDR4 RAM NAS (AS6704T V2)

CPU Model

Intel Celeron N5105

CPU Architecture

x64 64-bit

CPU Frequency

Quad-Core 2.0GHz (burst up 2.90 GHz)

MEMORY

Memory

4GB SO-DIMM DDR4

Memory Module Pre-installed

4GB (1 x 4GB)

Total Memory Slots

2

Memory Expandable up to

16GB (2 x 8GB)

Support mixed capacity

Flash Memory

8GB eMMC

STORAGE

Drive Bays

4

M.2 Drive Slots

4

Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe

M.2 PCIe Interface

PCIe 3.0 x1

Maximum Drive Bays with Expansion Unit

12

Supports Hot Swappable Drives

✓

EXTERNAL PORTS

Expansion

2 x USB 3.2 Gen 2 ( 10Gbps ) Type-A

1 x USB 2.0 Type-A

Network

2 x 5 Gigabit Ethernet (5G/2.5G/1G/100M)

PCIe Expansion Slots

1 x for optional expansion 10 GbE card

Multimedia Output

1 x HDMI 2.0b

OTHERS

System Fan

1 x 120mm

LCD Panel

✓

Infrared Receiver

✓

Power Supply Unit / Adapter

90W   x1

Input Power Voltage

100V to 240V AC

Certification

FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

OPERATION

Power Consumption

35 W (Operation);
17.3 W (Disk Hibernation);
0.88 W (Sleep Mode)

Noise Level

17.6dB (HDD idle)

Operation Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-20°C~70°C (-4°F~158°F)

Humidity

5% to 95% RH

SIZE AND WEIGHT

Size

185.5(H) x 170(W) x 230(D) mm

Package Size: 324(H) x300(W) x240(D) mm

Weight

2.94 kg / 6.48 lb

Package Weight: 4.36 kg / 9.64 lbs

OTHERS

Package Contents

AS6704T v2 Unit x1

Quick Installation Guide

AC Power Cord x1

AC Power Adapter x1

RJ-45 LAN Cable(Cat 5e) x2

Flat Head Screw (for 3.5" HDD) x16

Flat Head Screw (for 2.5" HDD) x16
