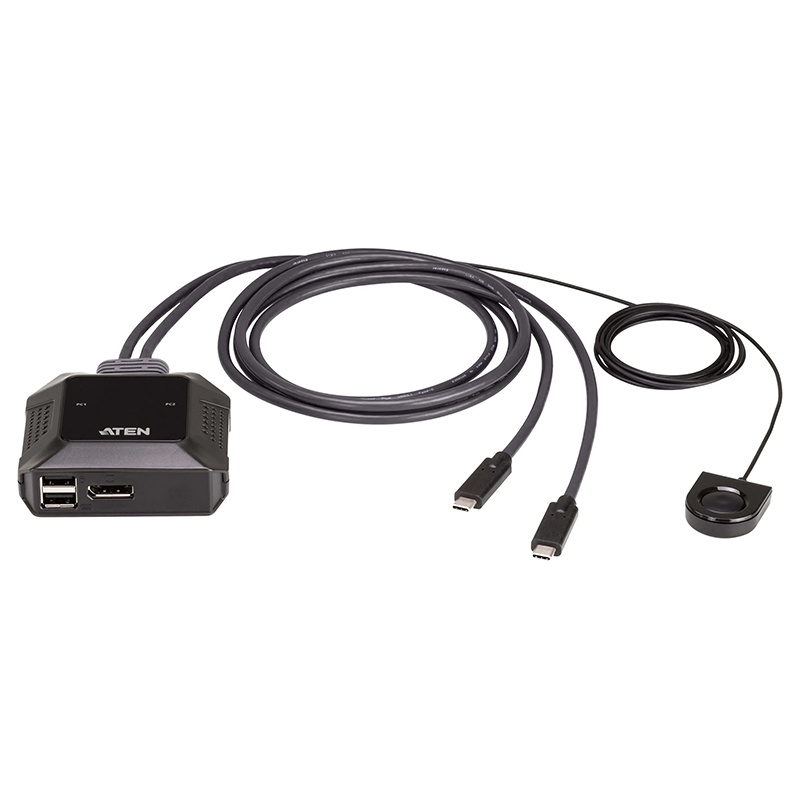

Aten 2-Port 4K DisplayPort USB-C Cable KVM Switch with Remote Port Selector (US3312-AT)

Computer Connections

2

Port Selection

Remote Port Selector

CONNECTORS

Console Ports

1 x   DisplayPort Female
2 x USB Type A Female

KVM (Computer) Ports

CPU1:
1 x USB Type C Male
CPU2:
1 x USB Type C Male

LEDS

KVM Port (On Line /Selected)

2 (White)

CABLE LENGTH

KVM

2 x 1.2 m

Remote Port Selector

1.8 m

EMULATION

Keyboard / Mouse

N/A

Video

4096 x 2160 @ 60Hz

System Requirements

Windows USB-C enabled computer:
- Windows® 10 (32-bit / 64-bit) and above
- With Intel 7th-Generation Core Processor (Kaby -Lake with HD 6XX series integrated graphics) and above.
- For video output to work through a USB-C port, it must support DP Alt Mode.
- Thunderbolt™ 3 Compatible

Mac USB-C enabled computer:
- MacBook 2015 and later
- MacBook Pro 2016 and later
- Mac OS X 10.12 and above

USB-C enabled Smartphone / Tablet:
- Android 8.0 and later / iPadOS 13.1
- For video output to work through a USB-C port, it must support DP Alt Mode.

Power Consumption

DC5V:0.74W:8BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0-80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Plastic

Weight

0.19 kg ( 0.42 lb )

Dimensions (L x W x H)

8.34 x 8.42 x 2.99 cm
(3.28 x 3.31 x 1.18 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
