VIDEO INPUT |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100 Ω |
Max. Distance | 5 m |
VIDEO OUTPUT |
Interfaces | 1 x HDMI Type A Female (Black) |
Impedance | 100 Ω |
Max. Distance | 5 m |
VIDEO |
Max. Data Rate | 18Gbps (6Gbps per lane) |
Max. Pixel Clock | 600 MHz |
Compliance | HDMI (3D, Deep Color, 4K/60Hz); 4K HDR
HDCP2.2/2.3 Compatible
Consumer Electronics Control (CEC)*
*The CEC signals are only bypassed from the transmitter unit to the receiver unit and do not support local output. |
Max. Resolution | 4096 x 2160 @ 60Hz (4:4:4)
3840 x 2160 @ 60Hz (4:4:4) |
Max. Resolutions / Distance | Up to 4K x 2K @ 60Hz (4:4:4) @40m (HDBaseT3 Certified Cat 6a U/FTP cable / ATEN’s tailor-made HDBaseT cable)
|
AUDIO |
Input | 1 x HDMI Type A Female (Black)
1 x Stereo Audio ( mini stereo Jack female , Green) |
Output | 1 x HDMI Type A Female (Black)
1 x Stereo Audio ( mini stereo Jack female , Green) |
CONNECTORS |
Unit To Unit | 1 x RJ-45 Female (HDBaseT) |
Power | 1 x DC Jack (Black) with locking
1 x RJ-45 Female, POH PD & PSE supported |
CONTROL |
RS-232 Channel | Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
|
IR Channel | 1 x Mini Stereo Jack Female, (Bi-directional, Black)
30K ~56KHz full range transmission |
USB Channel | 1 x USB2.0 Type B Female (White, Host)
2 x USB2.0 Type A Female (White, Device)
Transmission data bandwidth: Up to 300Mbps |
Power Consumption | DC12V:6.01W:92BTU/h (Tx)
DC12V:7.09W:118BTU/h (Rx)
Note:
â—Ź The measurement in Watts indicates the typical power consumption of the device with no external loading.
â—Ź The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
SWITCHES |

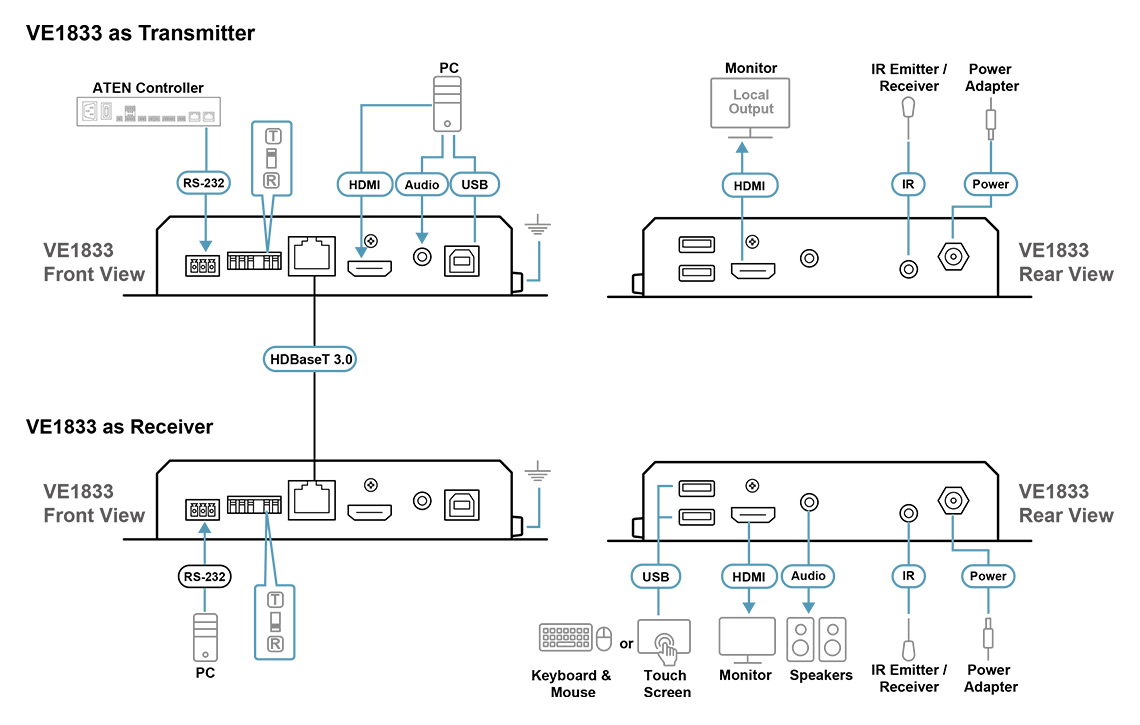

Selection | 1 x Slide Switch - T (Be a Transmitter) / R (Be a Receiver) selection |
Mode Selection | 1 x Slide Switch - HDMI Audio embed or De-embed ON/OFF selection
1 x Slide Switch - POH PD or PSE selection
1 x Slide Switch - RS232 Command or Bypass mode selection |
Firmware Upgrade | 1 x Slide Switch - ON/OFF |
LEDS |
Power | TX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange)
RX: 1 x DC in Power supplied (Green) & 1 x POH Power supplied (Orange)
NOTE: The TX or RX LED lights to indicate which role the VE1833 is set to by DC Power or POH. |
Link | 1 x TX Link status (Transmitter, Yellow Green)
1 x RX Link status (Receiver, Yellow Green) |
Video Output | 1 x RX HDMI OUT status (Receiver, Orange) |
Video Input | 1 x Tx HDMI IN status (Transmitter, Orange) |
ENVIRONMENTAL |
Operating Temperature | 0 - 40°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
PHYSICAL PROPERTIES |
Housing | Metal |
Weight | 0.64 kg ( 1.41 lb ) |
Dimensions (L x W x H) with bracket | 16.94 x 14.69 x 3.00 cm
(6.67 x 5.78 x 1.18 in.) |
Dimensions (L x W x H) without bracket | 16.60 x 12.49 x 2.90 cm
(6.54 x 4.92 x 1.14 in.) |
OTHERS |

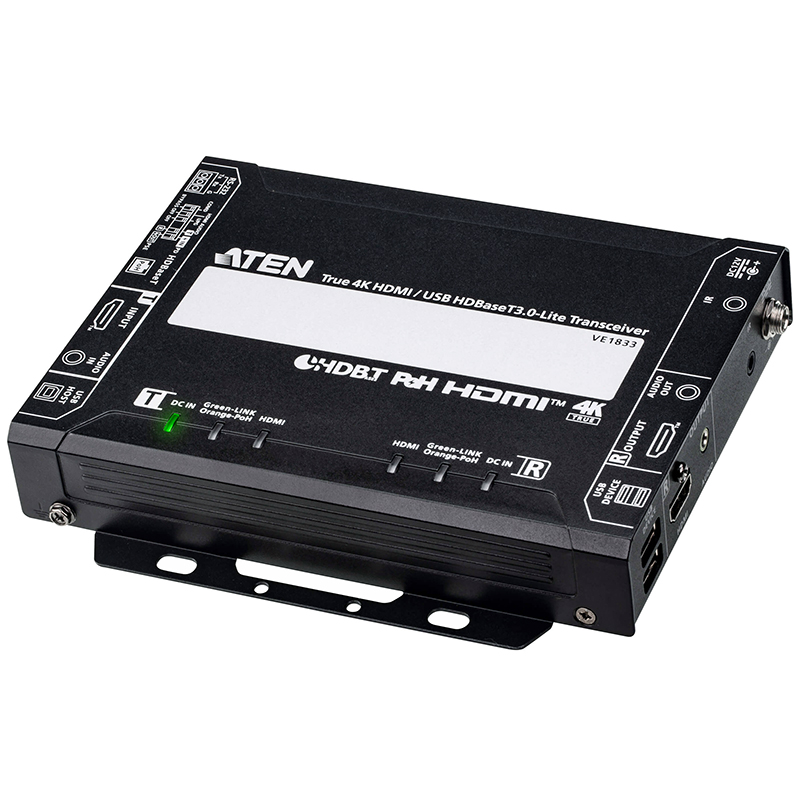

Package Contents | 1 x VE1833 True 4K HDMI / USB HDBaseT 3.0-Lite Transceiver with PoH 1 x power adapter and power cord 1 x RS-232 terminal block 1 x user instructions |
