CONNECTORS

Console Ports

4 x USB Type A Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

4 x USB Type A Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

KVM Ports

1 x USB Type B Female (White)
1 x DisplayPort/HDMI Female (Black)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)

N/A

RS-232

1 x DB-9 Female (Black)

1 x DB-9 Male (Black)

Power

1 x DC Jack (Black)

1 x DC Jack (Black)

Unit To Unit

1 x bi-directional SFP+ (LC)

1 x bi-directional SFP+ (LC)

VIDEO

Max. Resolution

Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x   2160 @ 60Hz (4:4:4)

Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x   2160 @ 60Hz (4:4:4)

LEDS

Video Input

1 (Orange)

N/A

Console Status

3 (Orange)

3 (Orange)

Video Output

N/A

1 (Orange)

Link

1 (Orange)

1 (Orange)

Power

1 (Green)

1 (Green)

SWITCHES

Operation Mode Selection

1 x Pushbutton

1 x Pushbutton

Wakeup PC

N/A

1 x Pushbutton

FIBER OPTICS

Operating Distance

10 km with Single Mode (SM) fiber (*Note)

10 km with Single Mode (SM) fiber (*Note)

Data Rate

Single fiber: 10 Gbps

Single fiber: 10 Gbps

Power Consumption

DC12V:11.89W:86BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

DC12V:9.49W:81BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0–40°C

0–40°C

Storage Temperature

-20–60°C

-20–60°C

Humidity

0–80% RH, Non-condensing

0–80% RH, Non-condensing

PHYSICAL PROPERTIES

Housing

Metal

Metal

Weight

0.85 kg ( 1.87 lb )

0.84 kg ( 1.85 lb )

Dimensions (L x W x H)

17.82 x 15.62 x 2.88 cm
(7.02 x 6.15 x 1.13 in.)

17.82 x 15.62 x 2.88 cm
(7.02 x 6.15 x 1.13 in.)

Note

1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion,   environmental factors, and kinks.
2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications.
3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.

1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
2. It is recommended that you use Single Mode fibers that conforms to IEC 60793- 2-50 B1.1 or ITU-T G.652.B specifications.
3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.

OTHERS

Package Contents

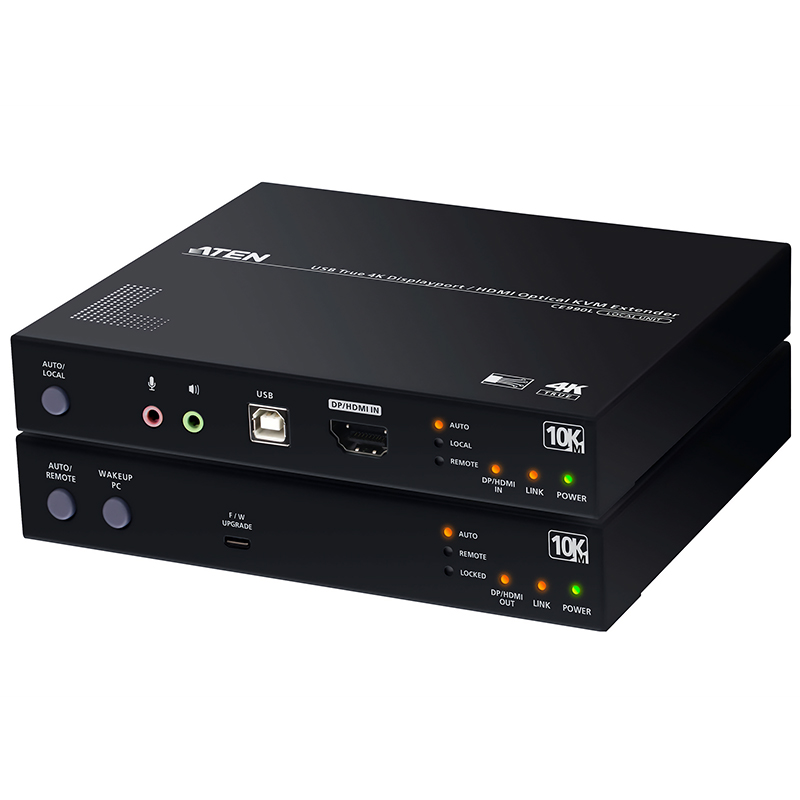

1x CE990 USB True 4K DisplayPort / HDMI Optical KVM Extender (Local Unit)

1x CE990 USB True 4K DisplayPort / HDMI Optical KVM Extender (Remote Unit)

1x DisplayPort cable

1x HDMI cable

1x microphone cable

1x speaker cable

1x USB Type-A to USB Type-B cable

2x SFP modules

2x mounting kits

1x foot pad set (8 pcs)

2x power adapters and power cords

3x HDMI combo port cable locks

1x user instructions
