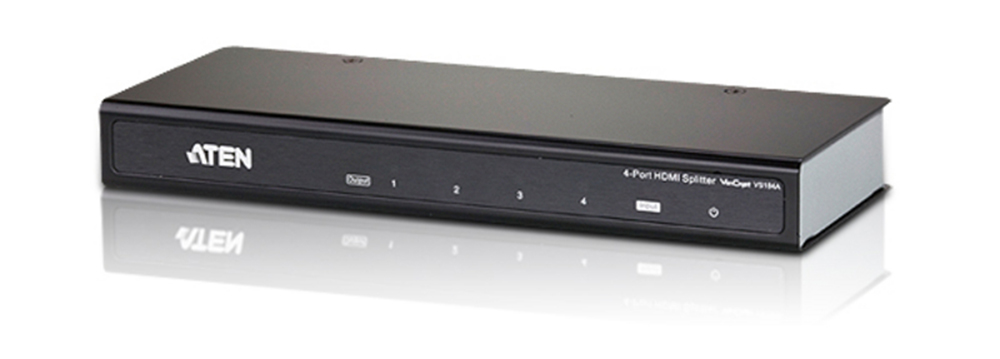

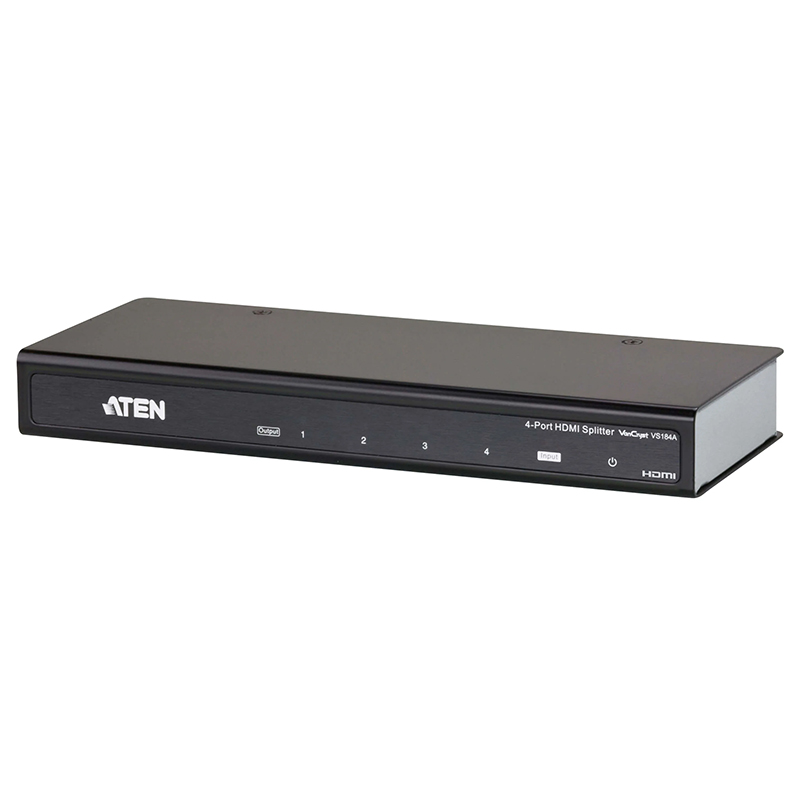

Aten VS184A-AT-U 4 Port 4K HDMI Splitter

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m @3840x2160@30Hz (4:4:4)

VIDEO OUTPUT

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15m @3840x2160@30Hz (4:4:4)

VIDEO

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Color, 4K);
HDCP Compatible

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz   (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

AUDIO

Input

1 x HDMI Type A Female (Black)

Output

4 x HDMI Type A Female (Black)

CONNECTORS

Power

1 x DC Jack

Power Consumption

DC5.3V:6.02W:28BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

ENVIRONMENTAL

Operating Temperature

0-50 °C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

Metal

Weight

0.47 kg ( 1.04 lb )

Dimensions (L x W x H)

20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

Carton Lot

20 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

OTHERS

Package Contents

1x VS184A 4-Port HDMI Splitter

1x Power Adapter

1x HDMI Cable(1.8 m)

1x User Instructions
