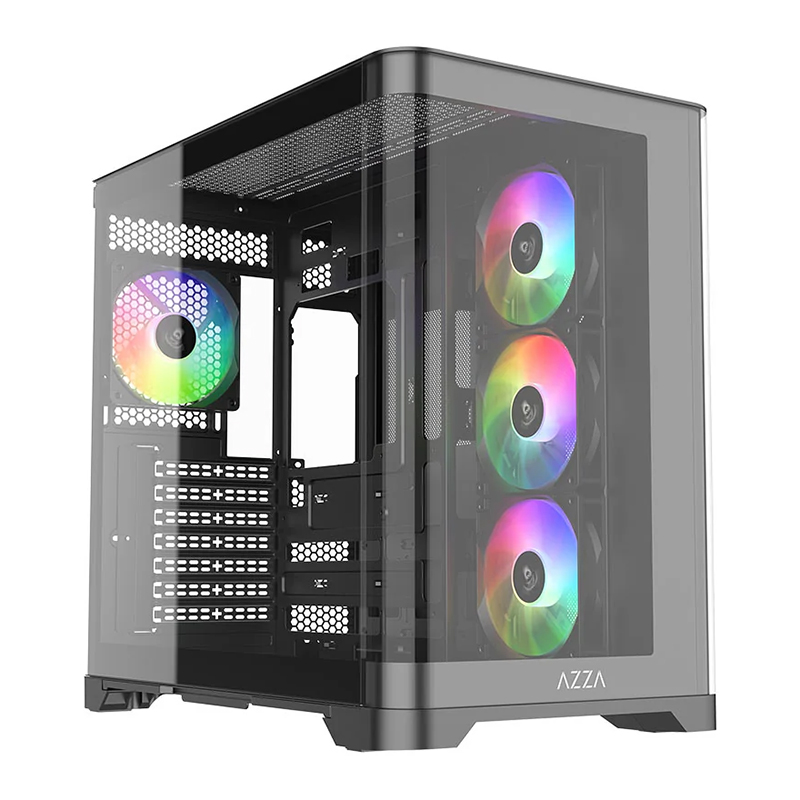

AZZA Orbit Dual ARGB Tempered Glass ATX Case (CSAZ-278B01B)

Type

ATX / Micro-ATX (Support Back-Connected Motherboard)

Color

Black

Front

Tempered glass panel(Hyperbolic glass)

Left

Tempered glass panel

Right

Metal

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.

All addressable RGB devices can syncwith the motherboard, allowing the   motherboard software to control lighting directly

COMPATIBILITY

Max CPU Cooler Height

UP to 158 mm

Max VGA Card Length

Up to 410 mm long video card

Motherboard Support

ATX、Micro ATX、ITX (Support Back-Connected Motherboard)

STORAGE & I/O

2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 1

Expansion Slots

7

Front I/O Ports

Power button

Reset button

LED button

Combo audio

USB 2.0 x1

USB 3.0 x 1

USB 3.0 Type C x 1

DIMENSION

Chassis Dimension (H*W*D)

440 x 278 x 456 mm / 17.32 × 10.94 × 17.95 inches

Weight

6.8 Kg / 15 lbs

COOLING & SUPPORT

Available Fan Ports

Top : 3x 12cm / 2x 14cm

MB Side : 3x 12cm / 2x 14cm(3x 120mm LFO-6512DR ARGB PWM Fan included)

Rear : 1x 12cm(1x 120mm LFO-6512D ARGB PWM Fan included)

Bottom : 3x 12cm / 2x 14cm

Water Cooling

Supports radiators up to 360mm on the mb side

Supports radiators up to 360 / 280mm in the Top

Dust Filters

Removable(magnetic) dustproof net on the top

Dustproof PVC net on bottom of chassis

Power Supply Support

ATX power supply
